| Quantity: | |
|---|---|
JFTCJ1900MTC
JF
General | |
CPU | Onboard Intel J1900 2.0GHz Quad Core Four Thread Max 2.41GHz(Turbo boost Technology) processor |
BIOS Manufacturer | American Megatrends Inc. |
Chipset | Intel Bay Trail-D |
Memory Memory Type | 1* 204-pin SODIMM Sockets for un-buffered DDR3/DDR3L(Low Voltage 1.35V)-1333/1600 SDRAM, Max 8GB |
Storage | 1* Serial SATA 6Gb/s connectors 1* Mini-SATA 3Gb/s connectors |
Operating System | Windows 7/Windows 8/Windows 10/Linux, Windows 7 English(OEM Cracked) default |
Network | 2*RTL8168/8111/8112 Gigabit Ethernet Controller Optional 300M WiFi with dual antennas |
Video | Intel(R) HD Graphics Graphics Base Frequency 688 MHz Graphics Max Dynamic Frequency 854 MHz support VGA and HDMI full screen HD playback |
I/O port | |

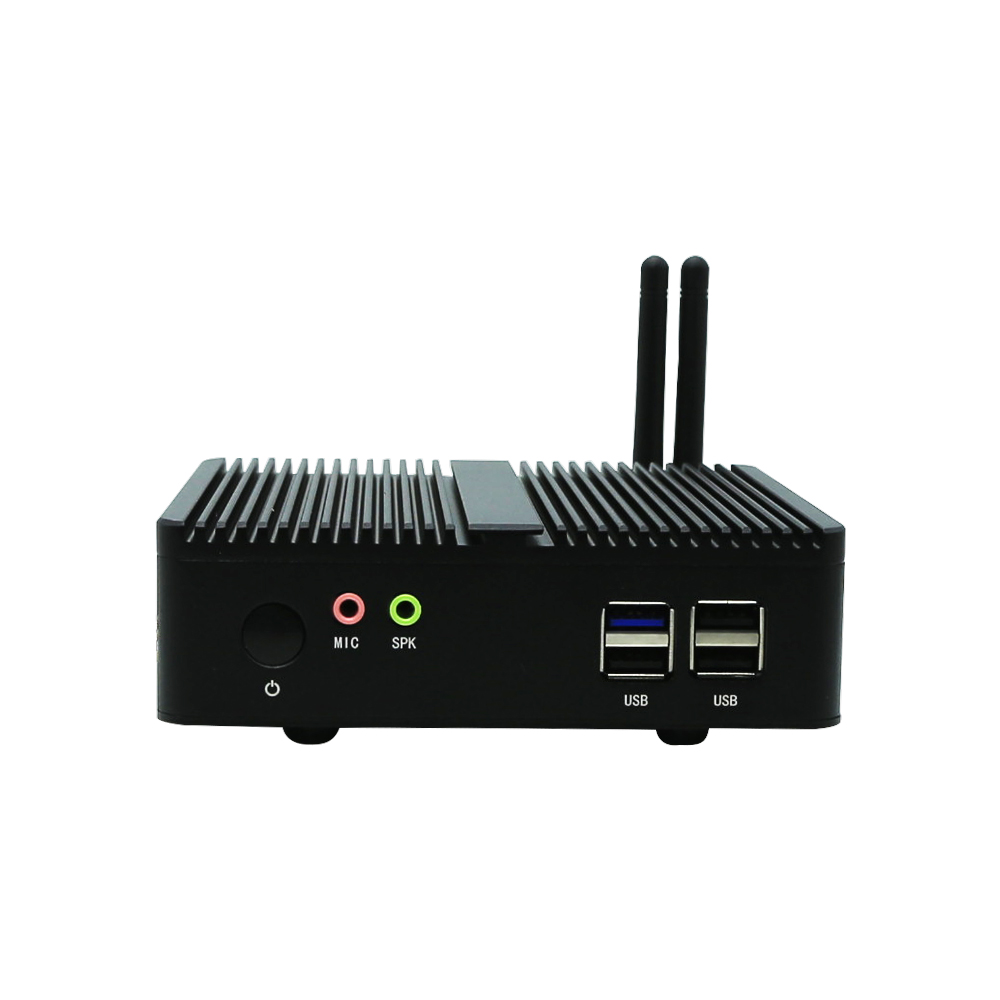

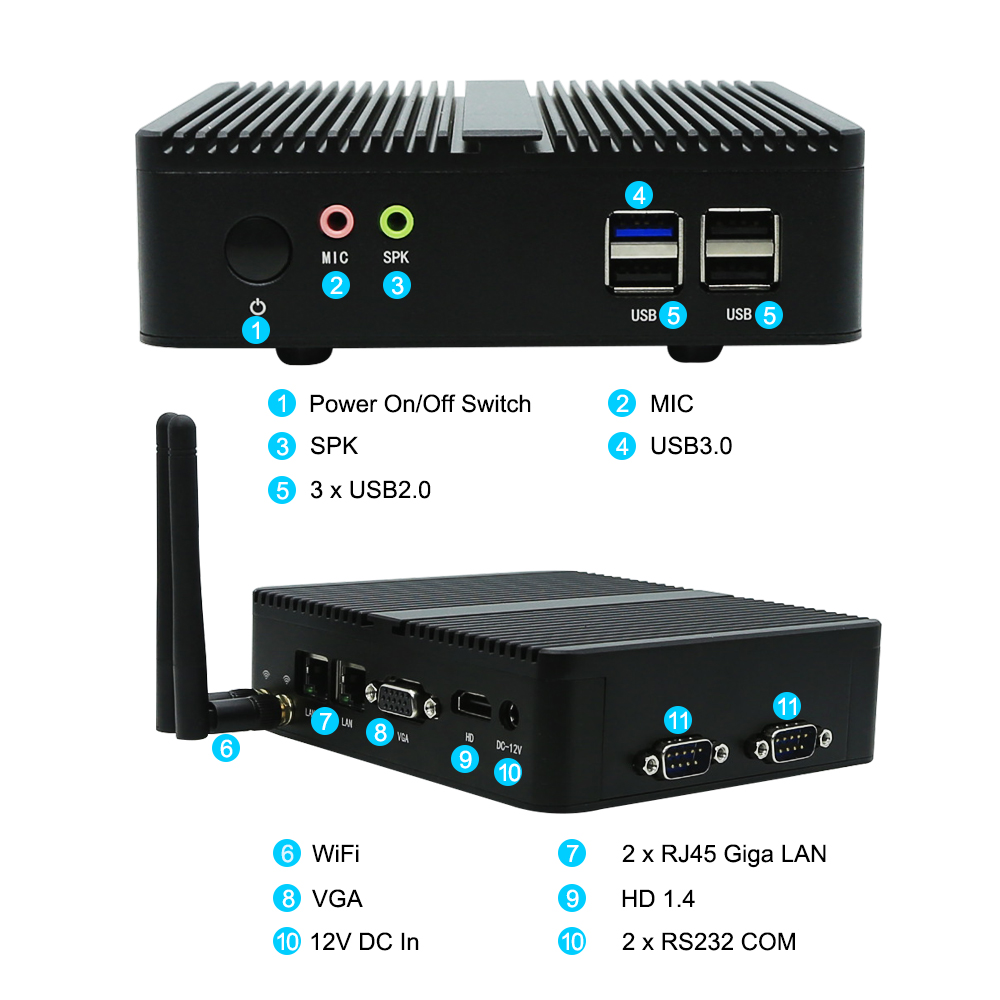

Front panel ports | 1* Power indicator and switch, 1*MIC, 1*SPK, 3*USB2.0, 1*USB3.0, |

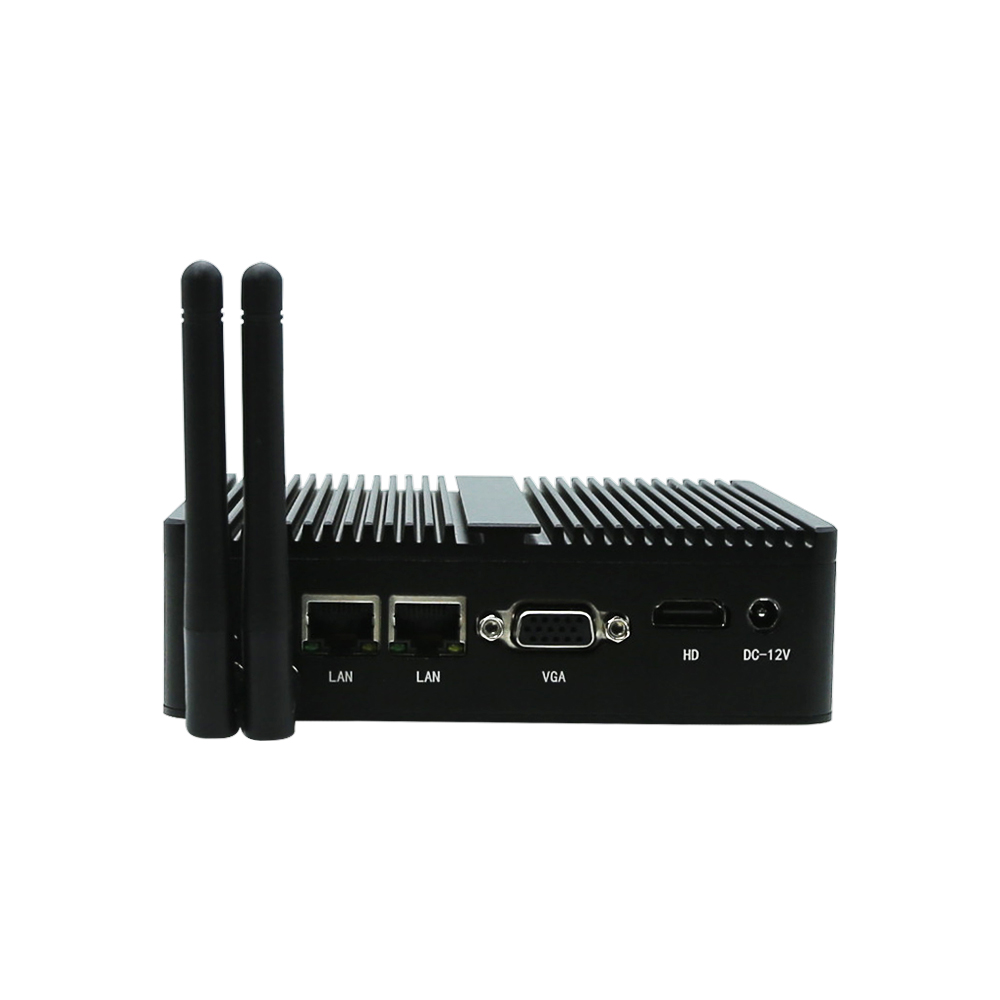

Backside ports | 1* DC IN, 1*HDMI, 1*VGA, 2*LAN port(RJ-45) |
Internal ports | 1*mini-PCIE port(m-SATA SSD, 3Gbps) 1*mini-PCIE port(WIFI/3G) |

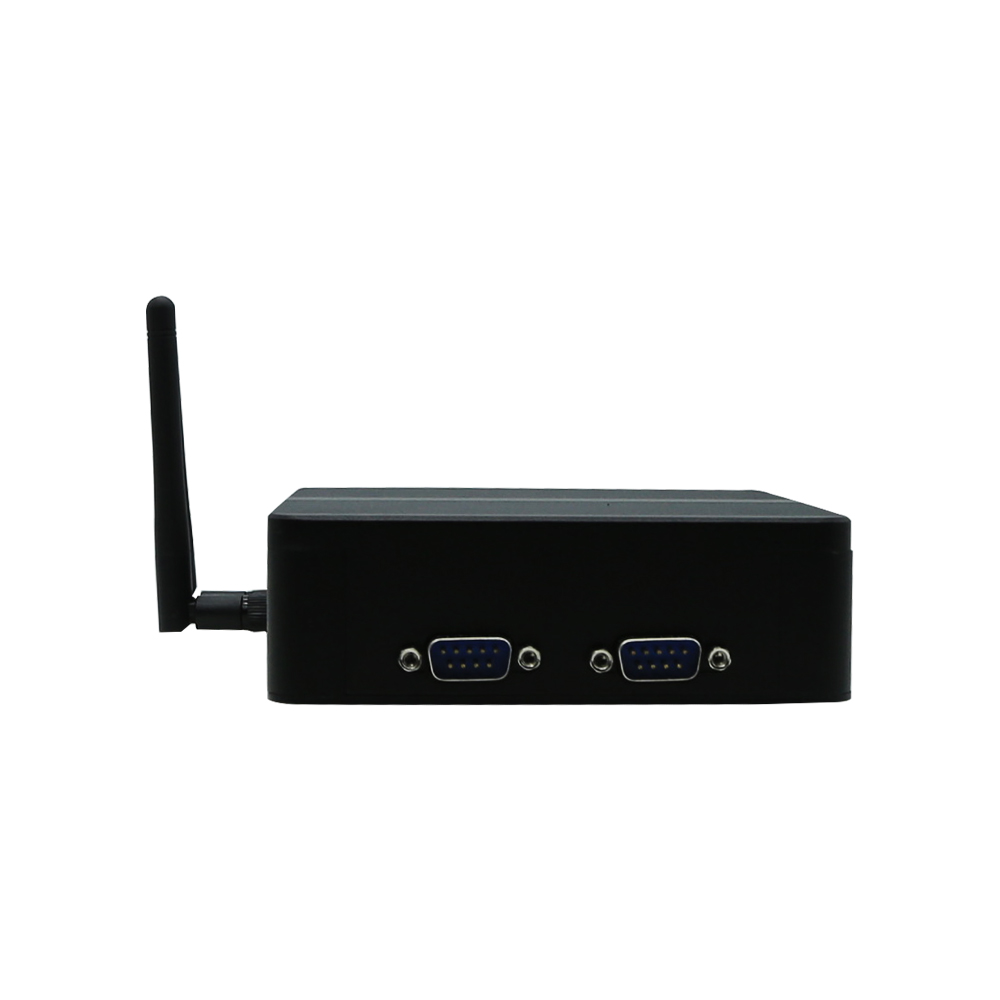

Other ports | 2* RS232 COM |
Power and Working Environment | |
Input | DC100-240V AC/50-60Hz |
Output | DC 12V/5A |
Operating Temperature | -10/60 Centigrade |
Storage Temperature | -20/+85 Centigrade |
Relative Humidity | 10%~90% (non-condensing) |
energy-saving | Support Energy-saving technology, Speedstep |
virtualization | Support Virtualization technology |
64 bit computing | Support 64 bit computing |
Product Dimension & Details | |
Size | 136*126*43MM |
Weight | 1.0kg |
Consumption | 12~16W |
Shell | All black aluminum alloy |
Package Content | Mini PC, Power Adapter, VESA Mount, Screws |
