JFTCN95TLN
JF
- DDR5 memory .
-Support five display :HDMI + Type-C+DP .
-Support 2*M.2 NGFF SATA +PCI E SSD.
-Low consumption TDP only 15W and can be mounted on the wall .
-Support Wake on Lan ,Auto power On, RTC and PXE.

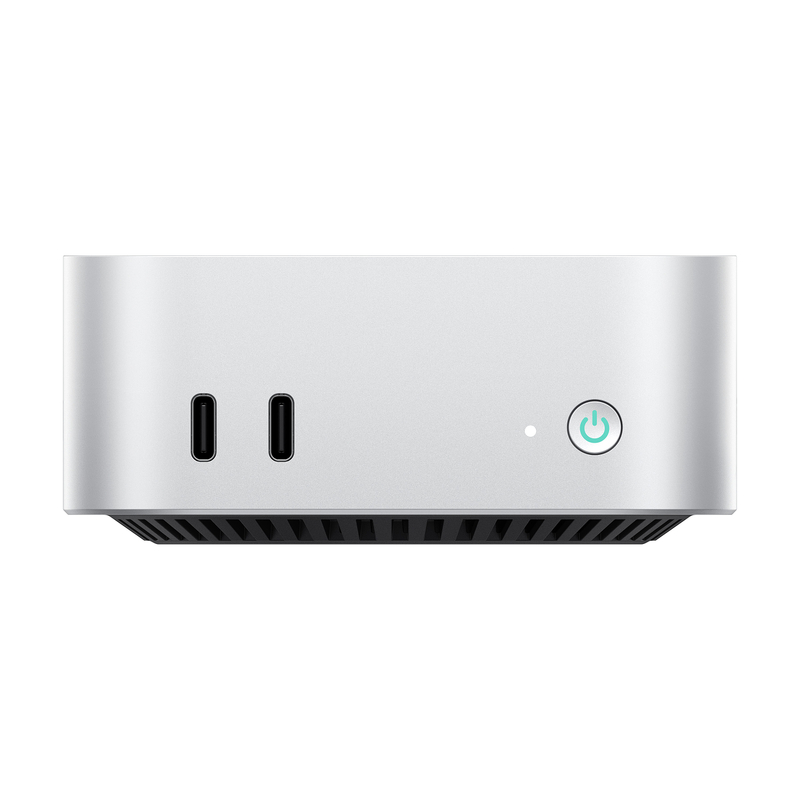

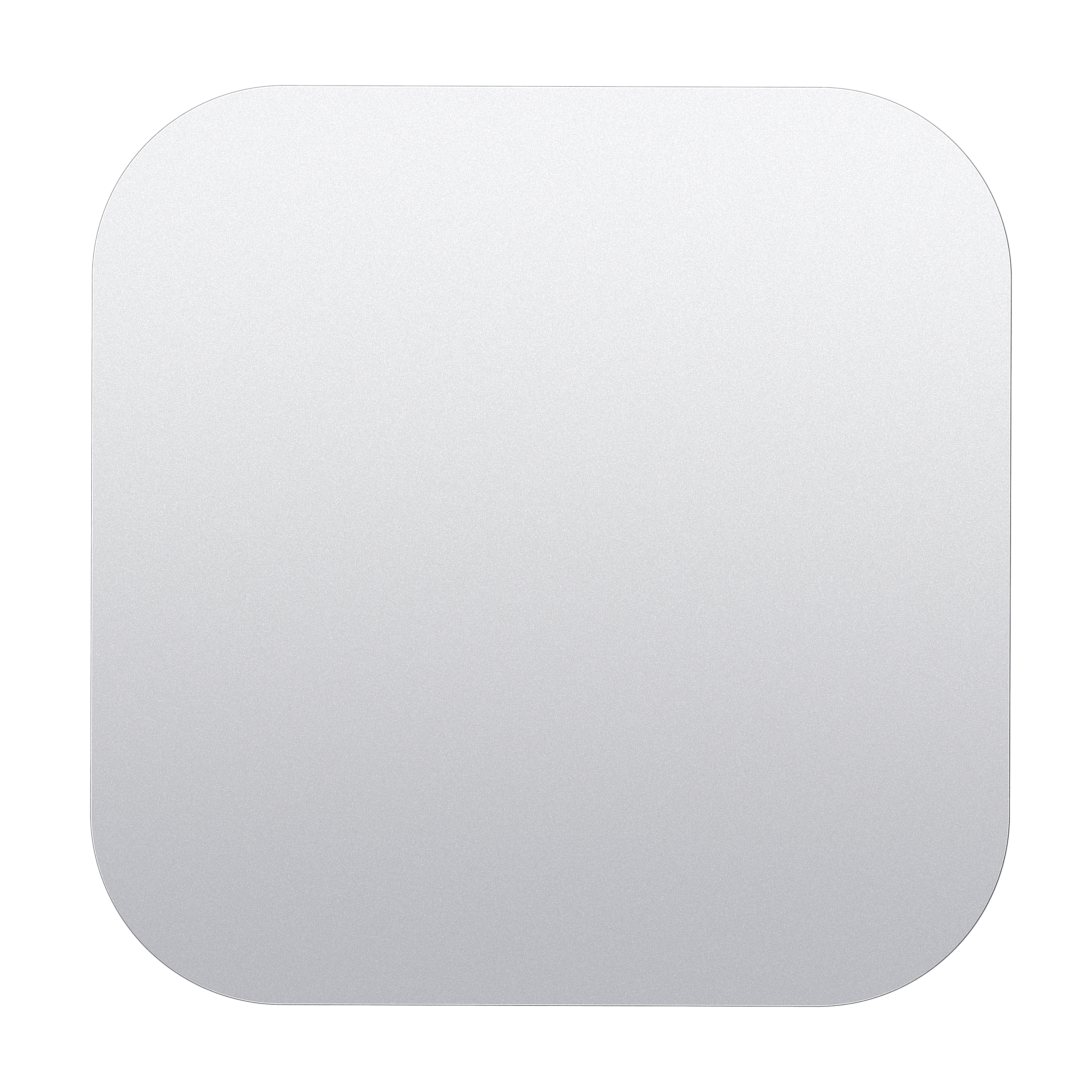

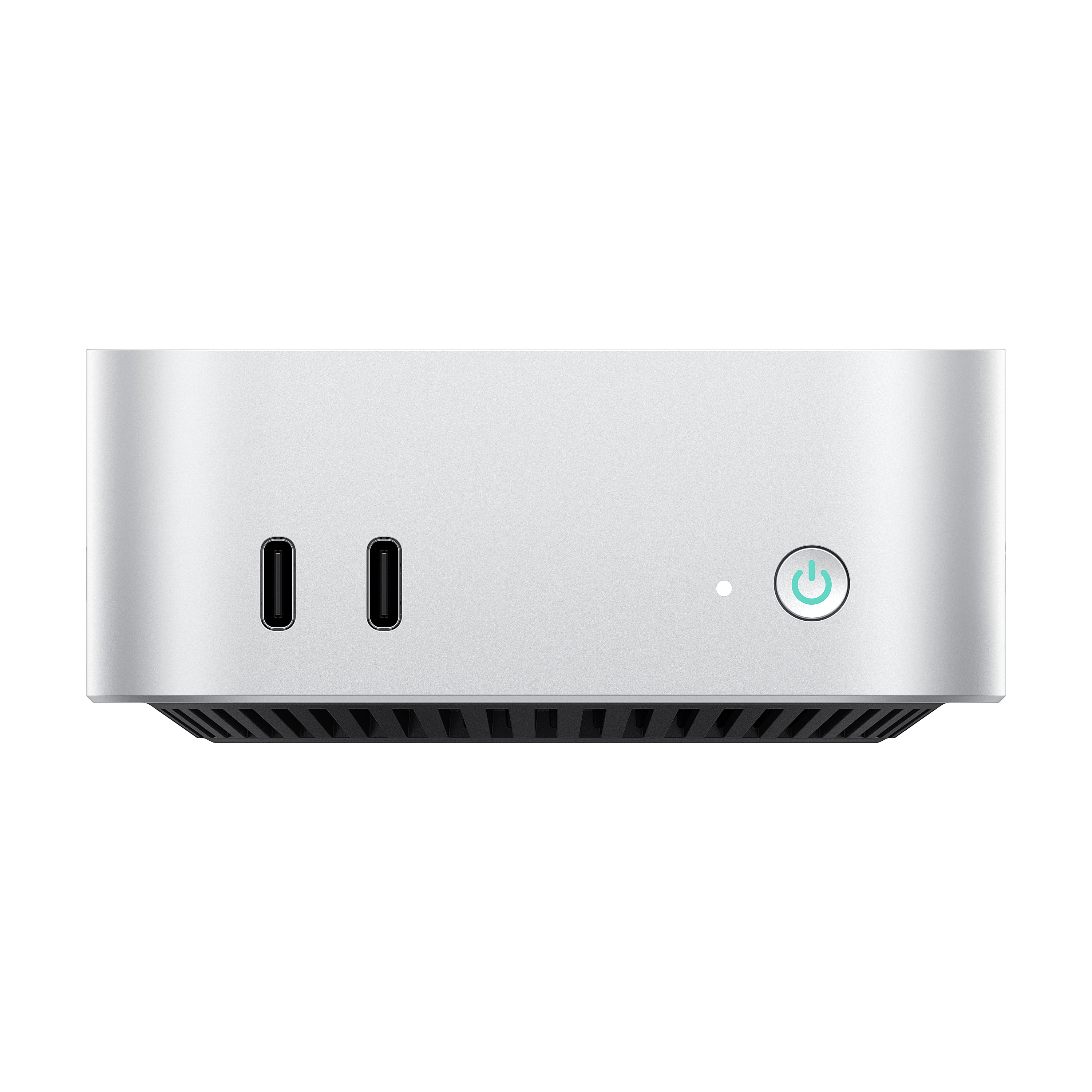

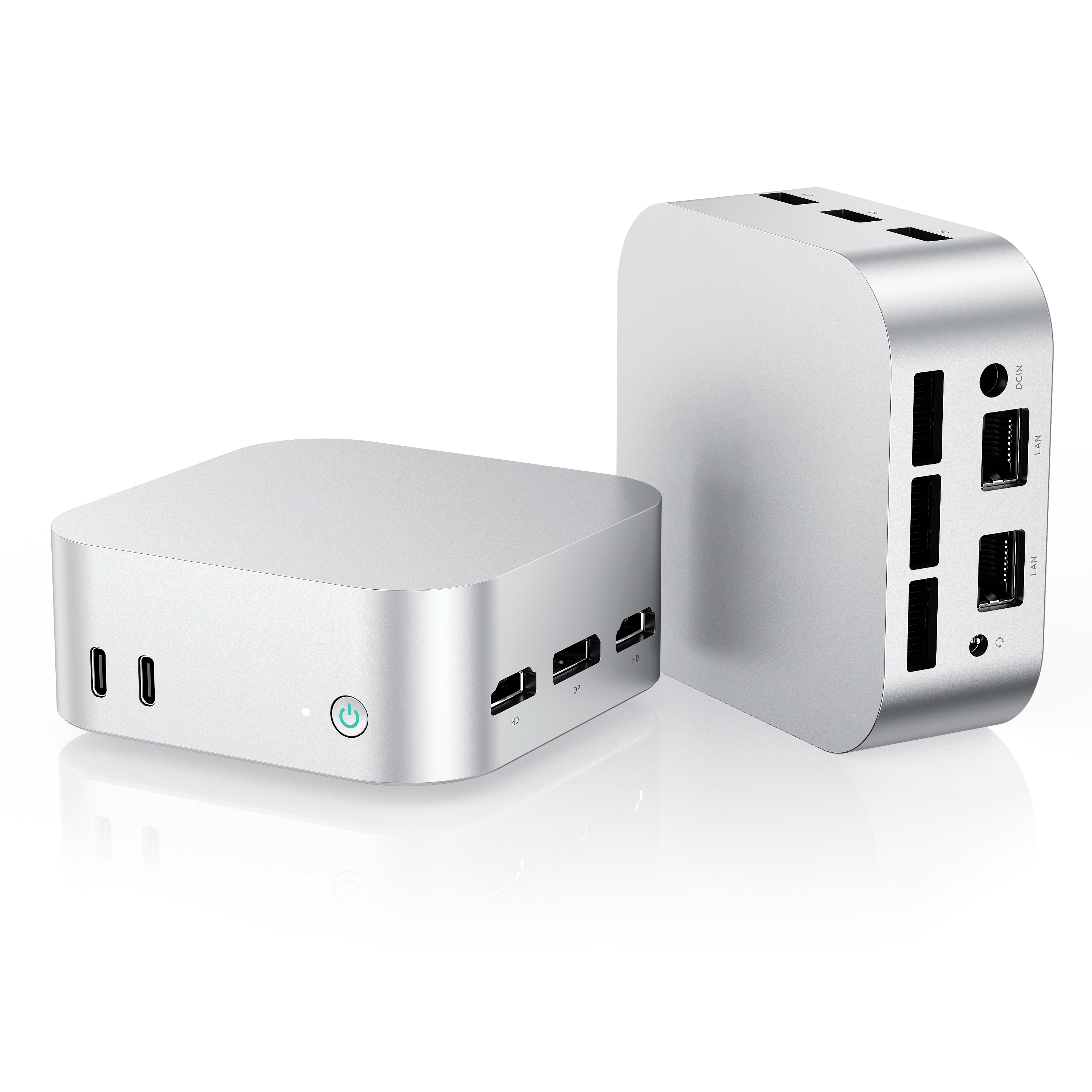

Product Appearance | |||
Description | |||
Product | Product Type | Mini PC | |
Dimension | 90mm*90mm*38.5mm | ||
Case Material | Plastic | ||
Net Weight | Net Weight 190g | ||
System Hardware Configuration | |||
Type | Spec | Description | |
CPU | Model | Intel® Processor Alder Lake-N100/N95 | |
Graphics | Model | Intel® UHD Graphics | |
Memory | Model | LPDDR5 4800Mhz | |
Capacity | 8G/12G/16G | ||
Storage | M.2 SSD SATA3 /Nvme (2242) | M.2 SATA/Nvme PCIE3.0 2242 Max 2TB | |
RTC | BIOS | Real-time Clock,Time Boot | |
Auto Power On | BIOS | Support auto power on after electrified | |
Wake On LAN | BIOS | Supported | |
TPM | CPU | Support TPM 2.0 | |
Peripheral interface | |||
Type | Spec | Description | QTY |

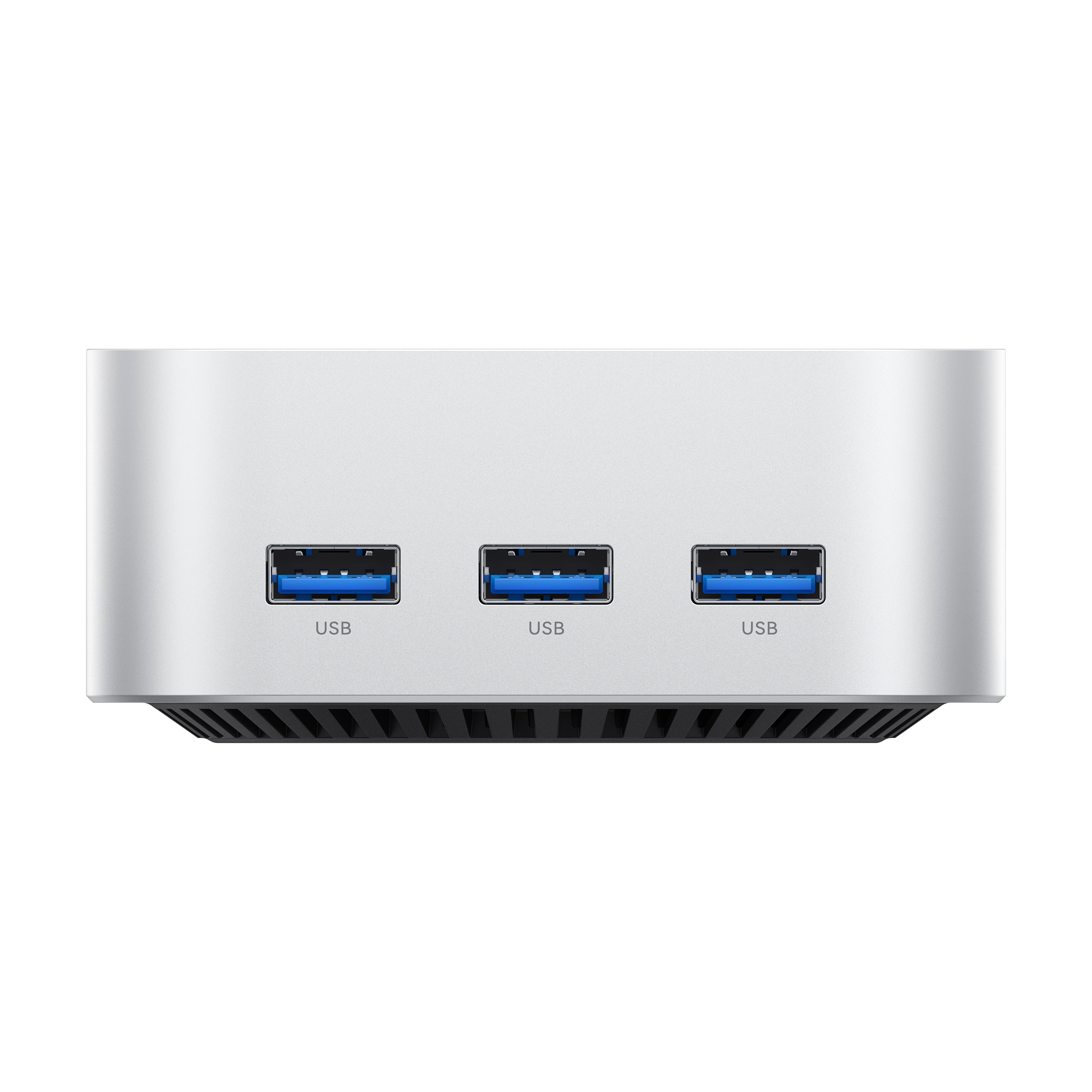

USB | USB3.2 | 10Gbps | 3 |
Type c | Type c | 10Gbps | 2 |

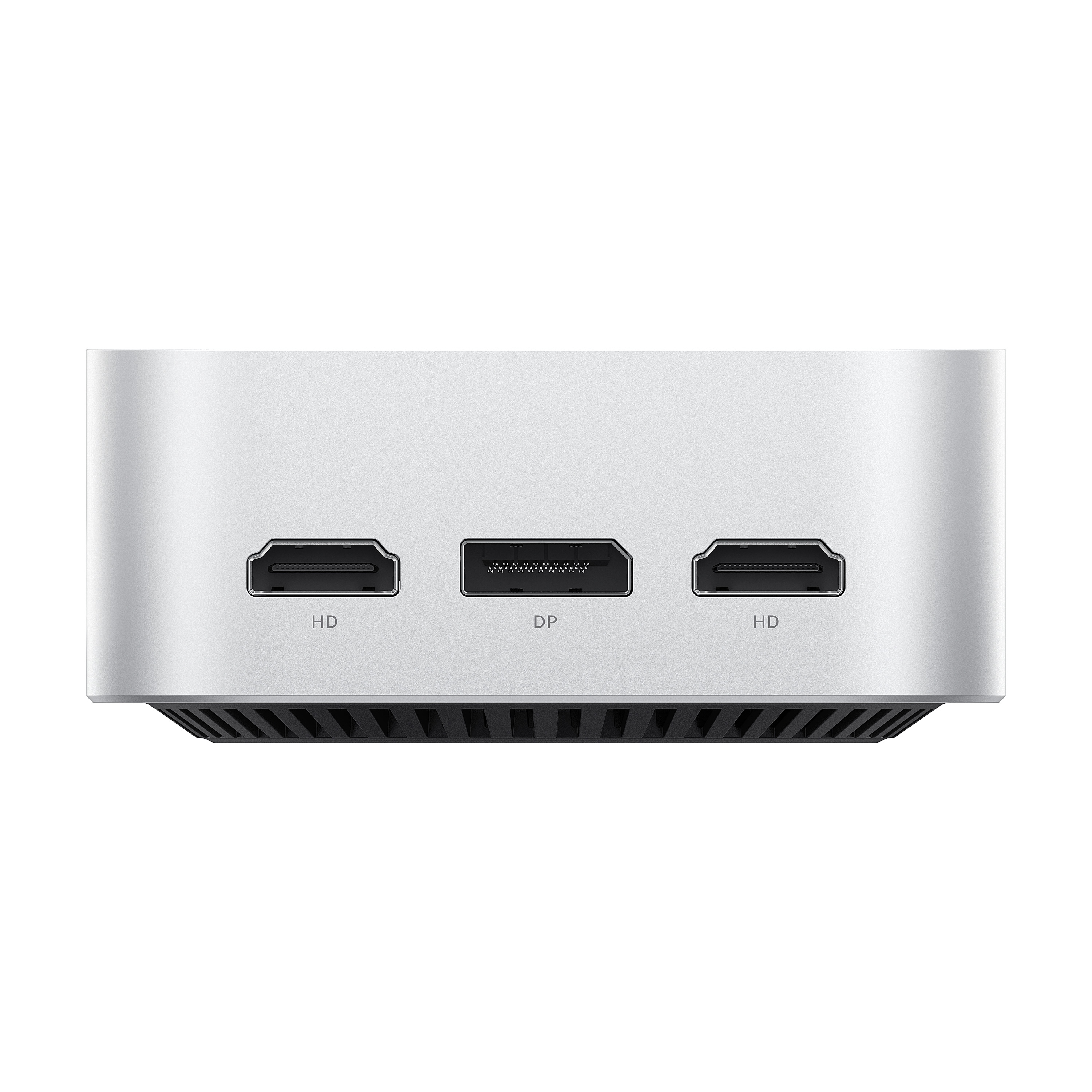

HDMI | HDMI 2.0 | HDMI*2(Max 4K 60Hz) | 2 |
DP | DP1.4 | DP(Max 4K 144Hz) | 1 |

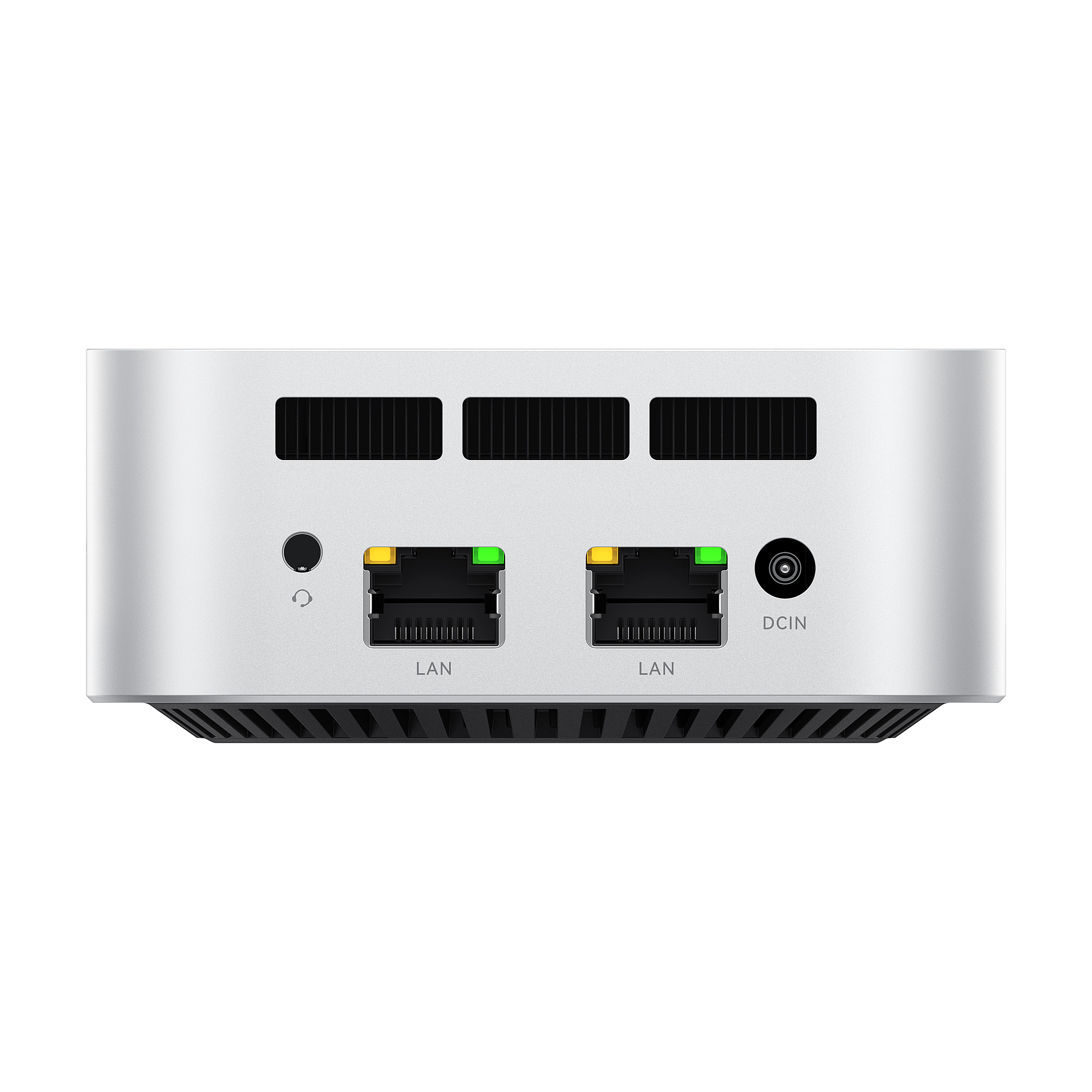

RJ45 | Ethernet | Realtek RTL8111 1000M | 2 |
Power | Power Button | LED State White light-Swith on | 1 |
RTC | Button | CLR CMOS Button | 1 |
Audio | Audio in&out | 3.5mm Phone Jack*1(Two-in-one)Realtek ALC897 | 1 |
DC IN | Power Supply | 5.5*2.1 DC Jack*1 | 1 |
Antenna | FPC Antenna | FPC Antenna1 | 1 |
FPC Antenna2 | 1 | ||
Internal interface | |||
Type | Spec | Description | |
WIFI | On board | WIFI5/WIFI6 IEEE 802.11ax | |
Bluetooth | On board | BT4.2/BT5.2 | |
Software Configuration | |||
Type | Spec | Description | |
OS | Version | ||
Environment | |||
Type | Spec | Description | |
Environment | Working Temperature | 0~40℃ | |
Storage Temperature | -20~60℃ | ||
Humidity | 90% @40℃ （No Condensation) | ||
Accessory | |||
Type | Spec | Description | QTY |
Accessory | Adapter | Input 100-240V 50/60Hz | 1 |
HDMI Cable | 1m | 1 | |
Wall-Mounted bracket | 1 | ||
