JFTC8265UEB
JF
-Full Brushed Aluminum Alloy Silver color shell, Exquisite production craft on outside design.

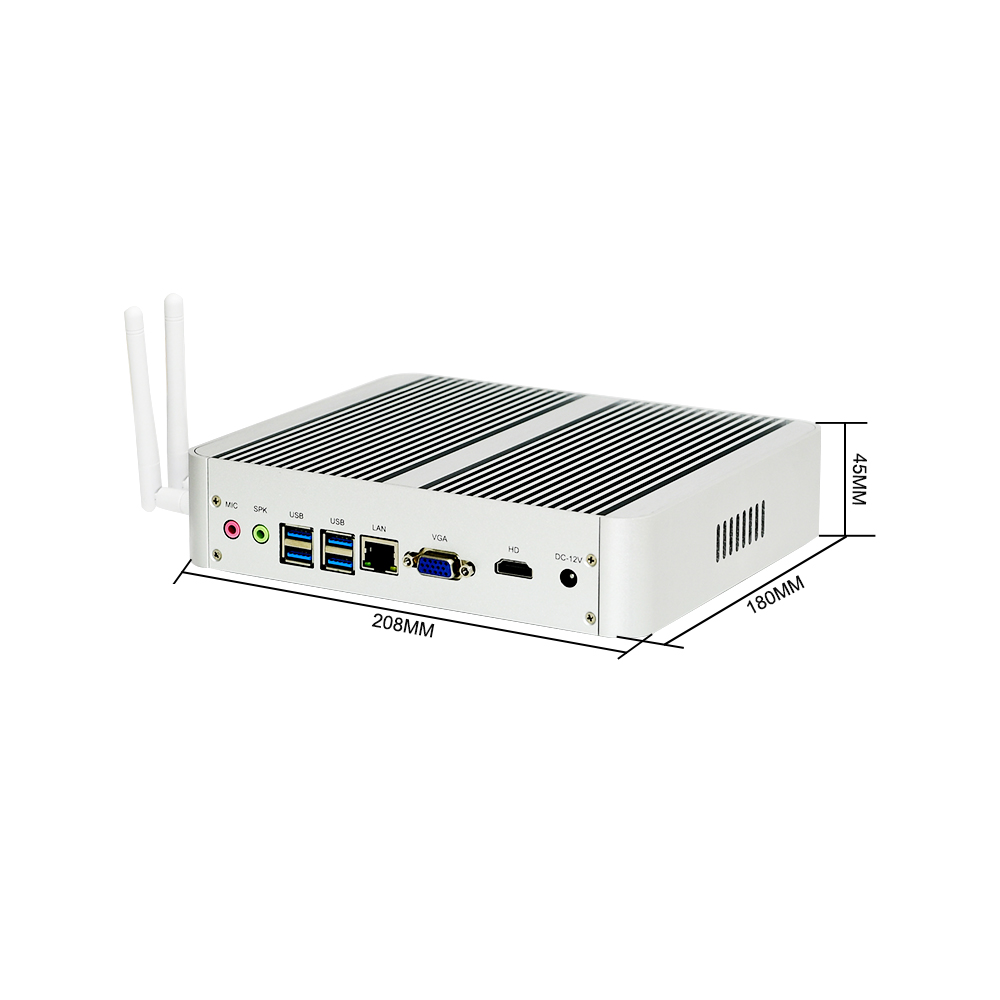

- 2xSODIMM DDR4 memory slot up to 32GB more powerful performance improve work efficiency and give you a smooth experience - Fanless system without cooling fan and slim design 208*180*45MM.
- Low consumption TDP only 15W, save much energy and eco-friendly.
- Can stand up by free plastic stand holder or can be fixed back of monitor by VESA mount.
- Can install M.2+MSATA SSD+2.5” SATA HDD together.
- Support VGA + HDMI dual display output synchronously.
Specifications | |
CPU | Intel core i5 8265U ,1.6~3.9GHZ ,4 cores 8 threads (i3 8140U/ I5 8250U/I5 1235U/I5 1335U Optional ) |
RAM | 2 x SO-DIMM DDR4 Slot, Support 4GB/8GB/16GB/32G Dual channel, DDR4-2133, LPDDR3-1866,DDR3L-1600(optional) |
HDD | 16G/32G/64G/128G/256G SSD /500G/1TB/HDD |
Graphic card | Intel UHD Graphics 620（300-1100MHz） |
BOIS | AMI BIOS,ACPI supported |
LAN | 10/100/1000 adaptive |
Audio | ALC897 chip,7.1channel sound ,Intel lynx Point-LP HDA |
Storage | M-SATA SSD&SATA HDD |
Display port | 1*HDMI,1*VGA |
Chipset | Whiskey Lake |

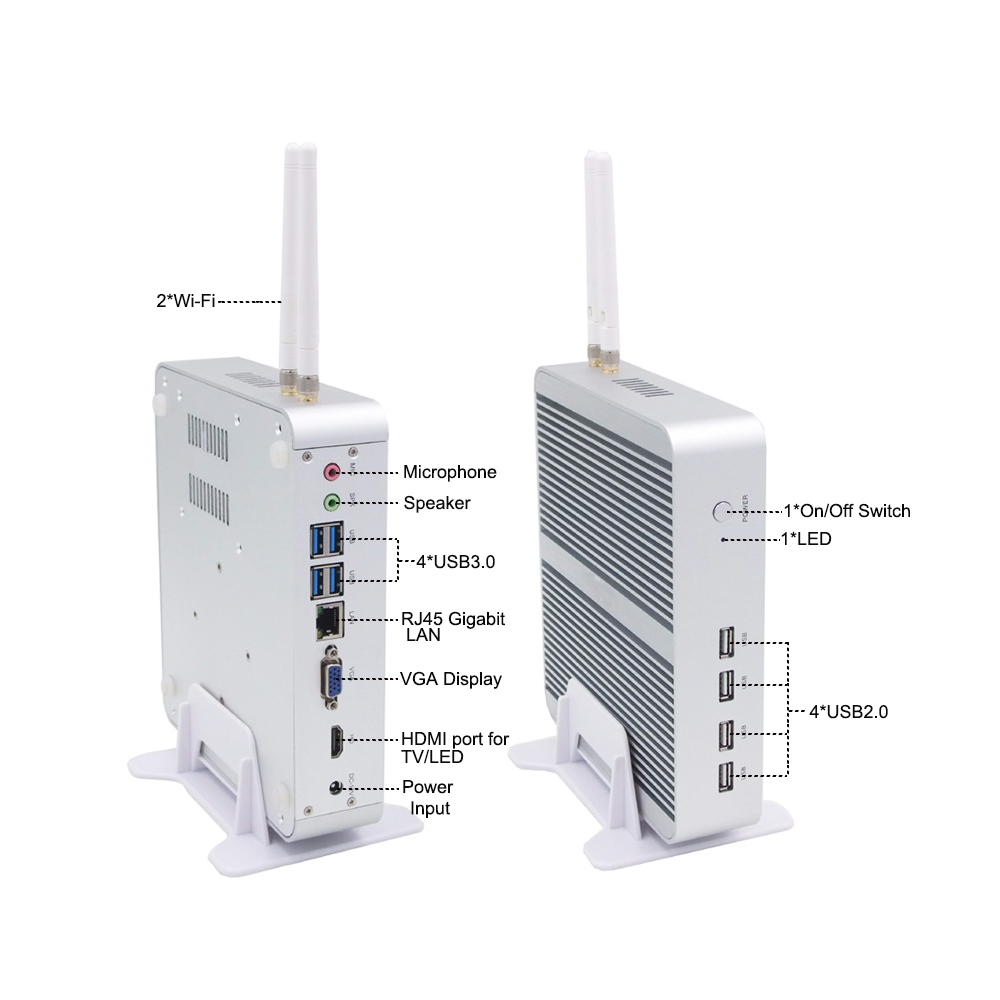

I/O | USB3.0*4 ,USB 2.0*4, 1*MIC,1*SPK,1*DC in,1*RJ45 . |
Wireless | Support 802.11B/G/N protocol WIFI+Bluetooth |
Network | Onboard Realtek RTL8168/8111/8112 PCI-E Gigabit Ethernet NIC 10/100Mbps/1000Mbps BaseT LAN |
Size | 20.8*18.0*4.5cm |
Adaptor | DC 100-240V AC /50-60Hz 12V--5A |
OS | Windows&Liunx |
N.T | 1.5KG |
G.T | 3.0KG |
