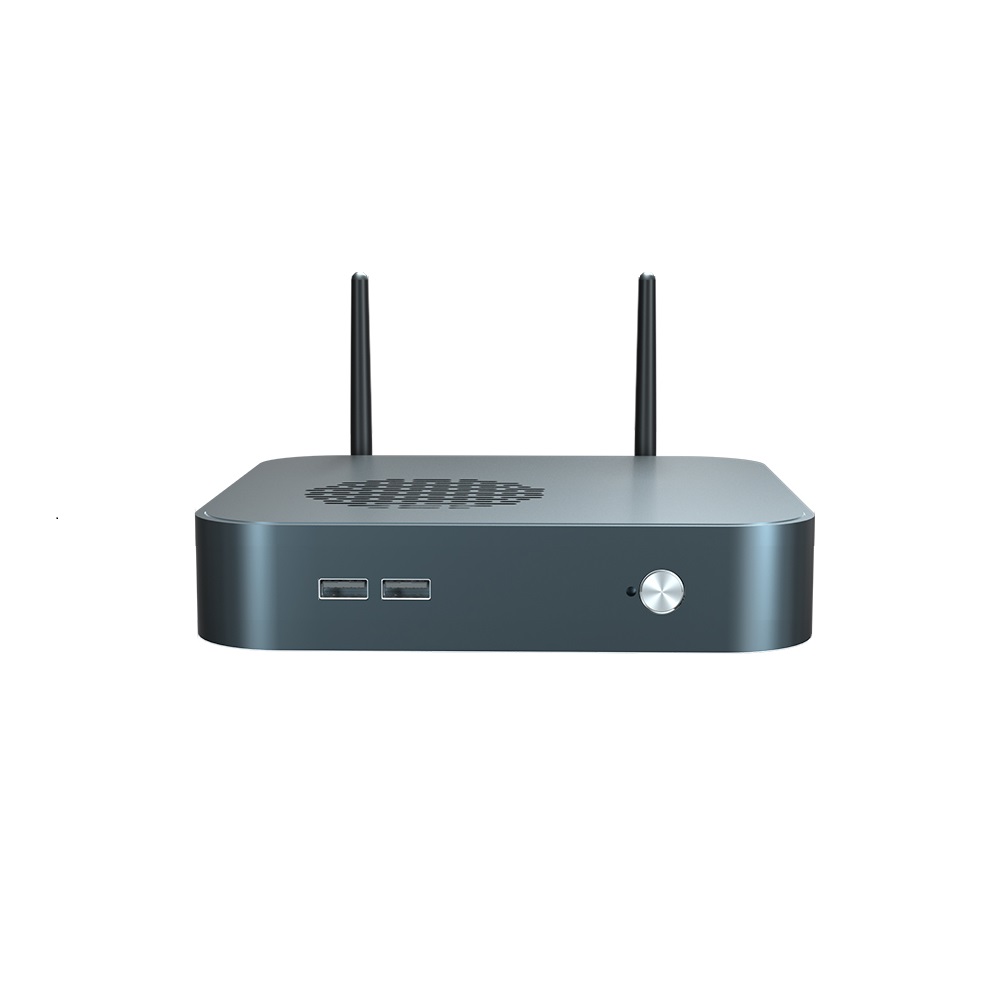

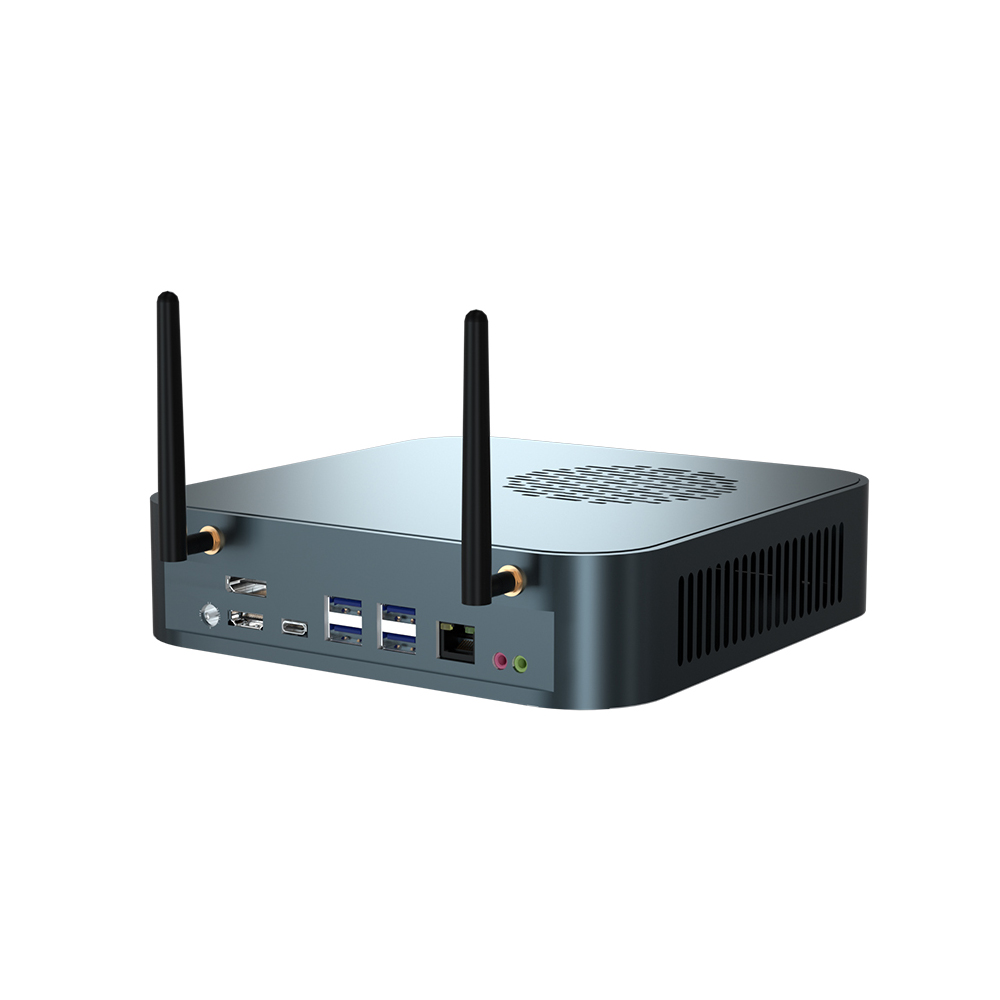

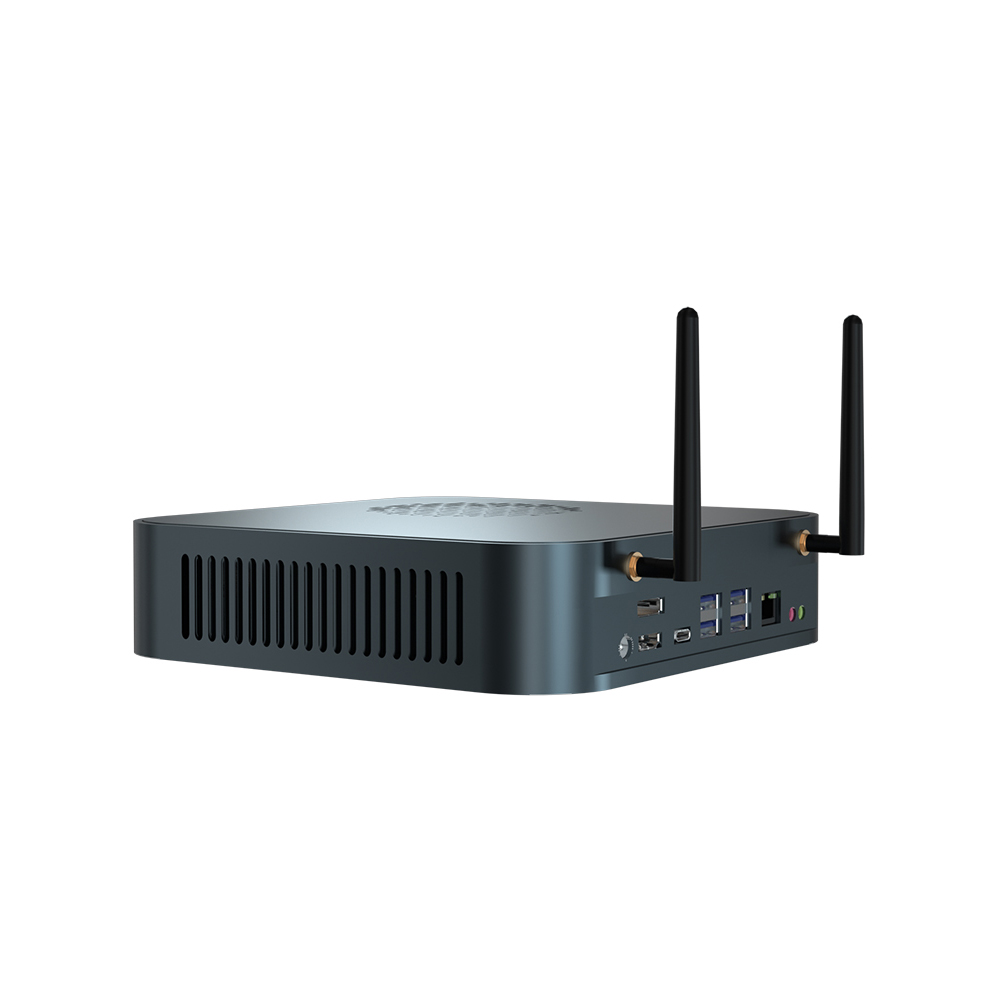

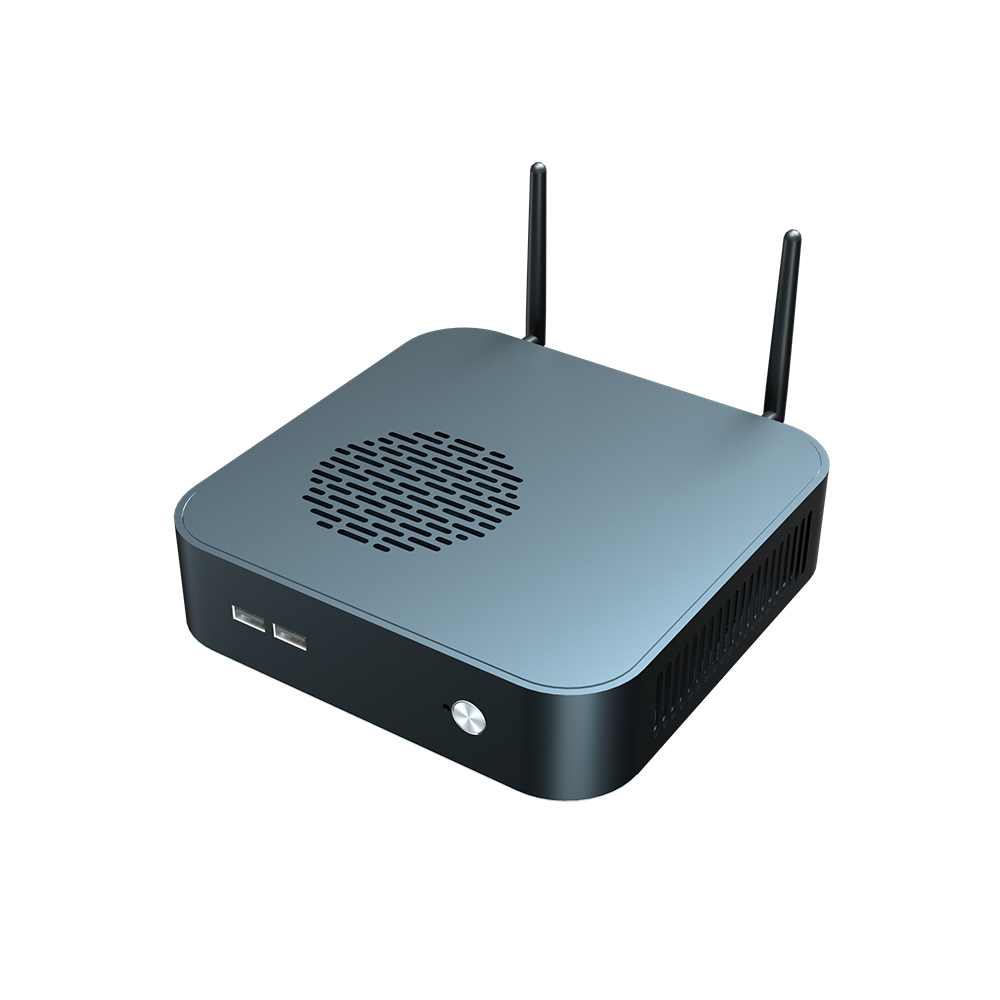

High Quality Mini PC with AMD Ryzen 7 4800h Processor

Basic Information

cpu

Onboard AMD Ryzen 7 (pro )4800H  8cores 16threads  2.9~4.2GHZ

TDP

45W

Chipset

AMD Ryzen processors

Memory Specifications

Memory Types

2 x SO-DIMM DDR4 Slot Support 4GB/8GB/16GB/32GB/64GB Dual channel ,up to DDR4-2666MHZ/3200MHz

OS

Windows 10/Windows 11/Linux

PXE

YES

Network

Realtel 8821CE Wireless PCI-E GBE Family controller   10/100/1000mbps/2500mbps base T LAN

Video

Refer to the above CPU

Wi-Fi:

Module

1 x M.2  NGFF 2230 (key E) slot for Wi-Fi & Bluetooth module(Eg:AX200 Wifi 6 and BT5.1 optional)

Antenna

2*inner RF Cables with dual external antennas

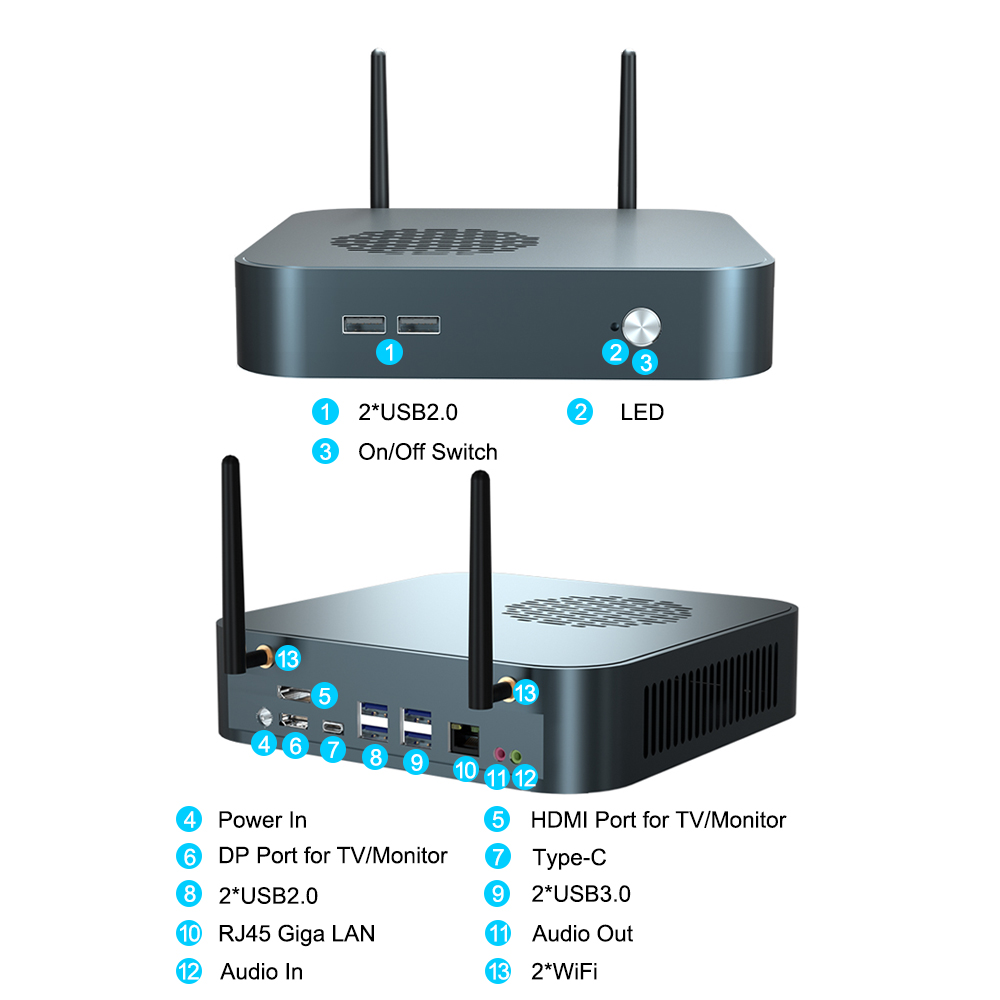

Input/output port

Switch

1 x Power On/Off Switch

Power

1 x 12-19V DC In

LED

1 x LED

USB

2 x USB3.0, 4 x USB2.0

Display

1 x HDMI2.0, 1 x DP 1.4, 1 x USB TYPE-C

LAN

1 x RJ45  LAN

Audio

1 x 3.5MIC, 1 x SPK

Storage

M.2

1 x M.2  slot for NVME 22*80 ssd (Key M),UP TO 2TB (only NVME PCI-e 3.0*4 )

SATA

2*SATA3.0 Slot for SATA HDD or SSD ,up to 2TB, Support 6GB/S (Only space for 1*2.5inch SATA HDD/SSD )

Product Dimension & Details:

Dimension

PC size

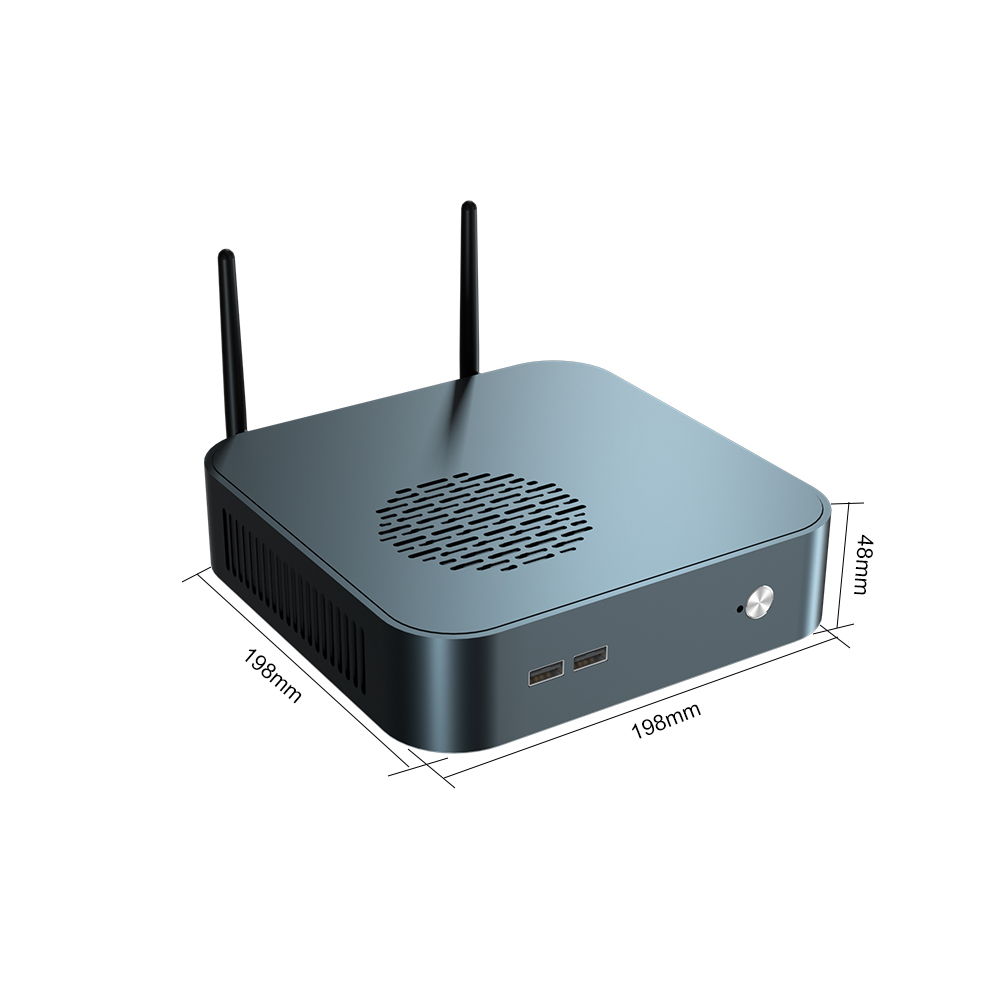

L198*W198*H48mm

Package size 32cm*26cm*8cm

Weight

Net 1.5kg, Gross 2.5kg

Cooling Mode

Turbo cooler

Function

PXE, Auto Power On, RTC, Wake On LAN

Package Content

Standard

1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag, 1*SATA Cable

Optional

1xHDMI cable (optional )

Power and Working Environment

Input

100-240V AC/50-60Hz

Output

DC 19V /4.74A

Operating Temperature

0/+70 Centigrade

Storage Temperature

-20/+80 Centigrade

Relative Humidity

0%~90% @30°C(non-condensing)
