JFTC1345UFT
JF
-2*SO-DIMM DDR5 memory slott up to 64GB.
-Support three display :HDMI2.0 +dp1.4+USB Type-C .
-Support 2*M.2NVME SSD (SSD1 supports M.2 SATA.

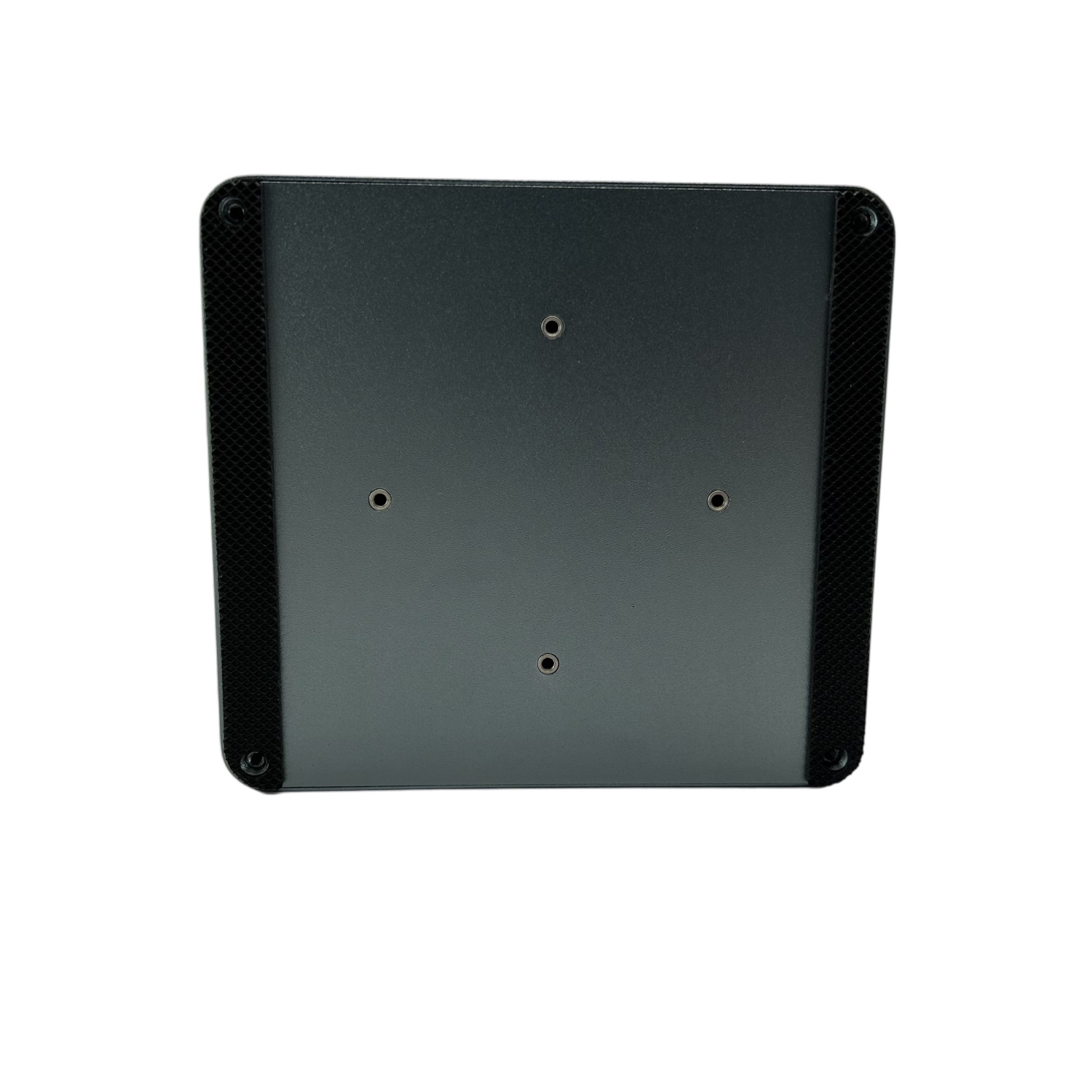

-Low consumption TDP only 15W and can be mounted on
the wall .
-Support Wake on Lan ,Auto power On, RTC and PXE.
Specifications | |
CPU | Intel i5 1345U 1.6GHZ~4.7GHZ ,10 core 12 threads |
RAM | 2*SO-DIMM DD5 Slot, support 4G/8G/16G/32G/64G (optional) DDR5 4800MHZ/5200MHZ |
HDD | 16G/32G/64G/128G/256G/512G/1TB/2TB SSD +1TB/2TB HDD |
Graphic card | Intel iris Xe Graphics elligible |
Cache | 12MB |
Network | 2*Realttek RTL81111H Gigibit Etthernet Controller 10/100/1000mbps Base T LAN |
Audio Card | Intel High Deffinition Audio Controller |
M.2 | 2*M.2 Slot for NVME SSD (SSD 1 Supports M.2 SATA ) |

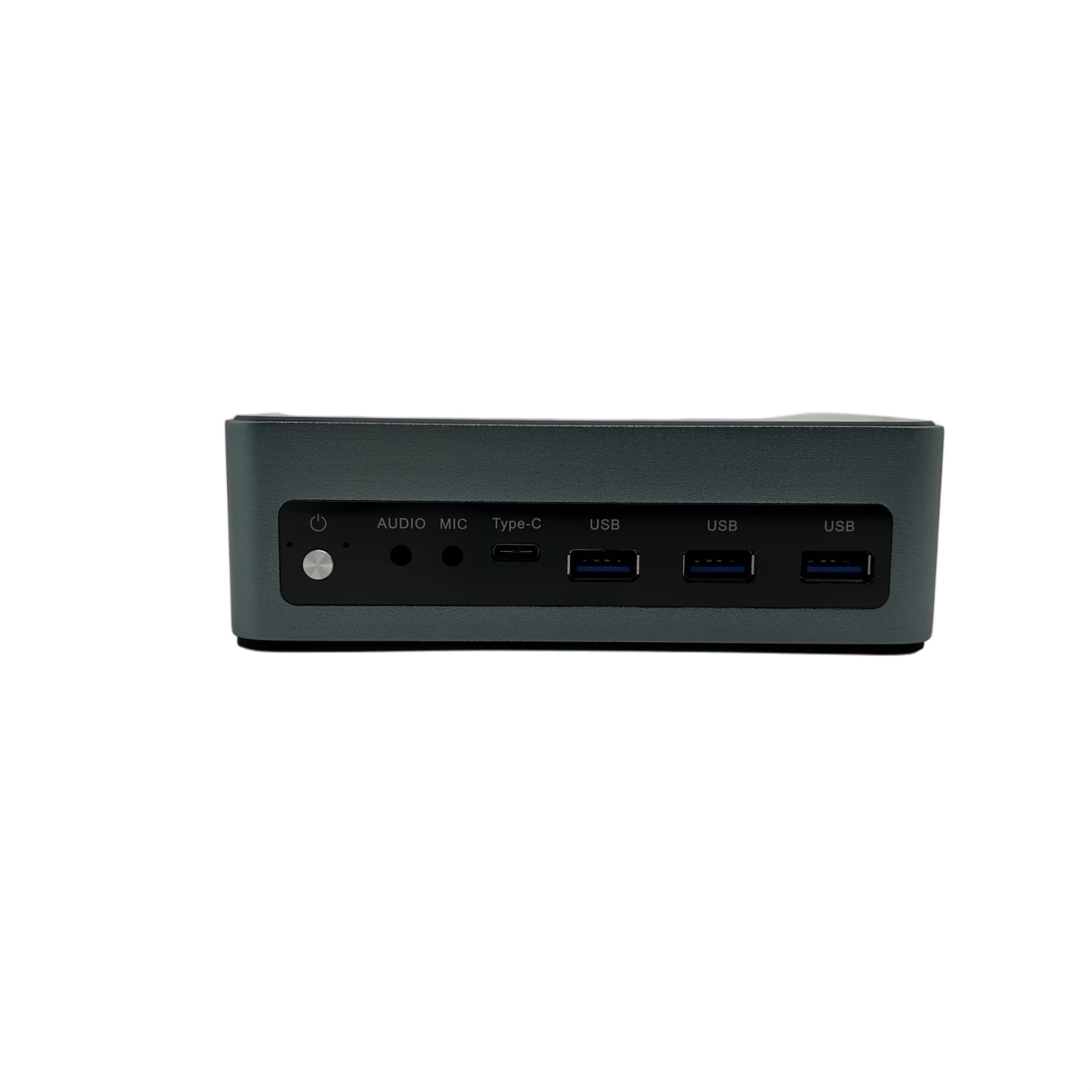

Display | 1*HDMI 2.0 ,1*DP 1.4 , 1*USB Type-C |
Chipset | Raptor lake |

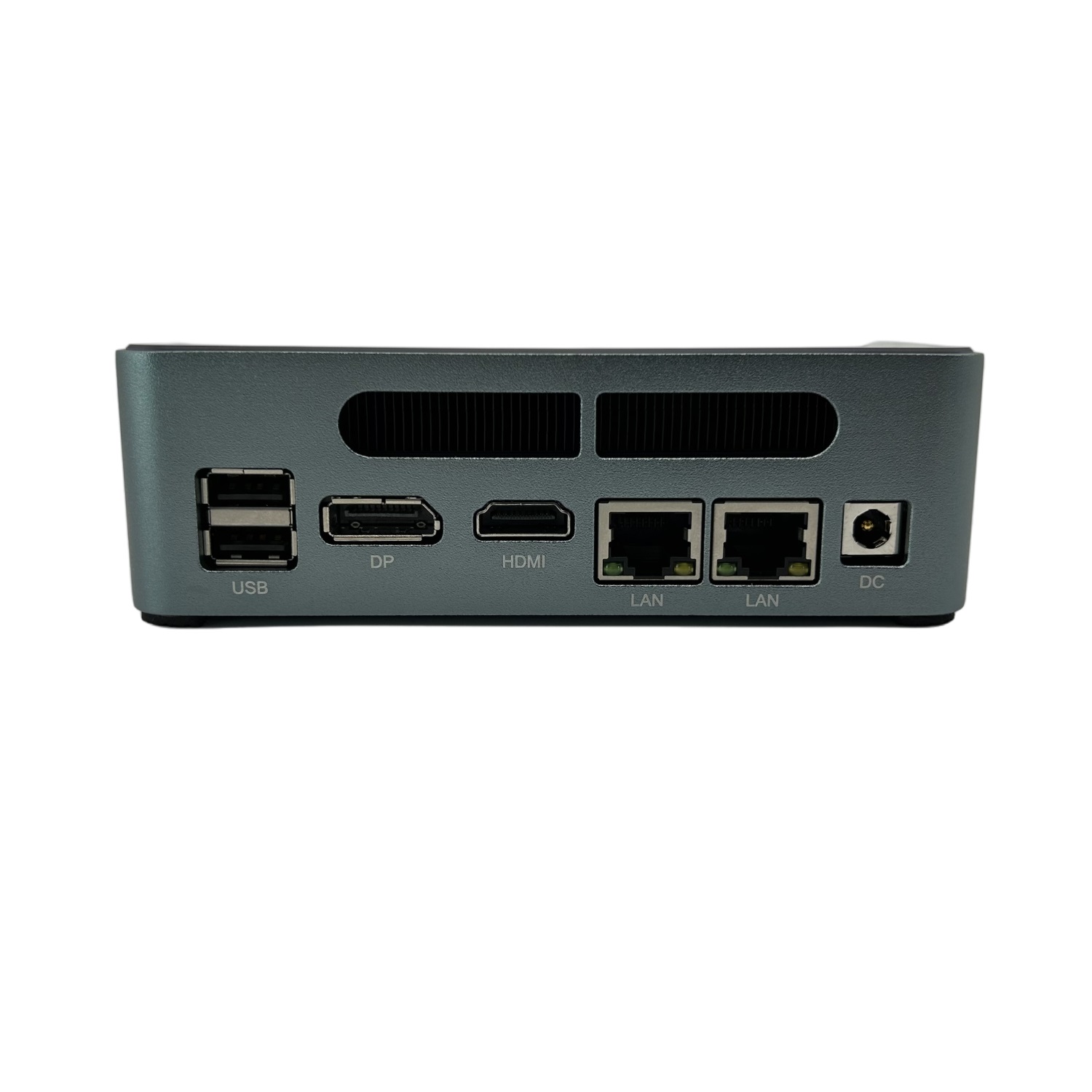

I/O | 2*USB2.0、3*USB3.2(10Gbps)、2*RJ45 Giga LAN ;1*MIC ,1*SPK |
Wifi | 1* M.2 slot for wifi (802.11b/g/n/AC/AX ) module and Blutetooth (4.0 or above )module |
Functions | PXE / Auto-power-on / Wake-on-LAN/ RTC/ TPM |
Size | 138*126 *44cm |
Power | 1* DC 100-240V AC/50-60HZ |
OS | Windows&Liunx |
N.T | 1.5KG |
G.T | 2.0KG |
