Intel®Processor celeron 1037U( i3 -N305 optional ).
1*DDR3 SODIMM.
Support calls on function automatically.
6*USB2.0 and 2*USB3.0.
Support SSD +HDD storage memory.
4*COM RS232，2* RJ45 ports ，Support VGA+HDMI display.
General | |
Processor | Intel Celeron 1037U @1.8GHz Dual Core 4 thread （3317U processor optional ) |
Operating System | Windows XP/ Windows 7/ Linux |
Storage | SSD: 8G/16G/32G/64G/128G HDD: 160G/320G/500G/1TB |
Ram | DDR3 2GB/4GB/8G |
Chipset | Intel NM70 Express |
Technology | Energy-saving technology , 64-bit computing |
Processor details | |
CPU | Intel Celeron 1037U |
Speed | 1.8GHz (100MHz * 18.0) |
Processor number | 2 core / 4 threads |
Technique | 22NM |
Slot | Socket H2(LGA 1155) |
Buffer Ram | L1 data cache: 32 KB, 8-Way, 64 byte lines L1 code cache: 32 KB, 8-Way, 64 byte lines L2 cache: 256 KB, 8-Way, 64 byte lines L3 cache: 2 MB, 8-Way, 64 byte lines |
Characteristic | MMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2, EM64T, EIST |
Display Card Details | |
Graphic Cards | INTEL Ivy Bridge Graphics Controller(350-1000MHz) |
Resolution (MAX) | Support 1920*1080 HD resolution, 32 bit color depth 60Hz |
Audio Cards | Intel(R) display audio @ Intel Panther Point High Definition |
Network | |
Network card | Realtek RTL8191SE PCI-E Gigabit Ethernet NIC |
Ethernet | 10/100/1000Mbps Adaptive |
WIFI | 802.11.b/g/n(150M or 300M Optional) |

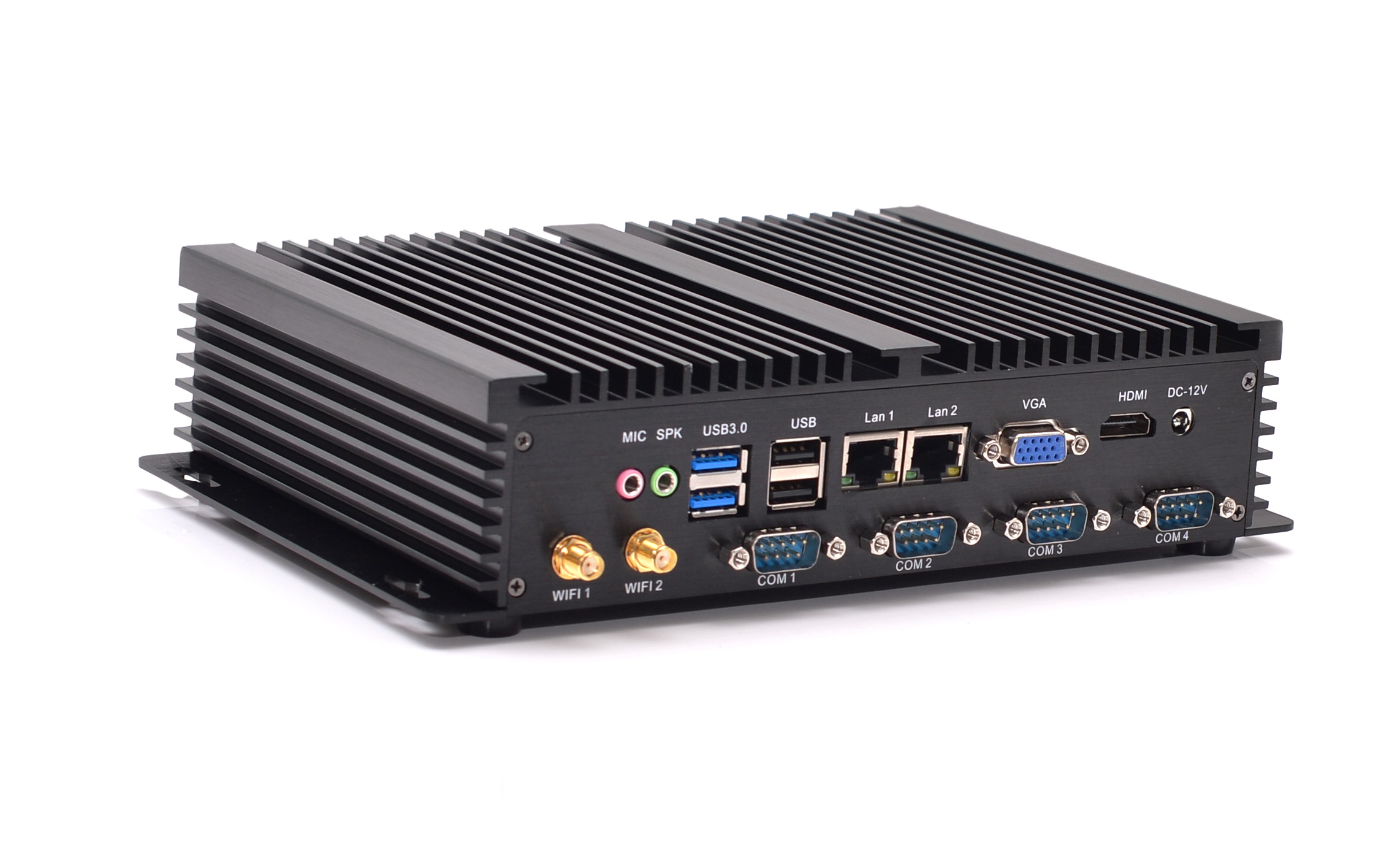

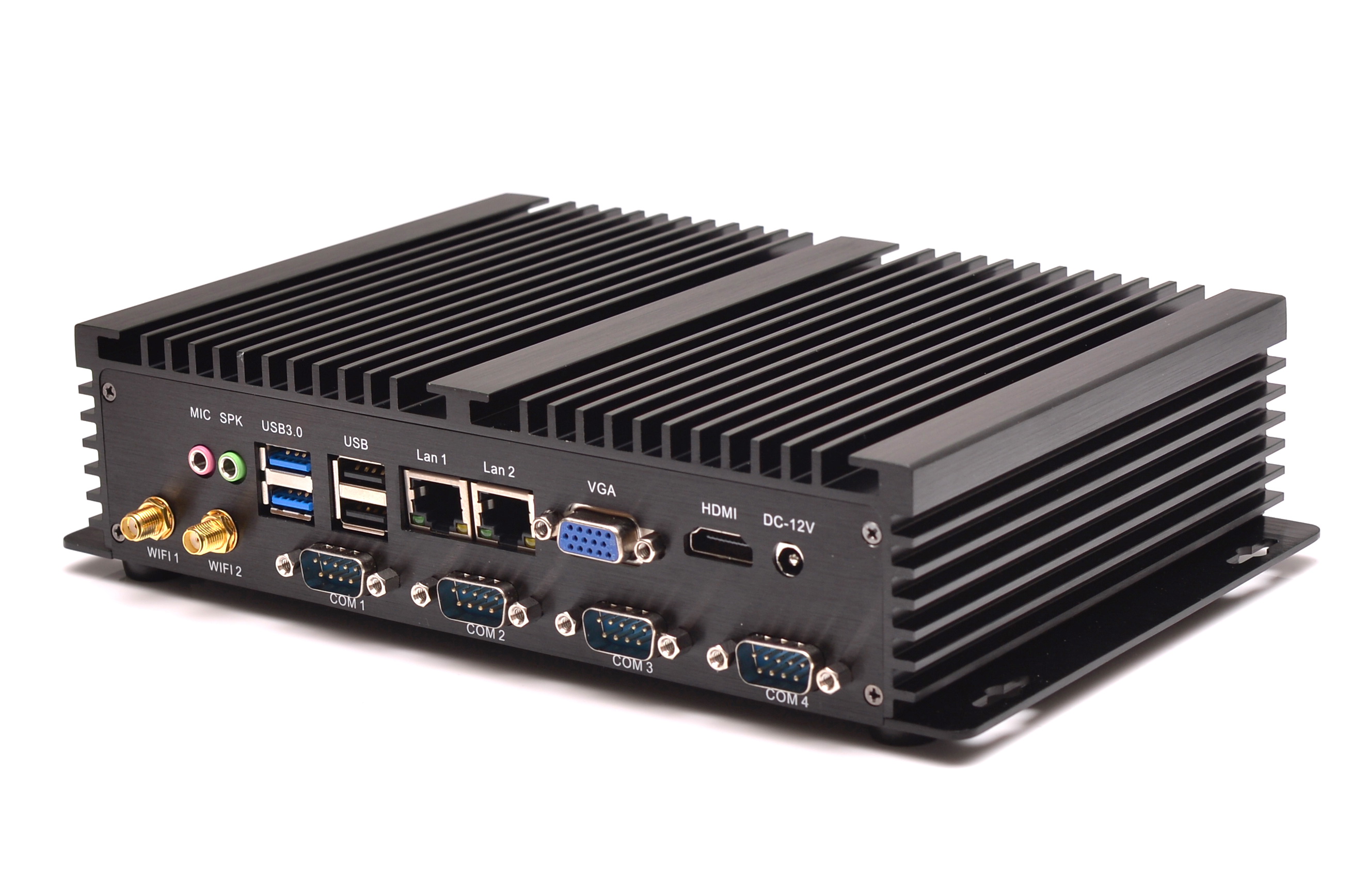

I/O port | |
Display port | 1* VGA+ 1* HDMI |
USB port | 6*USB 2.0 ports; 2 *USB 3.0 |
Ethernet port | 2* RJ 45 10/100/1000Mbps Adaptive |
Power input port | 1 inner diameter 2.5mm,external diameter 5.5mm |
Audio | Standard 3.5 Audio input and output |
Extend | 4 * RJ232 COM port |
Power and Working Environment | |
Input | DC100-240V AC/50-60Hz |
Output | DC 12V/3A |
Type | External power adapter mode |
Consumption | 12 to 16W |
Noise | Fanless System |
Temperature | 0-40 Centigrade |
Humidity | 10%-85% |
Product Dimension & Details | |
Size | 197*197*30MM |
Package Box | Neutral Color Export Box |
Content | Mini PC device, Power Adapter |
