JFTC13620HRT
JF
- RTX3060M 12G ultra-strong light tracing graphics card optional.
- The motherboard is compact in design and powerful in performance, on par with desktop computers.
- Intelligent temperature control, heat dissipation and low noise.

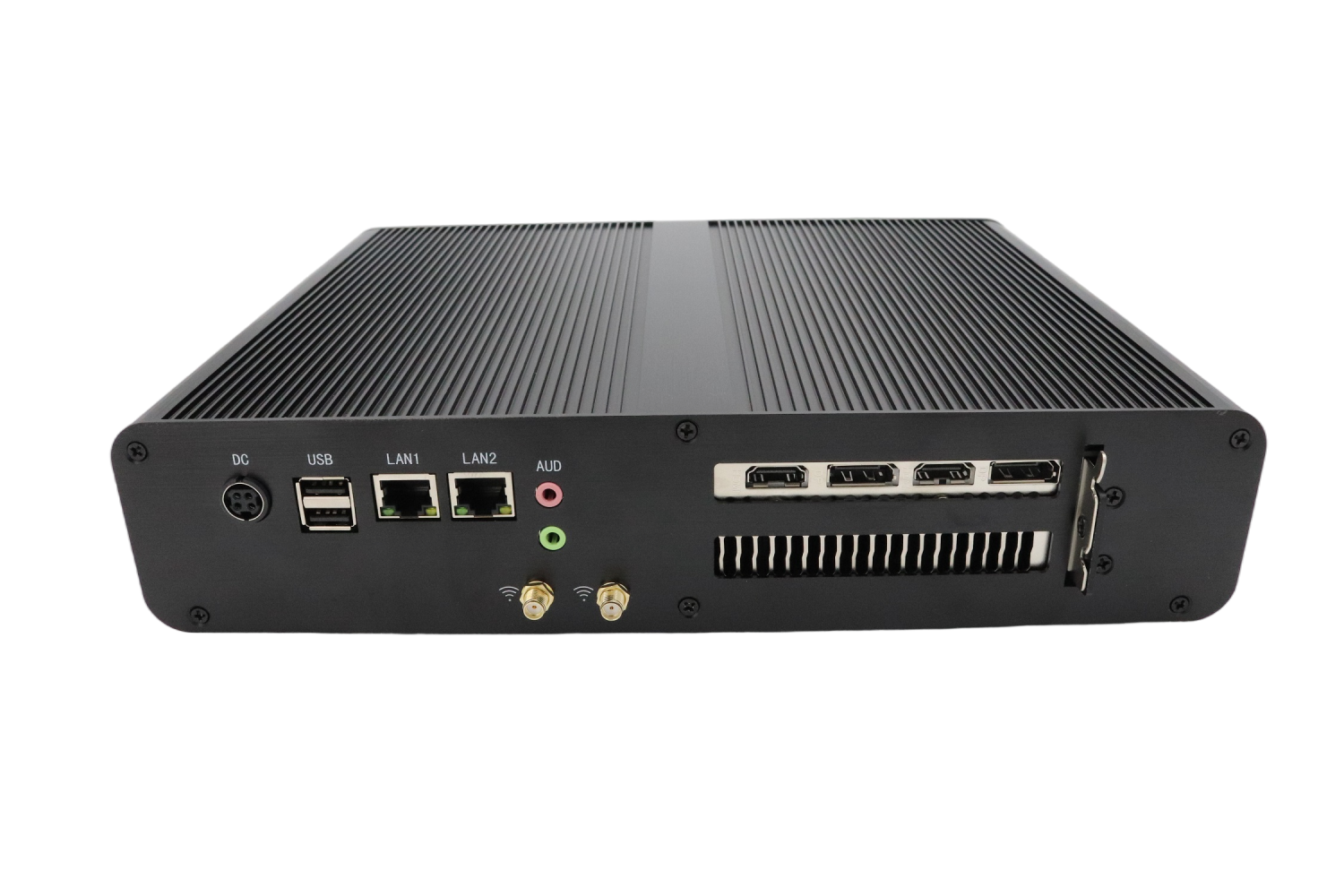

- Dual Giga LAN port and 5 HD interface 2*HDMI+2*DP+Type-C output.
- All-aluminum body, shockproof, anti-drop, stable and reliable for long-term operation.
- Dual channel memory DDR5, support 4800Mhz or 5200MHz.
Basic Information | |
cpu | Intel Core i7-10870H/i9-10980HK |
TDP | 45W |
BIOS | AMI BIOS, ACPI supported |
Chipset | Comet Lake/Raptor Lake |
Memory Specifications | |
Memory Types | 10th 2 x SO-DIMM DDR4 Slot |
OS | Windows10/11/Linuk |
Network | Onboard Intel 2.5G Giga LAN |
Video | Nvidia GTX 1660S 6G/ RTX 3060M 12G/ RTX 3070M 8G/ RTX 4060 8G |
Wi-Fi: |
|
Module | Optional 150M WIFI or 300M WIFI built-in module |
Antenna | 2 x inner RF cables without external antennas |
Input/output port | |
Switch | 1 x Power On/Off Switch |
Power | 1 x 19V DC In |

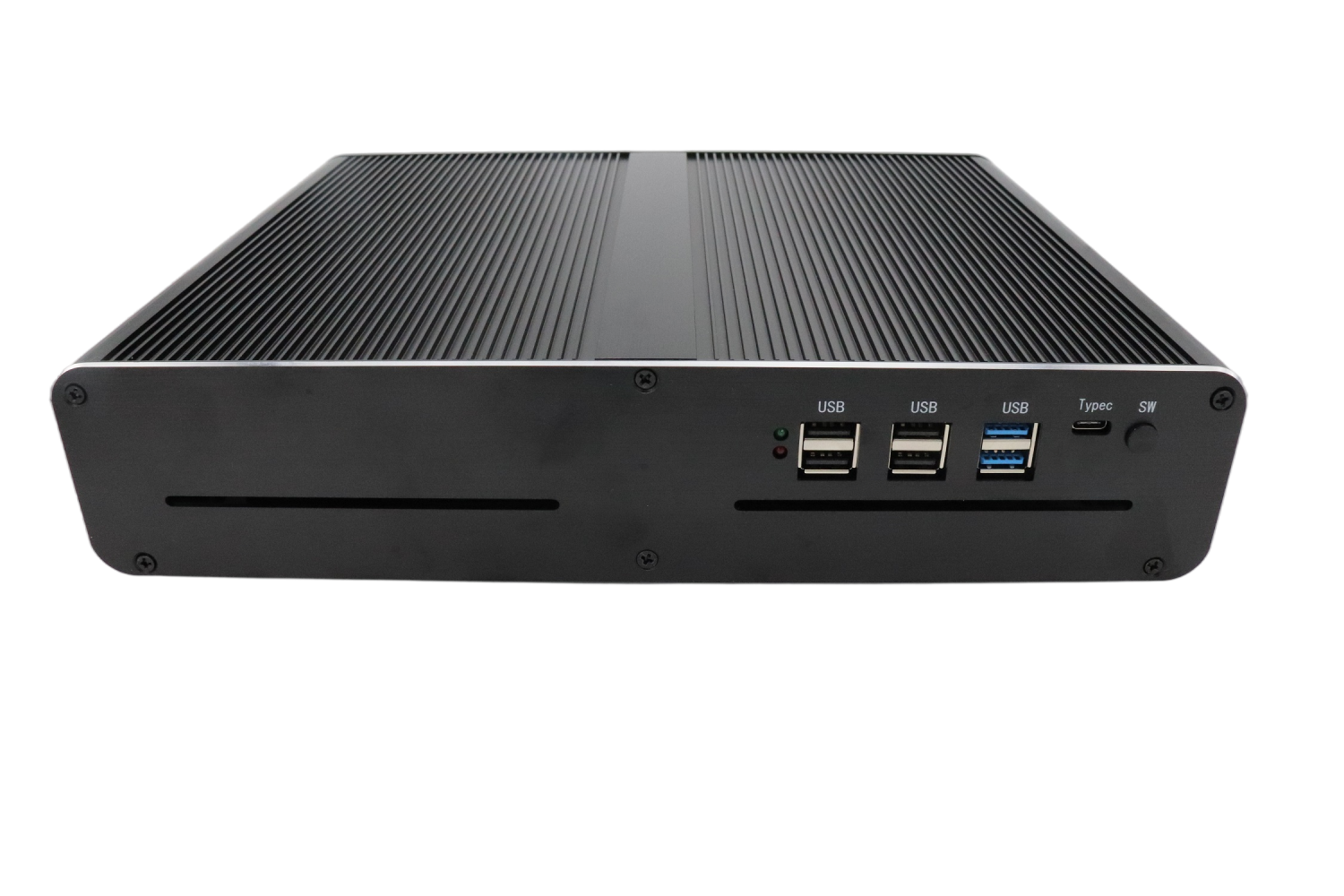

USB | 6 x USB2.0, 2 x USB3.0, 1 x Type-C |
Display | 2 x HDMI, 2 x DP, 1 x Type-C (4K 60Hz) |
LAN | 2 x RJ45 Giga LAN |
Audio | 1 x MIC, 1 x SPK |
Storage | |
M.2 | 1 x M.2 Nvme Pcie 3.0 SSD |
SATA | 1 x 2.5'' SATA slot for SATA HDD or SSD |
Product Dimension & Details: |
|
Dimension | PC size 320mm x 240mm x57mm |
Package size 490*350*120 mm | |
Weight | Net 2.5kg, GW 4kg |
Shell | Black color aluminum alloy |

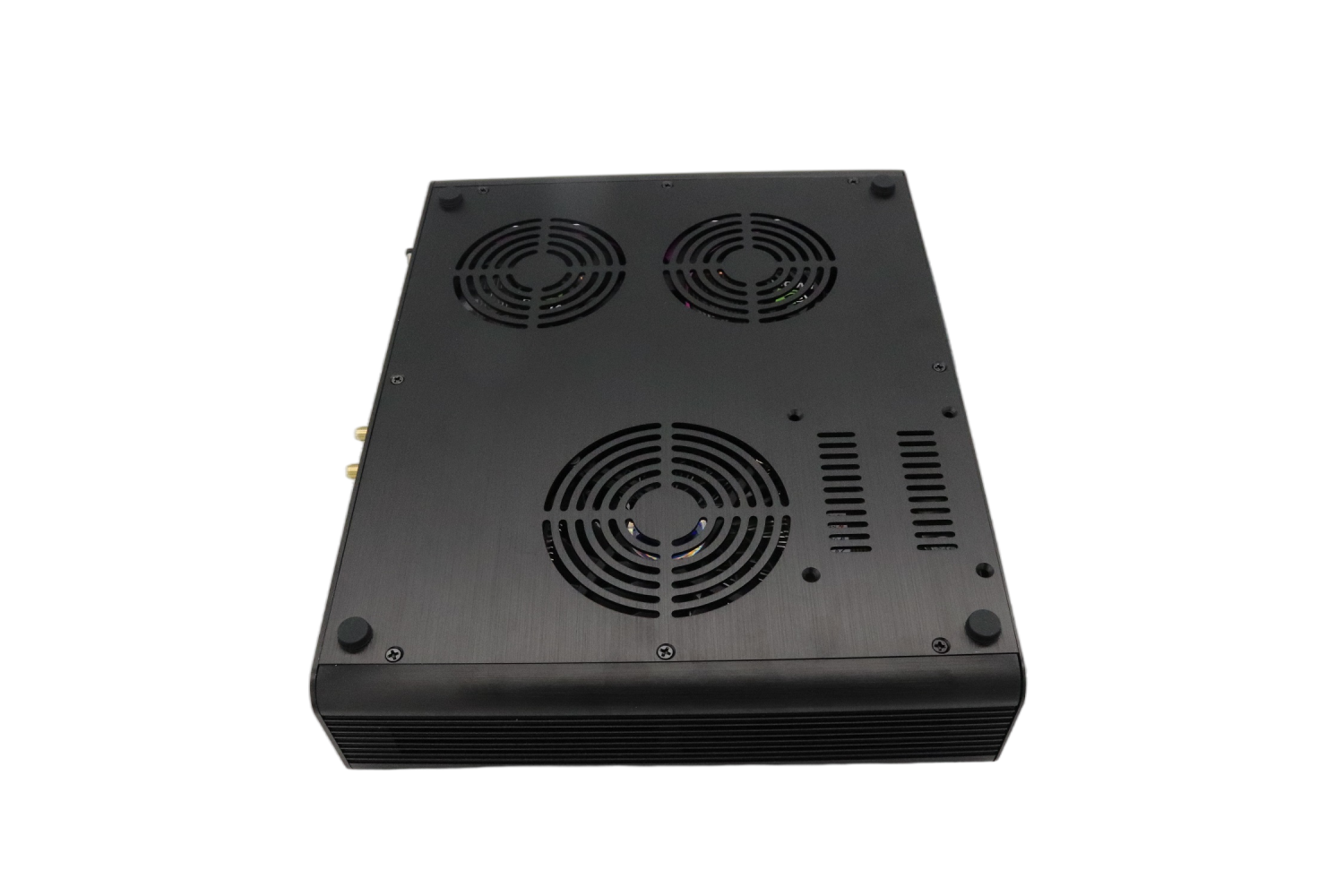

Cooling Mode | CPU fan and graphics card fan |
Package Content | |
Standard | 1 x Mini PC, 1 x Power Adapter, 1 x Power Cord, 1 x Screws Bag |
Optional | 1 x HDMI cable, 1 x User Manual |
Power and Working Environment |
|
Input | 100-240V AC/50-60Hz |
Output | DC 19V/9.5A |
Operating Temperature | -10/+50 Centigrade |
Storage Temperature | -20/+85 Centigrade (-40~185°F) |
Relative Humidity | 5%~95%@30°C(non-condensing) |
