JFTC4500UAF
JF
Key Features & Benefits:
- Silent turbo fan, large-area air duct design, efficient and fast heat dissipation.
- 1*M.2 22x80 NVMe/PCIE3.0x4 SSD+1*2.5'' SATA SSD/HDD.
- 1*HDMI 2.0-compatible, 1*DP, 1*Type-C, support 3x4K@60Hz display(DP and type-C request activate cable for display).
- Support 2*RJ45 10/100M/1000M+AX200 dual-band WiFi6&Bluetooth5.1.
- Support SenseMI Technology/DirectX®12/Wake on lan/ PXE/Auto restart when lost power.
Product Parameters
Basic Information | |
cpu | Onboard AMD Ryzen 5 4500U 6cores 6threads 2.3~4.0GHZ |
TDP | 15W |
Chipset | AMD Ryzen processors |
Memory Specifications | |
Memory Types | 2 x SO-DIMM DDR4 Slot Support 4GB/8GB/16GB/32GB/64GB Dual channel ,up to DDR4-3200MHz,LPDDR4 4266MHZ |
OS | Windows 10/Windows 11/Linux |
PXE | YES |
Network | RTL8111 10/100/1000mbps/2500mbps base T LAN |
Video | Refer to the above CPU |
Wi-Fi: |
|
Module | 1 x M.2 NGFF 2230 (key E) slot for Wi-Fi & Bluetooth module(Eg:AX200 Wifi 6 and BT5.1 optional) |
Antenna | 2*inner RF Cables without external antennas |

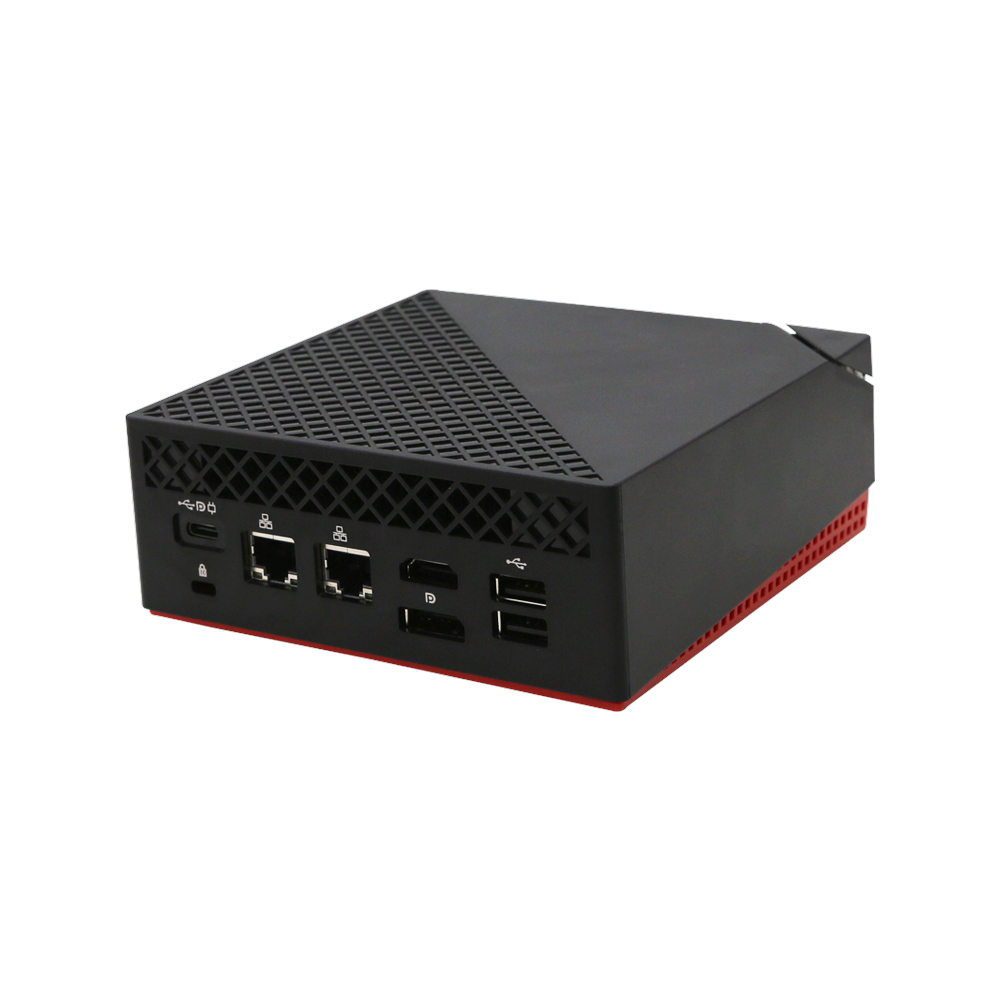

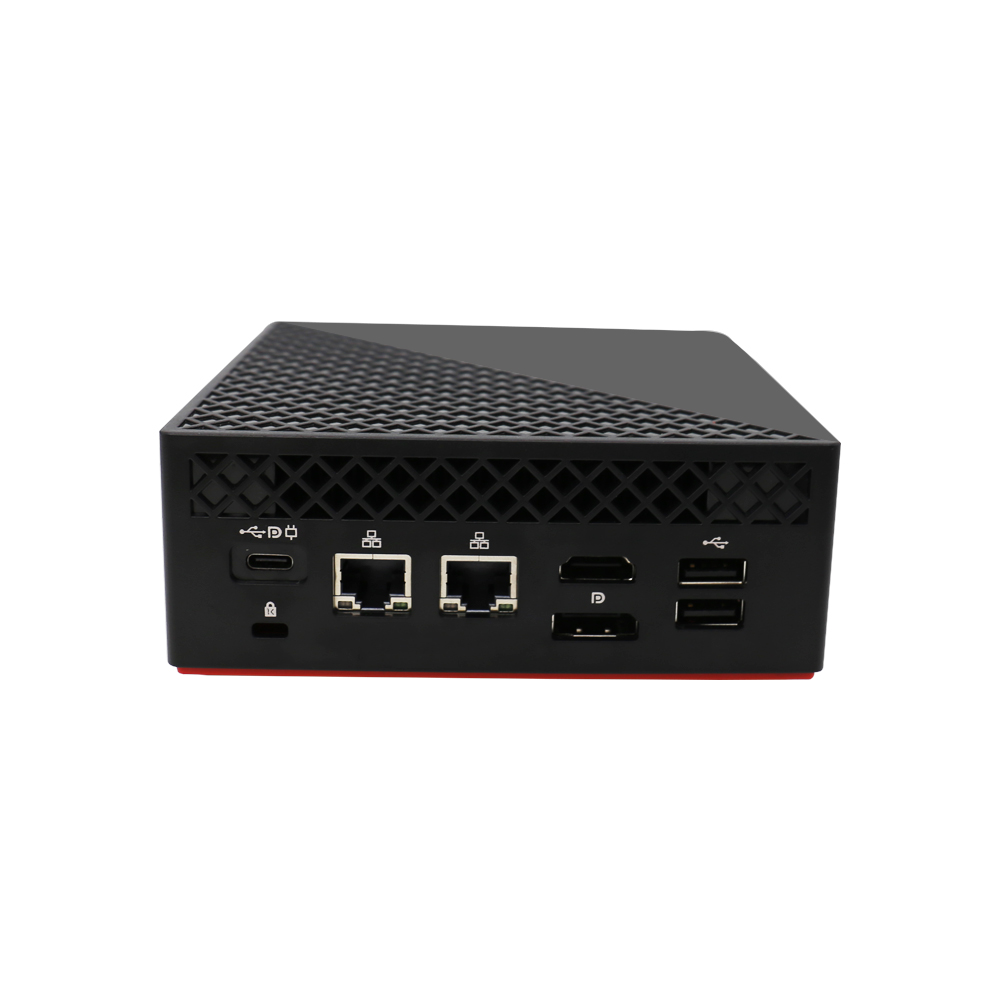

Input/output port | |
Switch | 1 x Power On/Off Switch |
Power | 1 x type-C PD Charge max 65W |
LED | 1 x LED |
USB | 2 x USB3.0, 2x USB2.0 |
Display | 1 x HDMI2.0, 1 x DP , 1 x USB TYPE-C Support 3*4K @60HZ display |
LAN | 2 x RJ45 LAN |
Audio | 1 x 3.5MIC, 1 x SPK |
Others 1* kensington lock hole | |
Storage | |
M.2 | 1 x M.2 NVME /PCIE 3.0*4 22*80 SSD ,up to 2TB |
SATA | 1* SATA3.0 Slot for SATA HDD or SSD |
Product Dimension & Details: |
|
Dimension | PC size L133*W133*H50mm |
Package size 32cm*18cm*8cm | |
Weight | Net 0.65kg, Gross 1.5kg |
Cooling Mode | Silent Turbo cooler |
Function | Sense MI Technology /Direct X 12/PXE, Auto Power On, Wake On LAN |

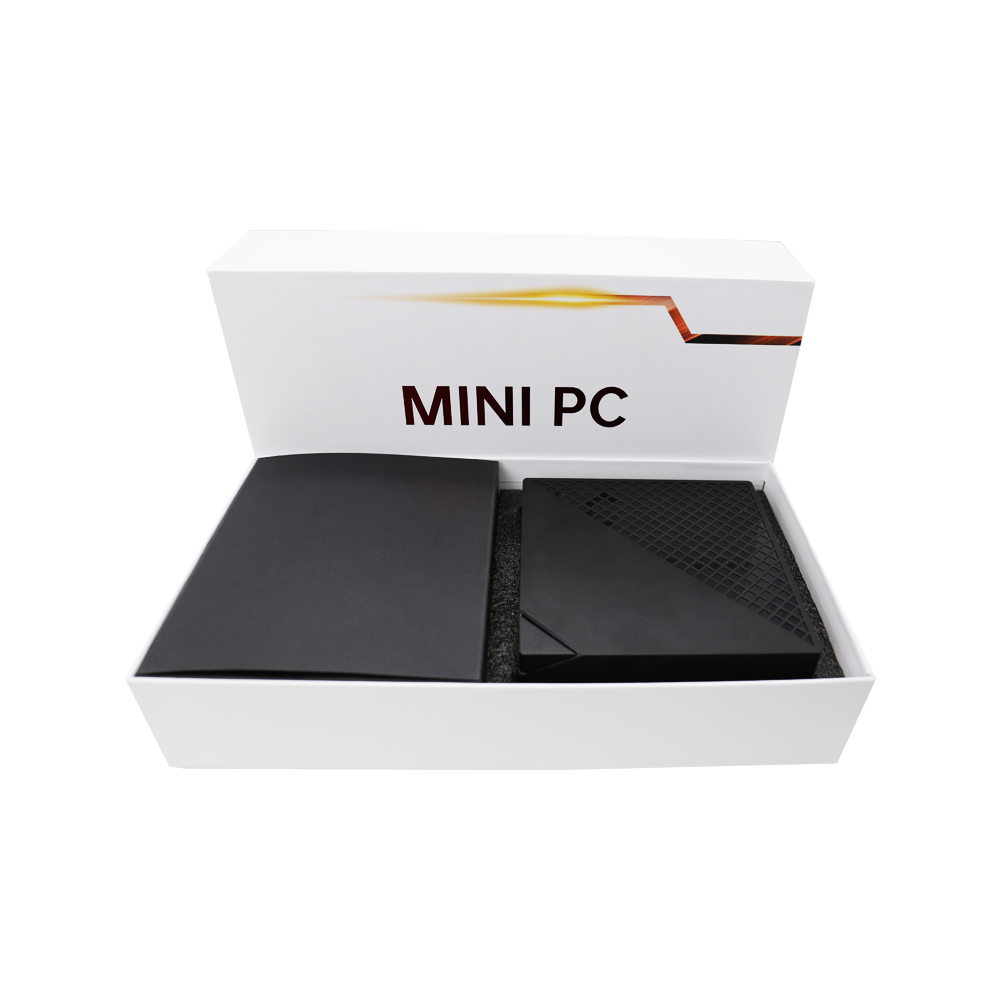

Package Content | |
Standard | 1xMini PC, 1xPower Adapter, 1*SATA Cable |
Optional | 1xHDMI cable (optional ) |
Power and Working Environment |
|
Input | 100-240V AC/50-60Hz |
Output | Type-C PD Charge max 65W |
Operating Temperature | -10/+60 Centigrade |
Storage Temperature | -10/+60 Centigrade |
Relative Humidity | 0%~90% (non-condensing) |
