JFTC13900HF
JF
-Graphics eligible Nvidia RTX4060 VRAM GDDR6 8G.
-2*SODIMM DDR5 memory slot up to 64GB more powerful performance, improve work efficiency and give you a smooth experience.
-Support 2*HDMI and Type-C triple display output synchronously .
-Support PXE , Auto Power On, RTC, Wake On LAN .
Specifications | |
CPU | Intel i9 13900H 4.1~5.4GHZ ,14 core 20 threads |
RAM | 2*SO-DIMM DDR5 Slot, support 8G/16G/32G/64G (optional)DDR5 4800MHZ |
HDD | 64G/128G/256G/512G/1TB/2TB SSD +1TB/2TB HDD |
Graphic card | Intel Iris Xe Graphics ;Nvidia RTX4060 VRAM GDDR6 8GB |
Cache | 24MB |
Network | Intel 2.5G network |
Audio Card | HD Audio realtek ALC662 |
M.2 | 1*M.2 slot for 2280, Support SATA3.0 and NVME PCIE*4 ; 1*M.2 2280 slot for NVME PCIE *4 |
Display | 1*HDMI 1.4 ;1*HDMI 2.0（ 4K 60HZ）, 1* Type-C(4K 60HZ） |
Chipset | Raptor lake |
I/O | 2*USB2.0、4*USB3.0、1*RJ45 2.5G LAN ;1*MIC ,1*SPK |
Wifi | 1* M.2 NGFF 2230 slot for wifi (802.11b/g/n/AC/AX ) module and Bluetooth (4.0 or above )module |
Functions | PXE / Auto-power-on / Wake-on-LAN/ RTC |

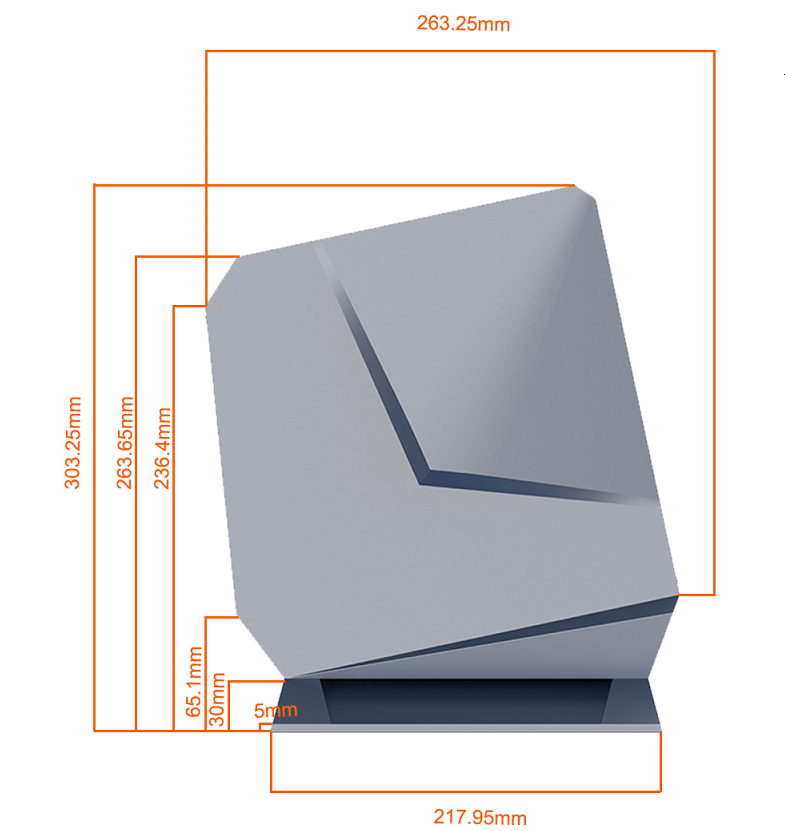

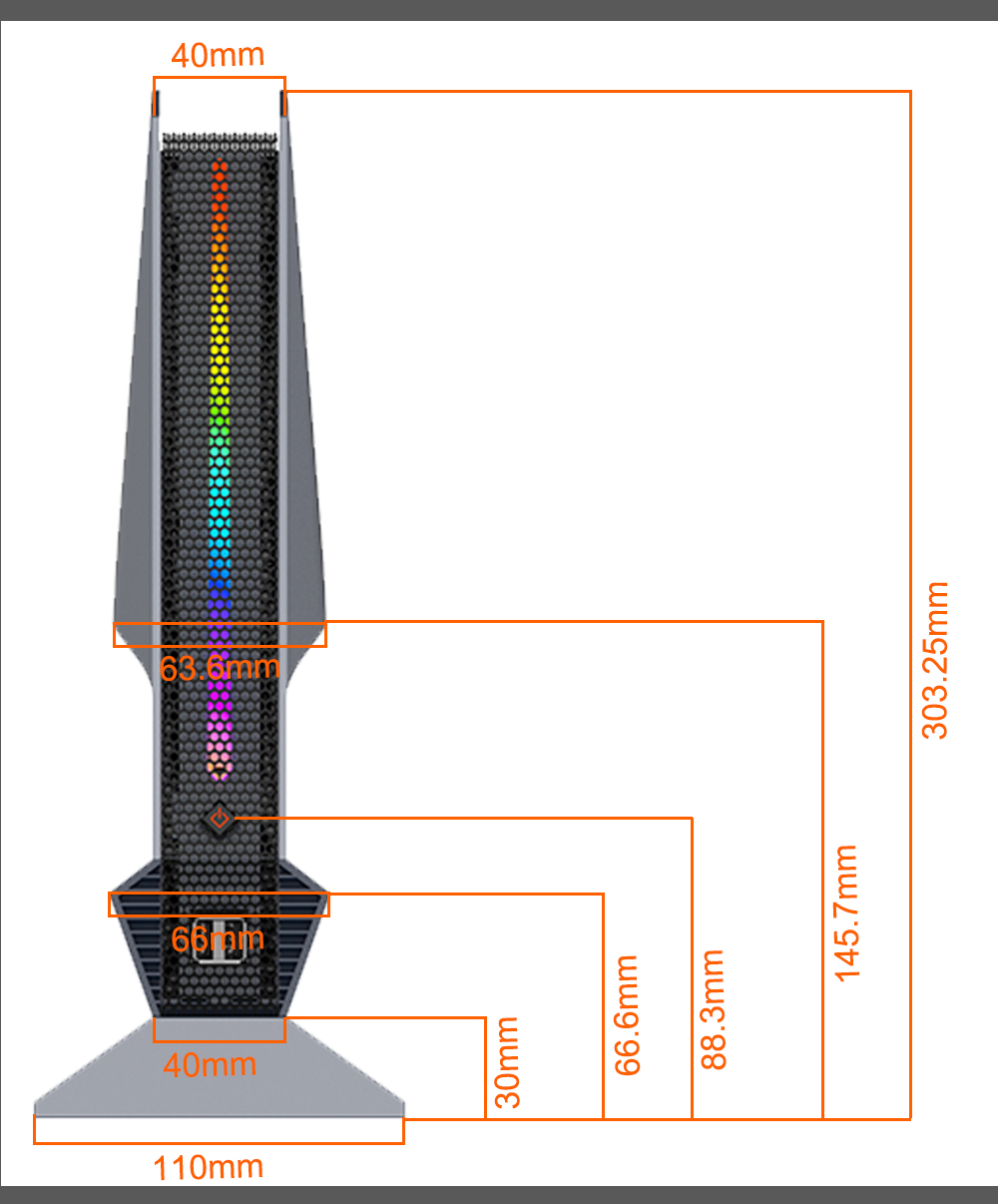

Size | 26.3*30.3 *4.0cm |
Power | 1* DC (55*25) 19V , 1* ATX 8pin 19V (optional ) |
OS | Windows&Liunx |
N.T | 1.37KG |
G.T | 3.2KG |
