JFTC4200UITA
JF
- 2 Intel i211 Gigabit RJ45 LAN and 2 COM can change to RS485 from BIOS.
- Built-in one SIM card slot for 3G/4G Module.
- Full Aluminum Alloy Silver/Black color shell for heat dissipation, Exquisite production craft on outside design.
- Fanless system without cooling fan, fit for industrial grade field, work as long as 24 hours.
- Support Watchdog, Auto power on, RTC Wake Up, Non-disk boot, State lamp interface, Trigger switch(wafer 1*2).
- Low consumption TDP only 15W and can be mounted on the wall.
CPU: Onboard Intel Core i5 4200U 1.6GHz Max 2.6GHz(Turbo boost Technology) Dual Cores 4 threads
CPU: Onboard Intel Core i7 4500U 1.8GHz, Max 3.0GHz(Turbo boost Technology) Dual Cores 4 threads (Optional)
Basic Information: | |
CPU | Intel Core i5-4200u / Intel Core i7-4500u |
TDP | 15W |
Motherboard | Intel CRESCENTBAY ( Lynx Point-LP ) |
BOIS | American Megatrends Inc. 5.6.5 |
Chipset | Intel Haswell |
Memory | 1 x SO-DIMM DDR3L Slot, Support 4GB/8GB DDR3L 1333/1600, LPDDR3 1333/1600 |
OS | Windows 7/Windows 8/Windows 10/Linux |
PXE | YES |
Audio | ALC662 HD Audio(Line-in, Line-out, Mic-in) Intel Lynx Point-LP HD Audio Controller |
Network | Onboard Intel i211 Gigabit Network Connection 10/100Mbps/1000Mbps BaseT LAN |
Video | Intel Haswell- ULT Integrated Graphics Controller Intel HD Graphics 4400 |
Input/output port | |

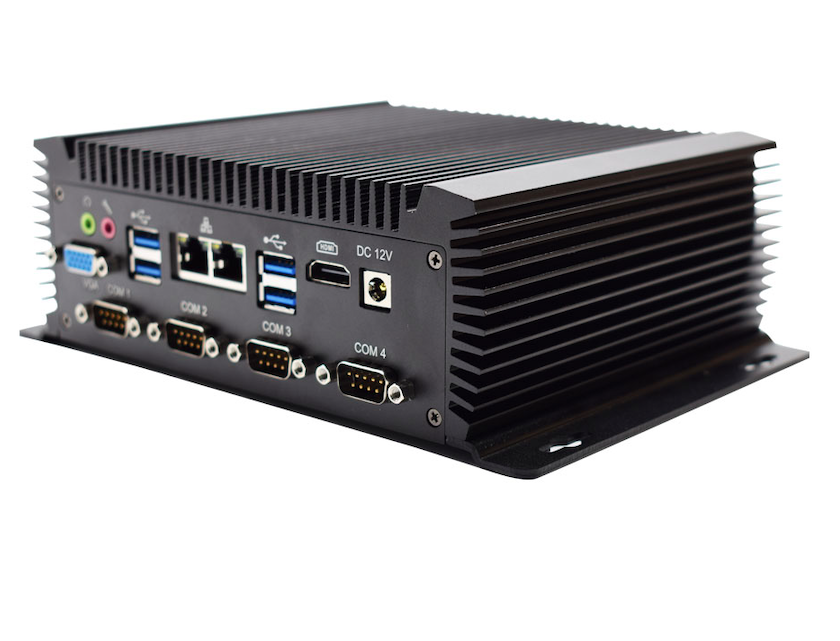

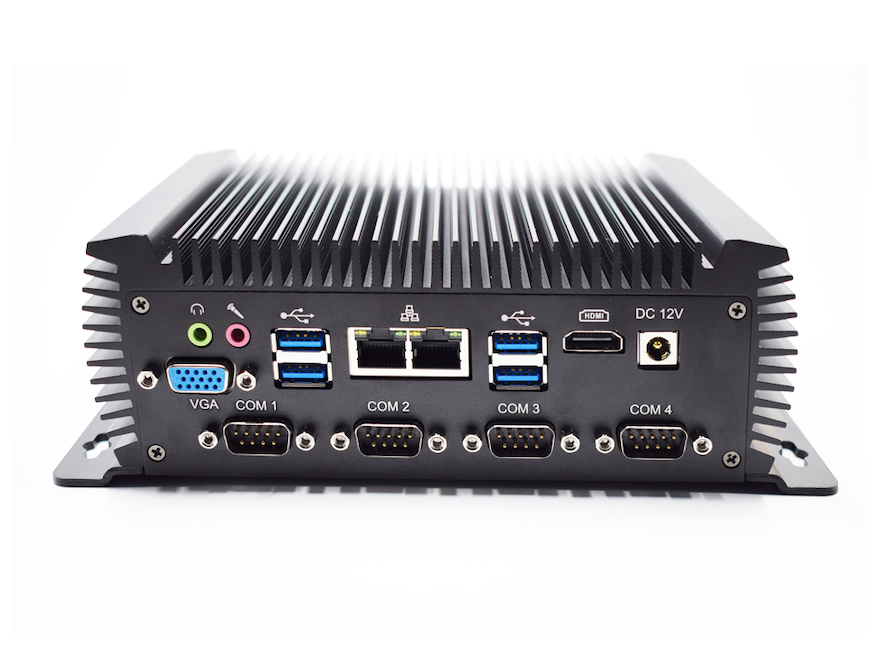

Switch | 1 x Power On/Off Switch |
Power | 1 x 12V DC In |
LED | 2 x LED |
USB | 4 x USB2.0, 4 x USB3.0 |
Display | 1 x VGA, 1 x HDMI |
LAN | 2 x RJ45 Intel Giga LAN |

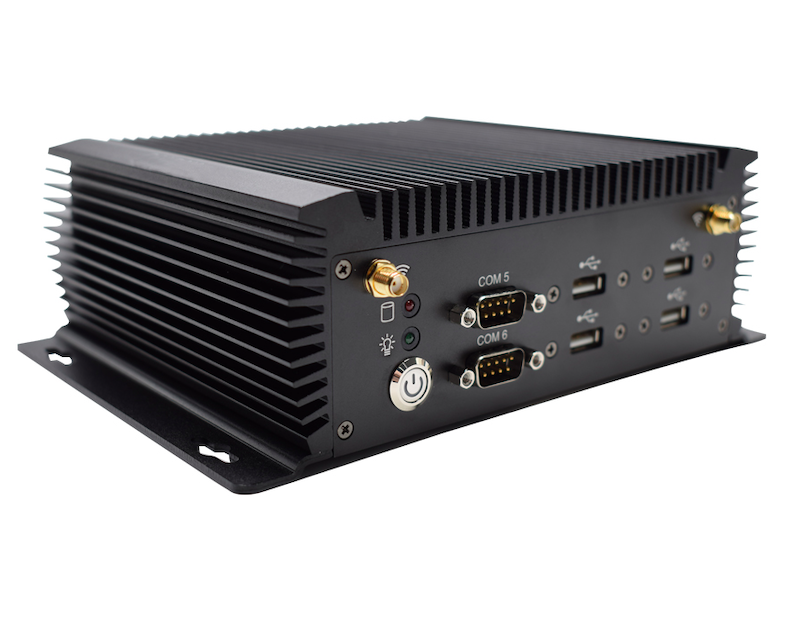

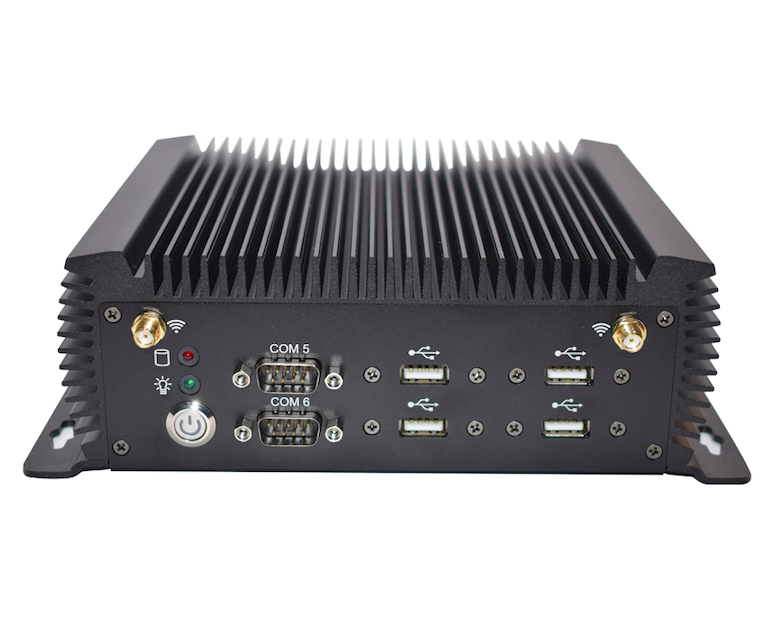

COM | 6 x COM RS232(3 line) ports, COM5 COM6 can change to RS485 from BIOS |
Audio | 1 x MIC, 1 x SPK |
Others | 1 x SIM card slot built-in |
Storage | |
MSATA | 1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s |
SATA | 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s |
Wi-Fi | |
Module | 1 x mini PCIE-half port for Wi-Fi module 1 x mini PCIE-full port for 3G/4G module |
Antenna | 2 x inner RF cables and 2 x external antennas |
Power and Working Environment | |
Input | DC100-240V AC/50-60Hz |
Output | DC +12V~+19V, recommend 12V/5A |
Operating Temperature | -20/+75 Centigrade |
Storage Temperature | -40/+80 Centigrade |
Relative Humidity | 0%~90% (non-condensing) |
Product Dimension & Details | |
Size | 210*150*69mm |
Weight | Net 1.6kg, Gross 2.5kg |
Shell | Black/Silver color aluminum alloy(any customized color for bulk order) |
Mounting | 4 Mounting holes on case |
Cooling Mode | Fanless |
Functions | Watchdog, Auto power on, RTC Wake Up, Non-disk boot, State lamp interface, Trigger switch(wafer 1*2) |
Package Content | |
Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag |
Optional | Wi-Fi antennas, 1xHDMI cable, 1xUser Manual, 1xLong Screws Bag |
