JFTC7640HSN
JF
- DDR5 memory .
-Support five display :HDMI + Type-C+DP .
-Support 2*M.2 NVME PCI-E 2280 SSD.
-Support wifi 6.0+BT and TPM 2.0 .
- With Dual speakers .

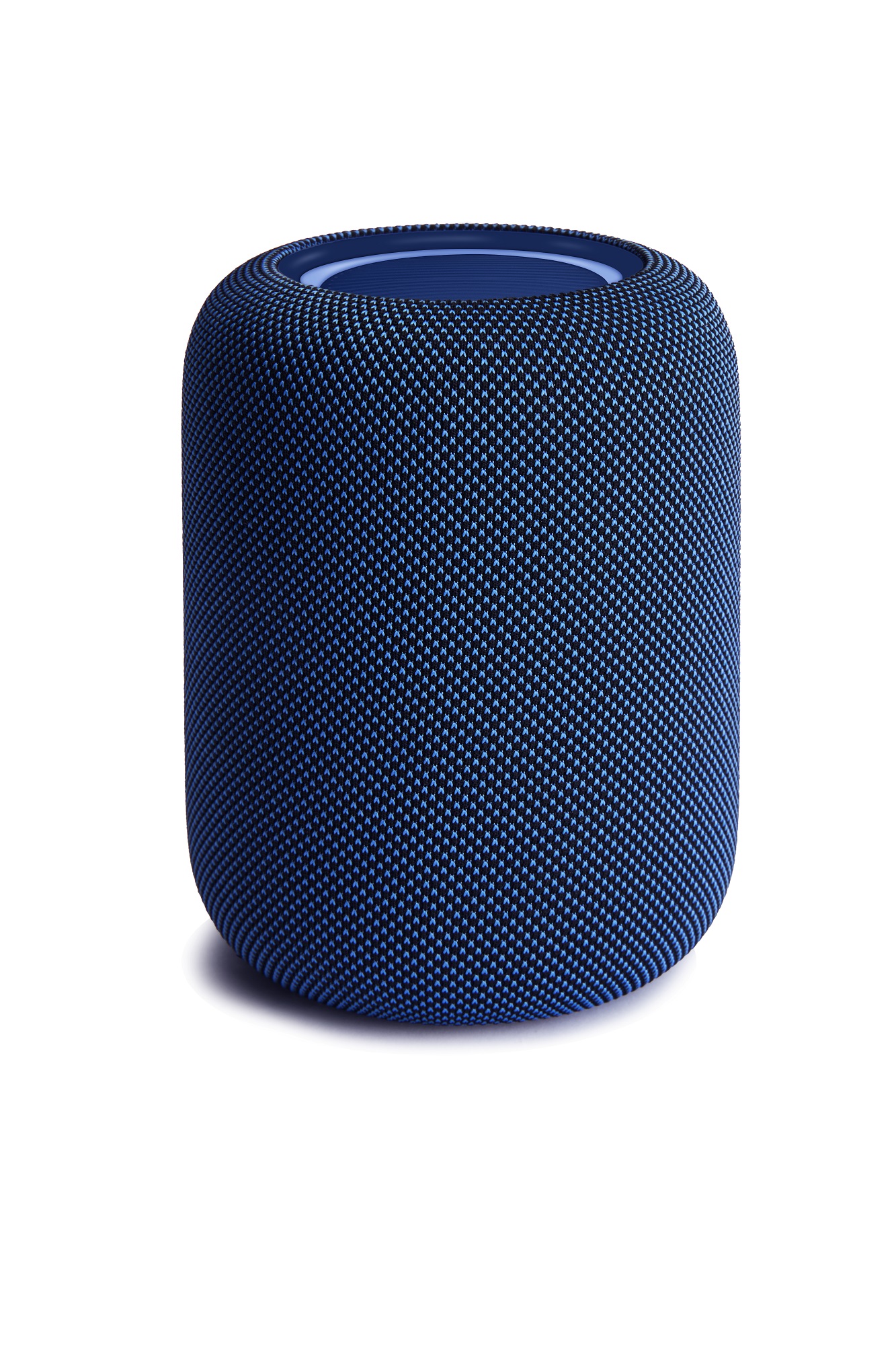

Product Appearance |
|||
Type |
Spec. |
Standard Configuration |
Optional |
Product |
Product Type |
Mini PC |
|
Special |
With 2*speaker |
||
Dimension |
Diameter:116.5mm--- Height:166.5mm |
||
Case Material |
Cloth+PC+ABS |
||
Weight |
|||
System Hardware Configuration |
|||
Type |
Spec. |
Standard Configuration |
Optional |
CPU |
Model |
AMD 7000/8000 series |
7640hs/8745hs/8845hs etc |
manufacturing process |
TSMC 4nm FinFET |
||
core |
8 cores and 16 threads |
||
cache |
L2: 8MB L3:16MB |
||
base speed |
3.8 GHz |
||
Maximum speed |
5.1 GHz |
||
power （TDP） |
45W |
||
GPU |
Model |
AMD Radeon™ Graphics |
|
core |
12 |
||
speed |
2700 MHz |
||
resolution |
/ |
||
Memory |
Model |
SO-DIMM DDR5 x 2 |
|
speed |
DDR5 4800 MT/s |
||
Capacity |
Up to 64GB |
||
Storage |
SSD Capacity |
SSD(Up to 2TB) |
|
SSD Type |
M.2 2280 NVME PCIE *2 |
||
RTC |
BIOS Support |
Real-time clock, timed power-up |
|
power-on |
BIOS Support |
Supports automatic boot after power-on |
|
diskless network |
BIOS Support |
Support uefi diskless boot |
|
TPM |
CPU Integrated TPM |
Supports TPM 2.0(integrated in CPU) |
|
multi-screen |
video output |
HDMI*1+DP*1+TYPEC*1 |
|
LED |
status indicator |
LED breathing |
|
Internet Connection |
|||
Type |
Spec. |
Standard Configuration |
Optional |
WIFI |
Model |
M.2 E_Key |
|
protocols |
IEEE 802.11 a, b/g, n, ac，ax (wifi 6) |
||
Bluetooth |
Model |
M.2 E_Key |
|
protocols |
Support Bluetooth 5.2 |
||
Ethernet |
LAN1 |
10M/100M/1000M/2.5G Adaptive |
|

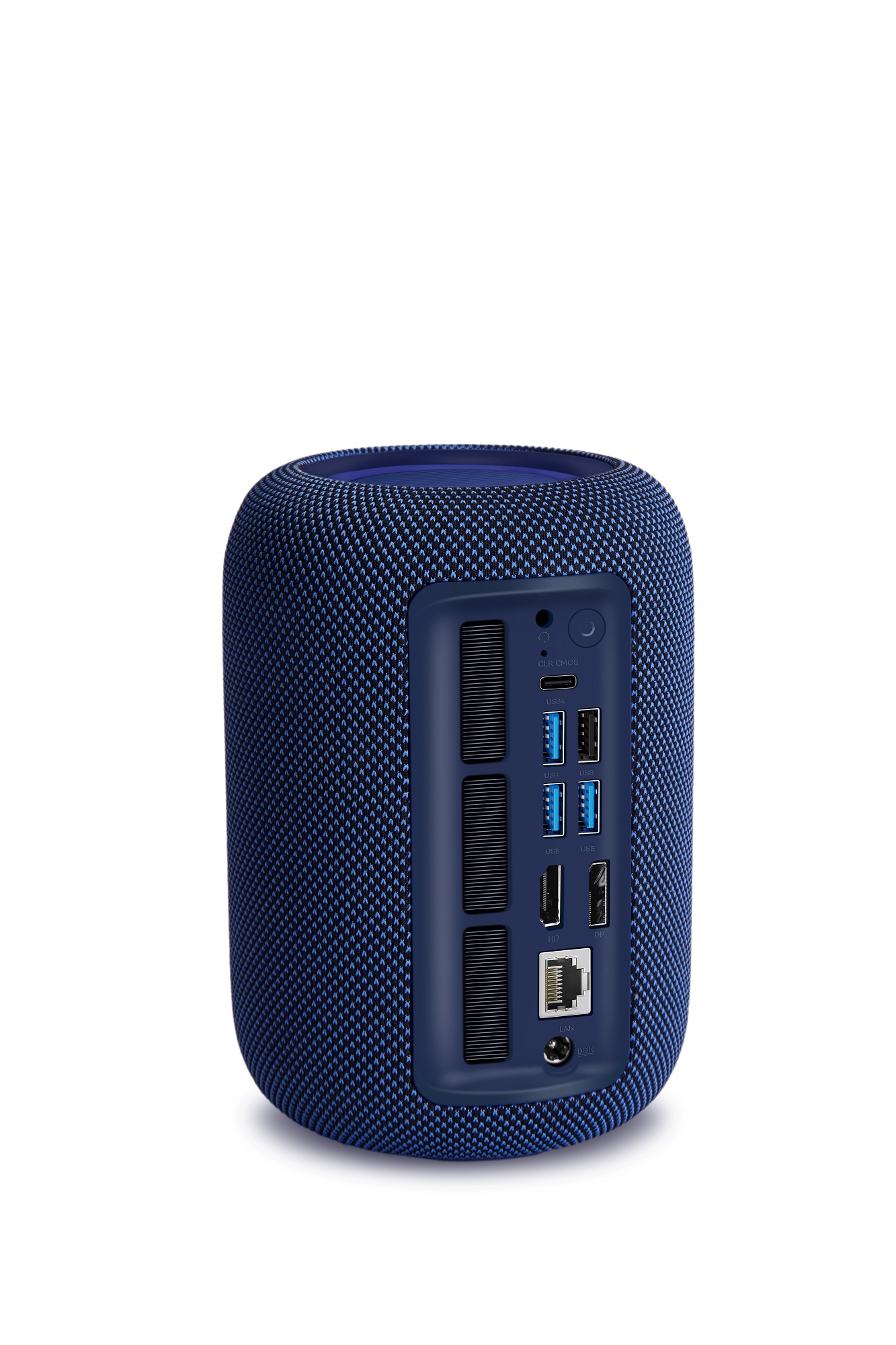

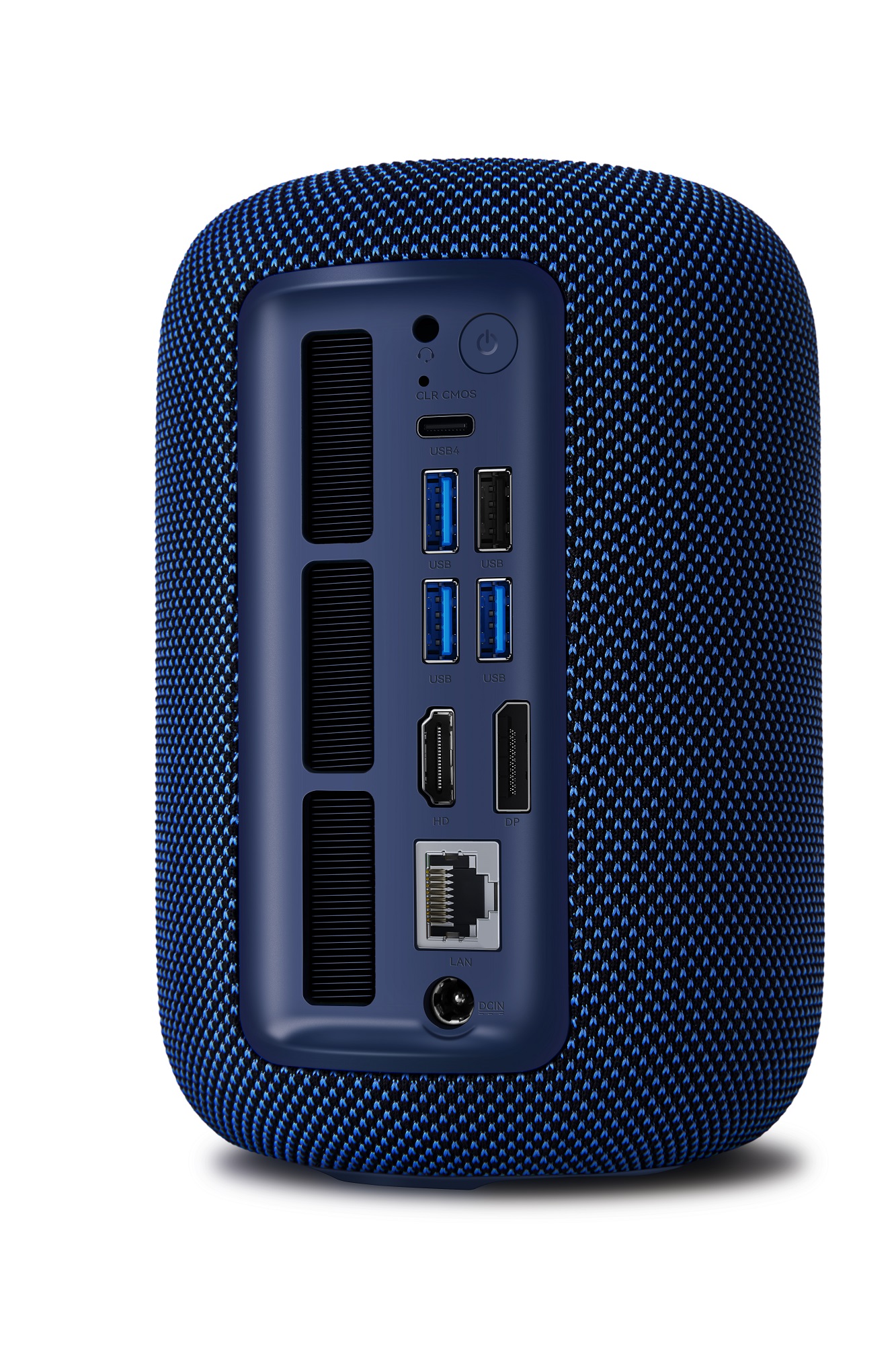

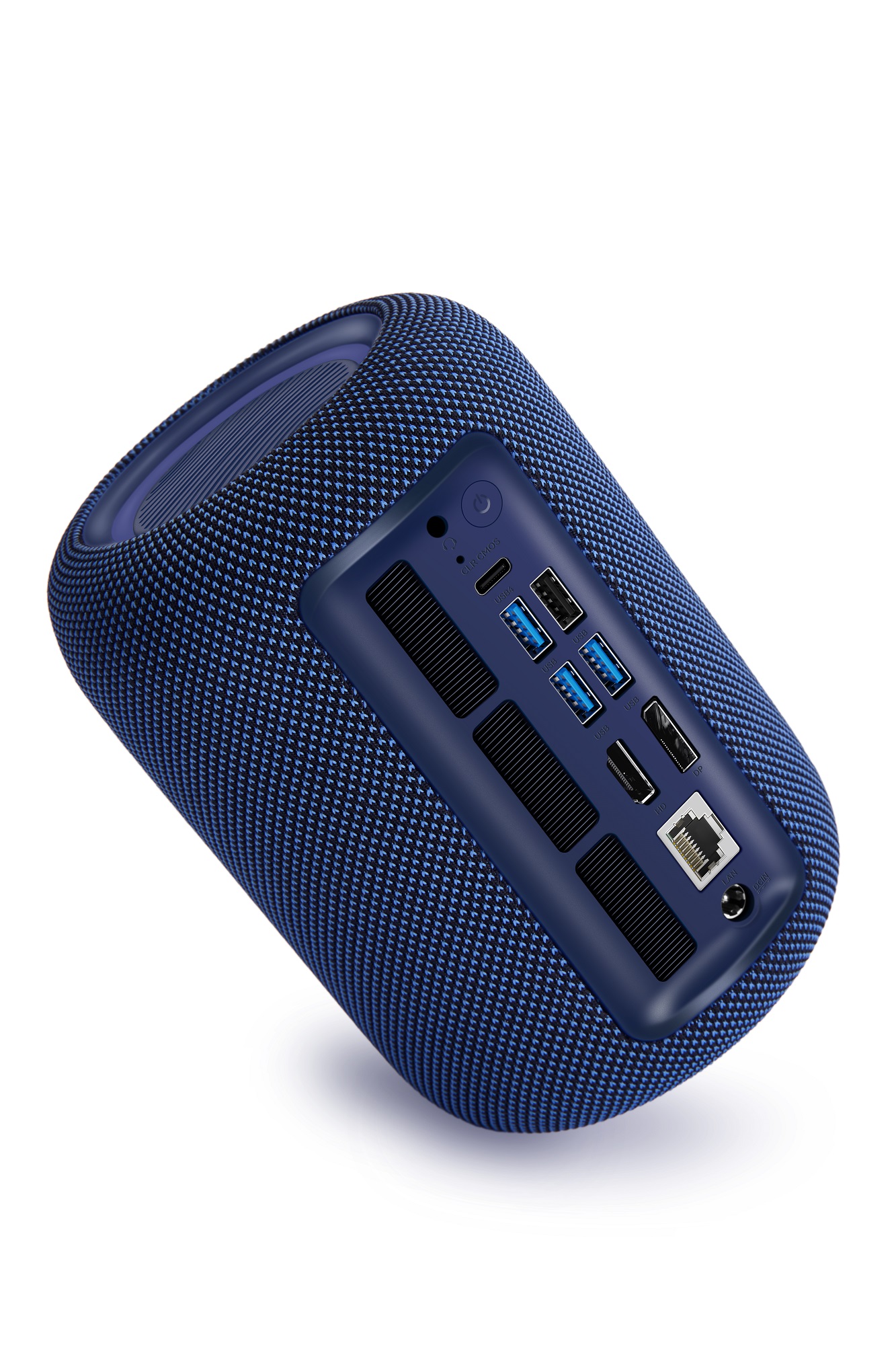

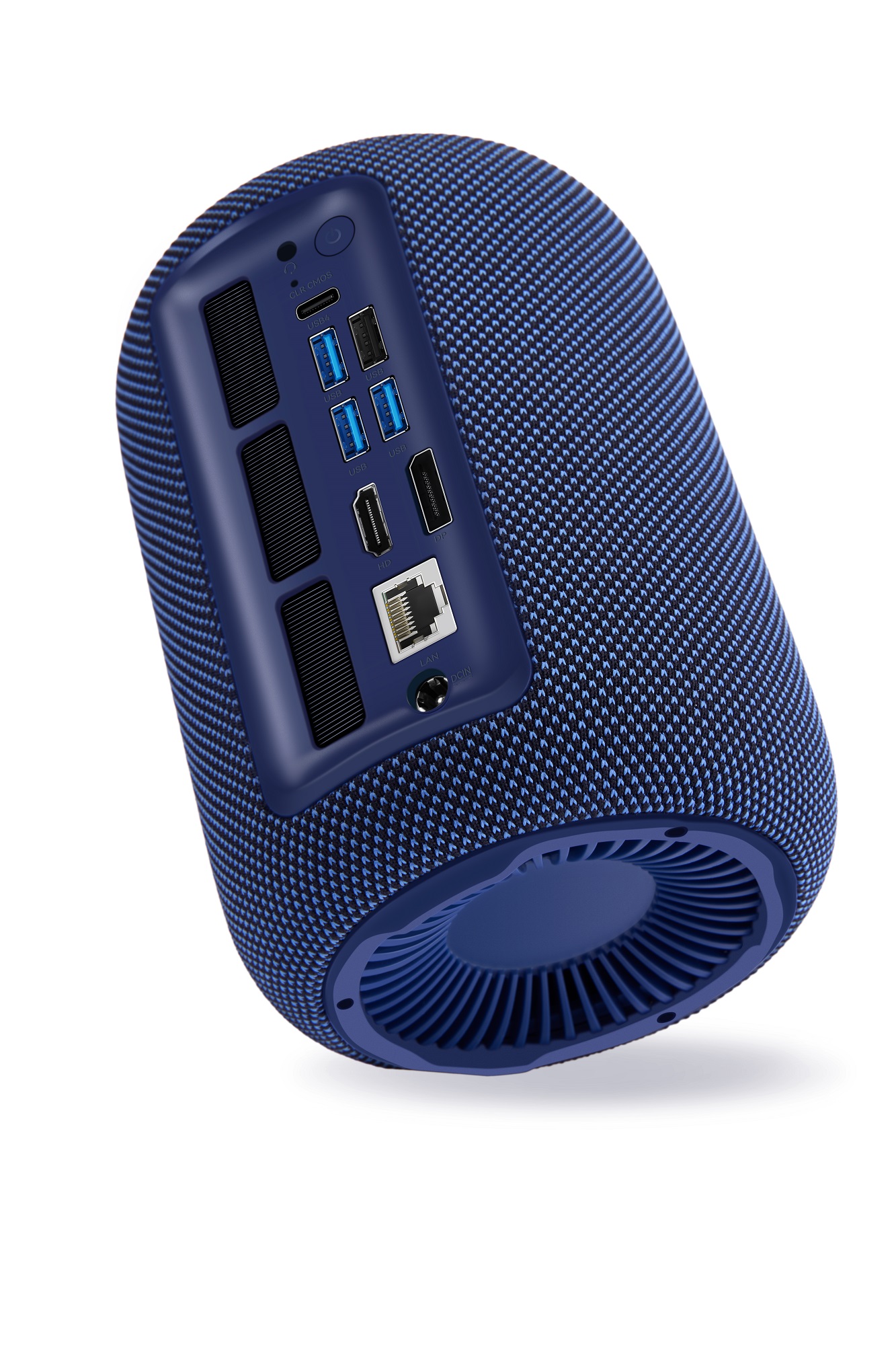

interface |
|||
Type |
Spec. |
Standard Configuration |
Optional |
USB |
USB2.0 |
USB2.0*1 |
|
USB |
USB3.1 |
USB3.1 Type-A*3 |
|
HDMI |
video output |
HDMI 2.1*1 |
|
DP |
4K audio and video output |
DP 1.4*1 |
|
RJ45 |
2.5G Ethernet |
10/100/1000M/2.5G*1 |
|
Type C |
USB4.0 |
TYPEC*1 Data: 10&40Gbps/Display(4K 60Hz) |
|
DC IN |
Power Supply Input |
DC Jack x1 5.5/2.5mm |
|
Audio |
Audio-in/out |
3.5mm Phone Jackx1（Audio Jack） |
|
speaker output |
5W Speaker *2 |
||
Antenna |
FPC Antenna 1 |
WiFi 2.4+5G+BT x1 |
|
FPC Antenna 2 |
WIFI 6.0 |
||
Software Configuration |
|||
Type |
Spec. |
Standard Configuration |
Optional |
OS |
Version |
Win11/Linux |
|
Environment |
|||
Type |
Spec. |
Standard Configuration |
Optional |
Environment |
Working Temperature |
0~45℃ |
|
Memory Temperature |
-20~70℃ |
||
Humidity |
5%-95% @ 40 °C (no condensation) |
||
ΔT |
MAX: 23 °C |
||
Accessory |
|||
Type |
Spec. |
Standard Configuration |
Optional |
Power Supply |
Desktop/Plug-in |
Input 100~240V 50/60Hz Output 19V/6.3A DC Header 5.5*2.5mm |
|
