JFTCN150MS
JF
-1*SO-DIMM DDR4 memory slot up to 32GB.
-Support four display :HDMI + Type-C .
-Support 2*M.2 NGFF SATA +PCI E SSD.
-Low consumption TDP only 15W and can be mounted on
the wall .
-Support Wake on Lan ,Auto power On, RTC and PXE.

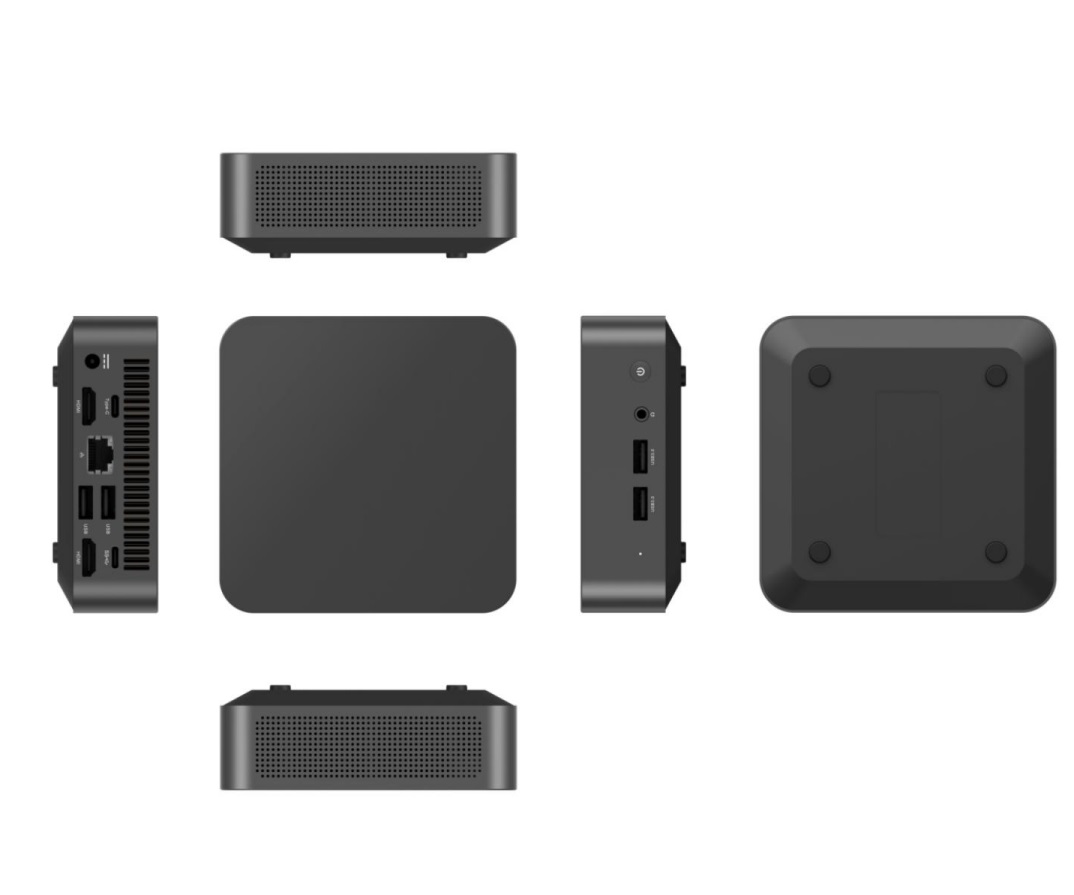

Product appearance |
||
Type |
Specs |
Description |
Product |
Product Type |
Mini PC |
Size |
112.2*112.2*37mm |
|
Case Material |
Plastic |
|
Weight |
300G |
|
System Hardware configuration |
||
Type |
Specs |
Description |
CPU |
Model |
Intel® Processor Alder Lake-N, N150 |
CPU |
4 Cores, 4 Threads, Base Frequency 0.8 GHz, Max Turbo Frequency 3.6 GHz/ TDP:6W |
|
GPU |
Type |
Intel® UHD Graphics |
RAM |
DDR |
8GB or/16G/SODIMM*1, DDR4, Max 3200MHz |
Storage |
SSD |
128G or/256G/512G/M.2 NGFF SATA+PCIE (2242 1+2280 1) |
Speaker |
/ |
No, built in ALC269 VC/VB Codec |
Network |
||
Type |
Specs |
Description |
WIFI |
WIFI model |
WIFI5, BT 5.0 |
Ethernet |
USB to ethernet |
RTL8111H support 10/100/1000Mbps |
I/O |
||
Type |
Specs |
Description |
USB |
USB |
USB 4 (Front:: USB 3.12, Back: USB 2.0*2) |
Type-C |
Type-c |
Full function TYPE-C *2 |
Audio |
Audio output |
3.5mm , Section 4 |
DC-IN |
Power supply |
5.5*2.5MM, 12V/3A |
HDMI |
Video output |
HDMI A, 1.4B *2 |
RJ45 |
Ethernet |
10/100/1000M(RTL8111H) |
Power button |
support |
Power-on indicator light (white, breathing in standby mode), board reserved with marquee light interface |
Stanard accessaries |
||
Type |
Specs |
Description |
Power supply |
Standard |
5.5*2.5MM, 12V/3A |
Software |
||
Type |
Specs |
Description |
OS |
Version |
Windows 11 Pro |
office |
N/A |
|
