Master Control | |
CPU | Quad-core Cortex-A9 2.0Ghz |
OS | Linux |
Storage | |
RAM | 2GB |
Flash | 8GB flash |
Performance | |
VGA | 800*600/1024*768/1366*768/1440*900/1280*1024 |
HDMI | 1280*720，1920*1080(MAX) |
Working Environment | |
Graphics chips | Graphics card Type Mali400 1080p |
Lan | 10M/100/1000Mbps |
Audio | Standard 3.5 audio input and output |
Power | DC5V/2A （Port：The inner diameter 2.5mm，The outer diameter 5.5mm） |
Energy consumption | Static Power less than 5W,Maximum Power less than 10W |
Working Temperature | -20℃～+45℃ |
Upgrade | Firmware upgrade |

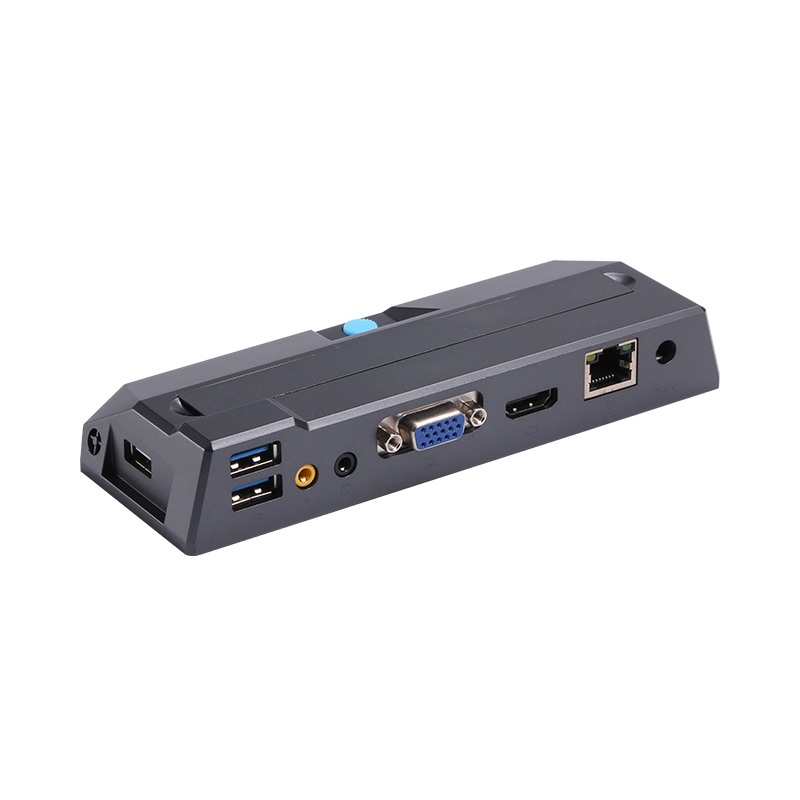

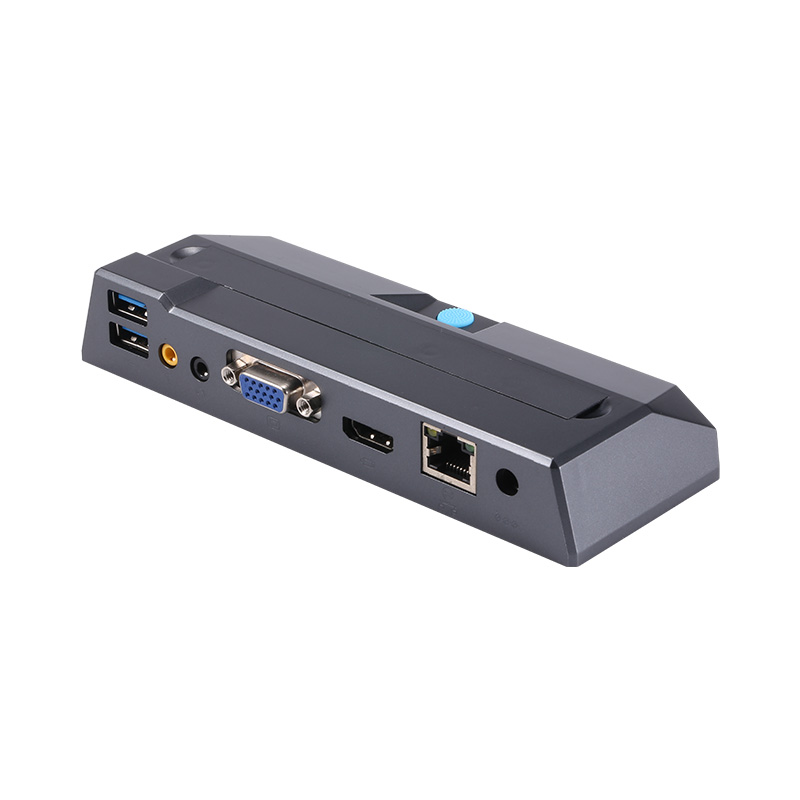

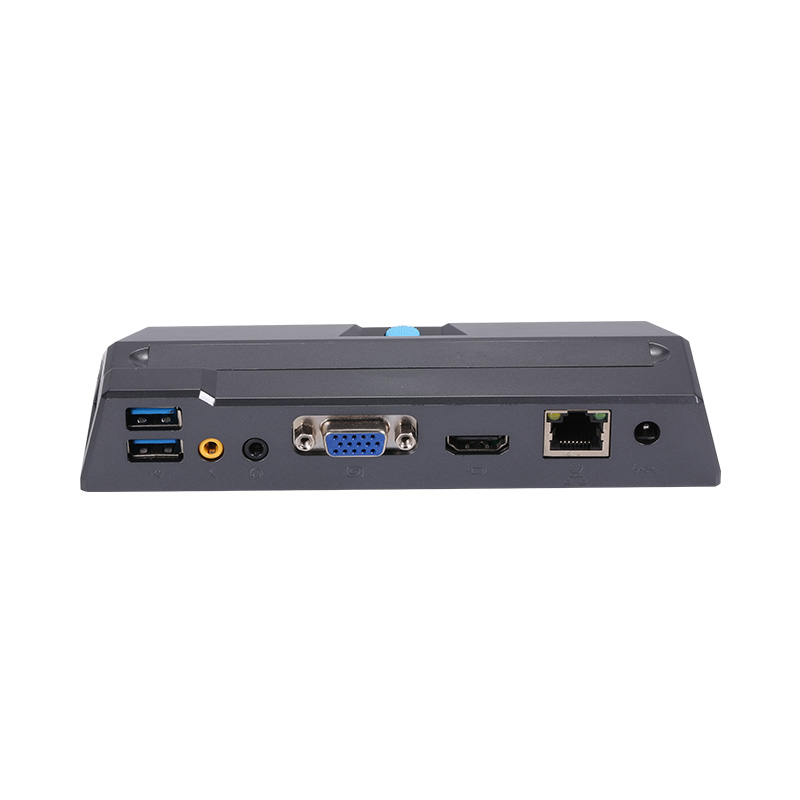

I/O | VGA,HDMI,USB2.0*3,RJ45,Audio Input/Output,Power Port |
Protocol | |
HVDP / RDP 10 / Remote FX | |

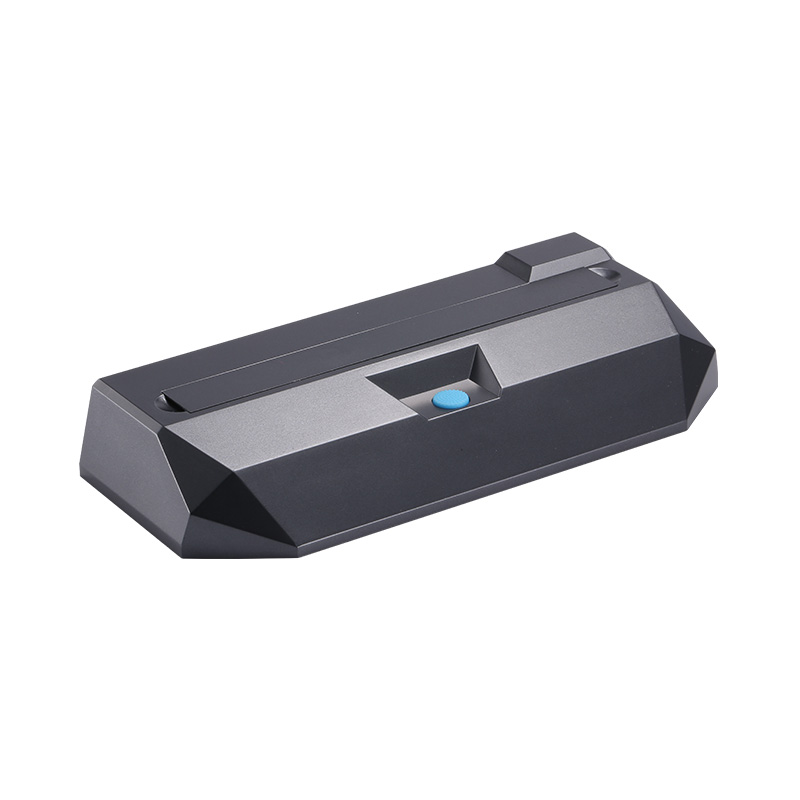

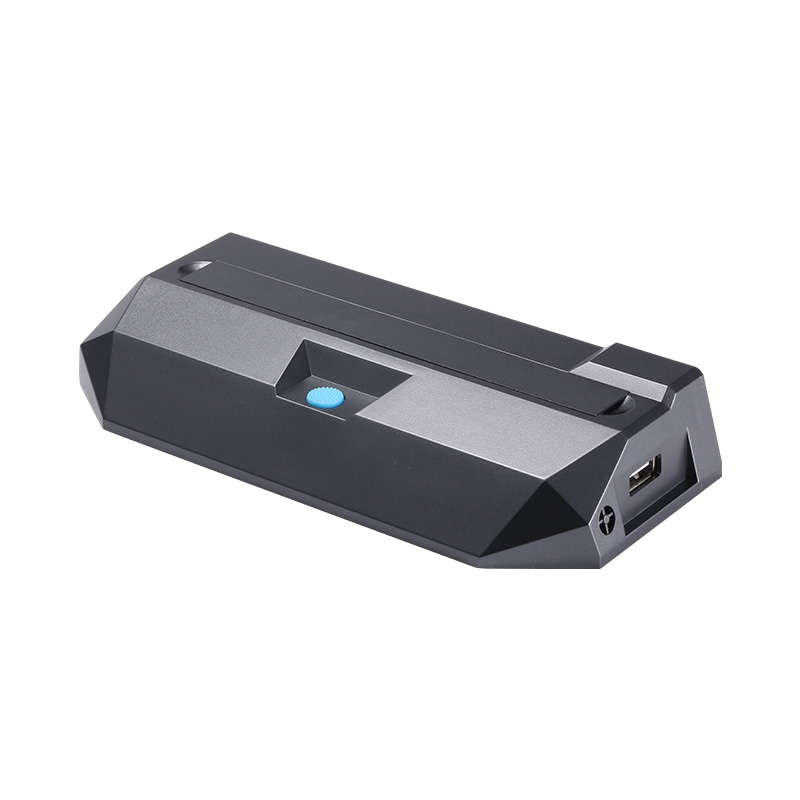

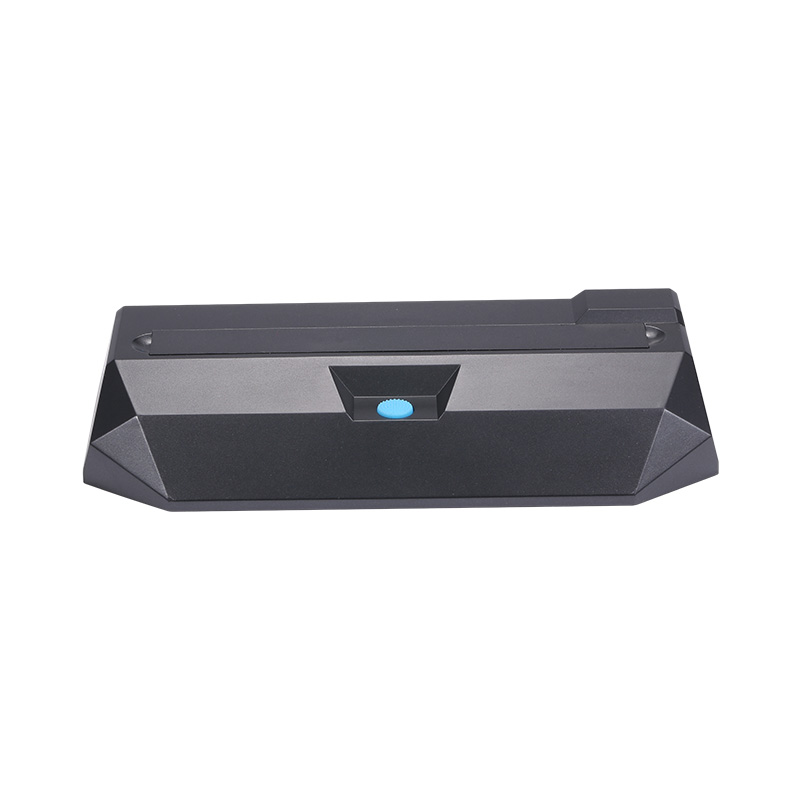

Appearance | |
Size | 160x70x27mm |
Weight | 0.35kg |
Shell Material | Black plastic shell |
