Model | JFDPC12900FT | ||
Operation system | Win10/11 PRO OS (free version ) (Optional) | ||
Motherboard | Chipset | Intel 610 | |
Model | H610 | ||
Processor | Cores | cpu | Intel core i9 |
Model | I9-12900F/KF | ||
Code | Alder Lake | ||
Photolithography | Intel 7 | ||
Cores | 16 | ||
Threads | 24 | ||
Efficient core frequency | 3.8GHZ | ||
Maximum frequency | 5.1GHz | ||
TDP | 65W | ||
Cache | 30M | ||
Fan | Tower-type copper tube air-cooled radiator | ||
Graphic card | Core | Name | Nivida P620 2GB |
core frequency | 1341MHZ | ||
Main frequency | 1455MHZ | ||
Power consumption | 45W | ||
Video memory | Type | GDDR5 | |
bit | 128bit | ||
Interface ports | 4 PCS Mini DP ports | ||
Memory | Type | DDR4 | |
Size | 32G (16G *2) | ||
Frequency | 2666 | ||
Stroge | Interface ports | 1TB M.2 SSD | |
Transmission specification | sata 3 | ||
Channel (Bus) | 550M | ||
LAN | LAN | Gigabit Lan 10/100/1000 Mb/s | |
Interface ports | USB | 2.0 | • 3×USB 2.0(build in ）+1*USB 2.0 (Case ) |
3.0 | • 2×USB 3.2 Gen 1 (build in ）+1*USB3.0 (Case) | ||
Video | VGA | 1*VGA (motherboard port ) | |
HDMI | • 1×HDMI 2.0(The motherboard interface is invalid when the graphics card is connected） | ||
DP | • 4×mini DP （Independent graphics card ） | ||
Audio | Chassis interface | • 1×Microphone/headphone combo | |
Onboard interface | 3pcs audio interfaces (line-in, front, microphone) | ||
Others | LAN ports | 1×RJ-45 LAN port | |
PS/2 | 2* PS/2 (Mouse and keyboard ) | ||
Power | Power supply | AC input 200-240V，50Hz | |
Power | 450W | ||
Case | Size | 300*166*352mm | |
Color | Black | ||
Material thickness | 0.8mm | ||
case | Type | matx | |

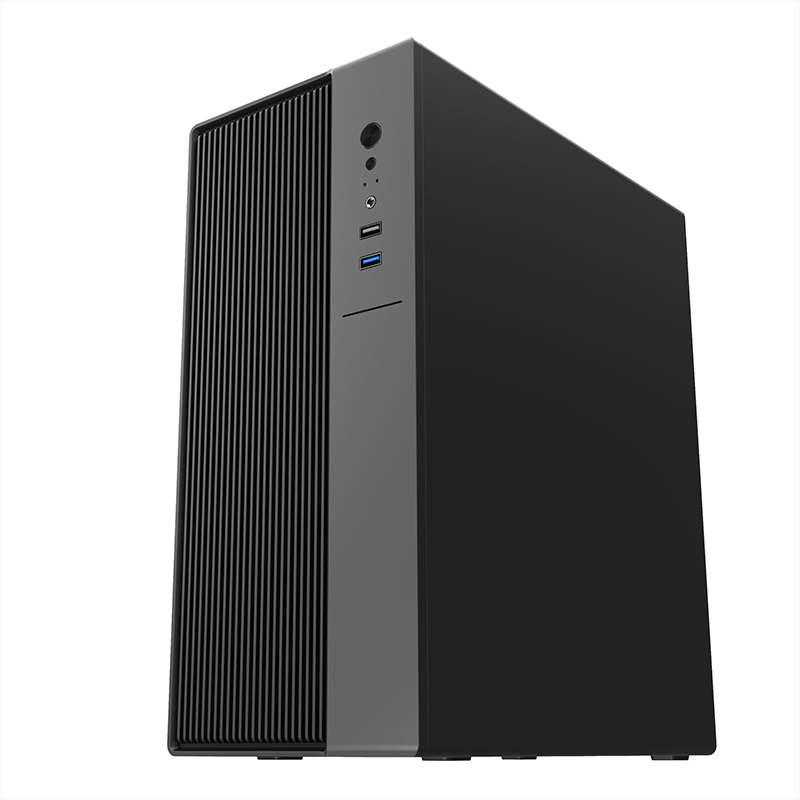

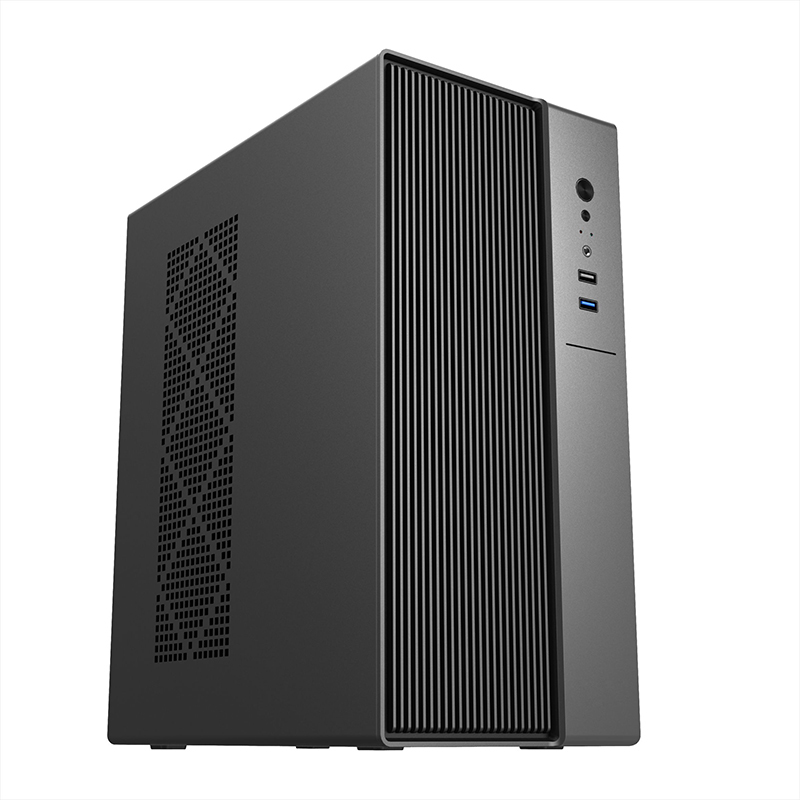

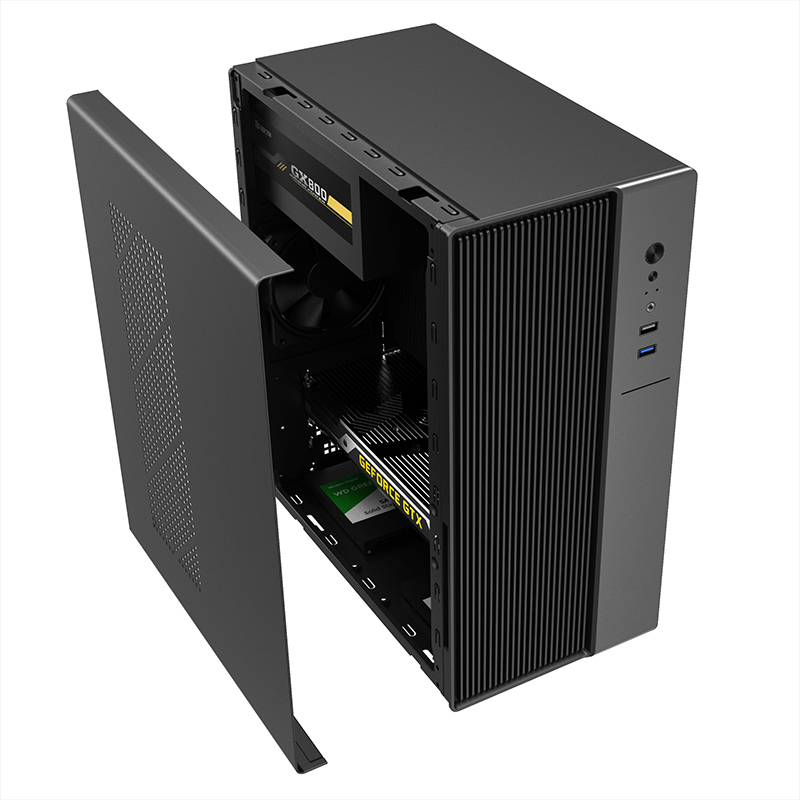

Photos |  | ||
Others | power supply cable | ||
Software | WPS | ||
Other funtions | N/A | ||
expansion | Memory | • 2×U-DIMM DDR4, support 3200MHZ (MAX 32G) | |
HDD | M.2 | 1×M.2 2280 | |
Motherboard SATA Ⅲ interface ports | 3 | ||
SATA Ⅲ 3.5 | 4×SATA 3.0 Interface: 3.5-inch hard drive | ||
PCIe | PCI-E X16 slot 1pcs; PCI-E X1 slot 1pcs | ||
other peripherals | USB/wiress keyboard and mouse | ||
