Optional intel 4/6/7/8/10/12/13th Gen Core i3/i5/i7 CPU.
2 x RJ45 Intel Giga LAN + 2 x DB9 232 COM.
Support VGA + HDMI 1.4 dual display output synchronously.
One embedded SIM card slot onboard for 3G/4G Wi-Fi.
Full Aluminum Alloy Black color shell for heat dissipation, Exquisite producation craft on outside design.
- Fanless system without cooling fan, fit for industrial grade field, work as long as 24 hours. - Low consumption TDP only 28W and can be mounted on the wall.
- Support AWAL, Wake On LAN, Watchdog, RTC functions.
Specs | |
CPU | Intel core i3 1215U ,3.3~4.4GHZ ,6 cores 8 threads |
RAM | 1 x SO-DIMM DDR5 Slot, Support 4GB~64GB (optional) |
HDD | 64G~2TB SSD /500G/1TB/2TB HDD |
Graphic card | Intel UHD Graphics （1.1GHz） |
BOIS | AMI BIOS,ACPI supported |
LAN | 10/100/1000 adaptive |
Audio | Intel High Definition Audio and USB Audio and HID |
Storage | 1*M.2 slot for NVME/NGFF 2280 SSD&1*Sata3.0 slot for SATA HDD or SSD,Support 6GB/S |
Display port | 2*HDMI 1.4 |
Chipset | Intel Alder Lake |

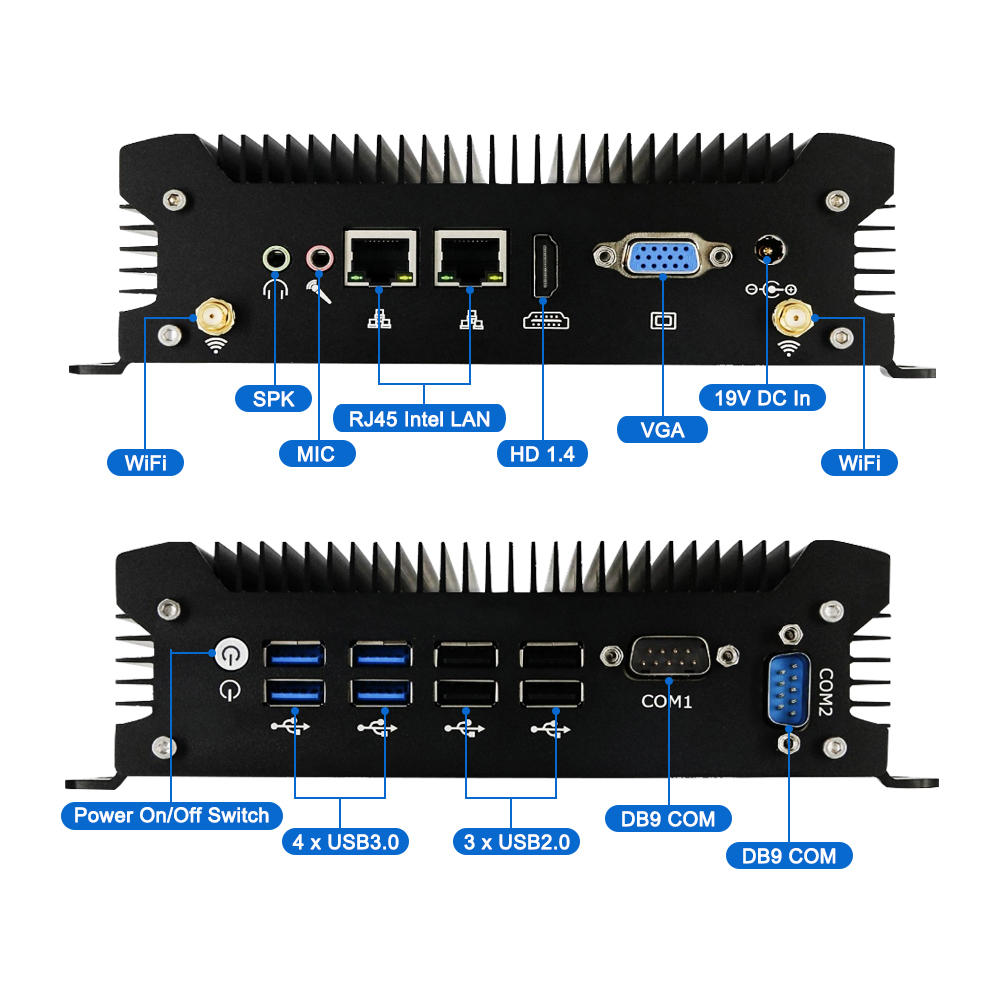

I/O | USB3.0*4 ,USB 2.0*4, 1*MIC,1*SPK,1*DC in,2*RJ45 , 2* DB9 232 COM |
Wireless | Support 802.11B/G/N protocol WIFI+Bluetooth |
Network | 2* Onboard Realtek RTL8111 Gigabit Ethernet NIC 10/100Mbps/1000Mbps BaseT LAN |

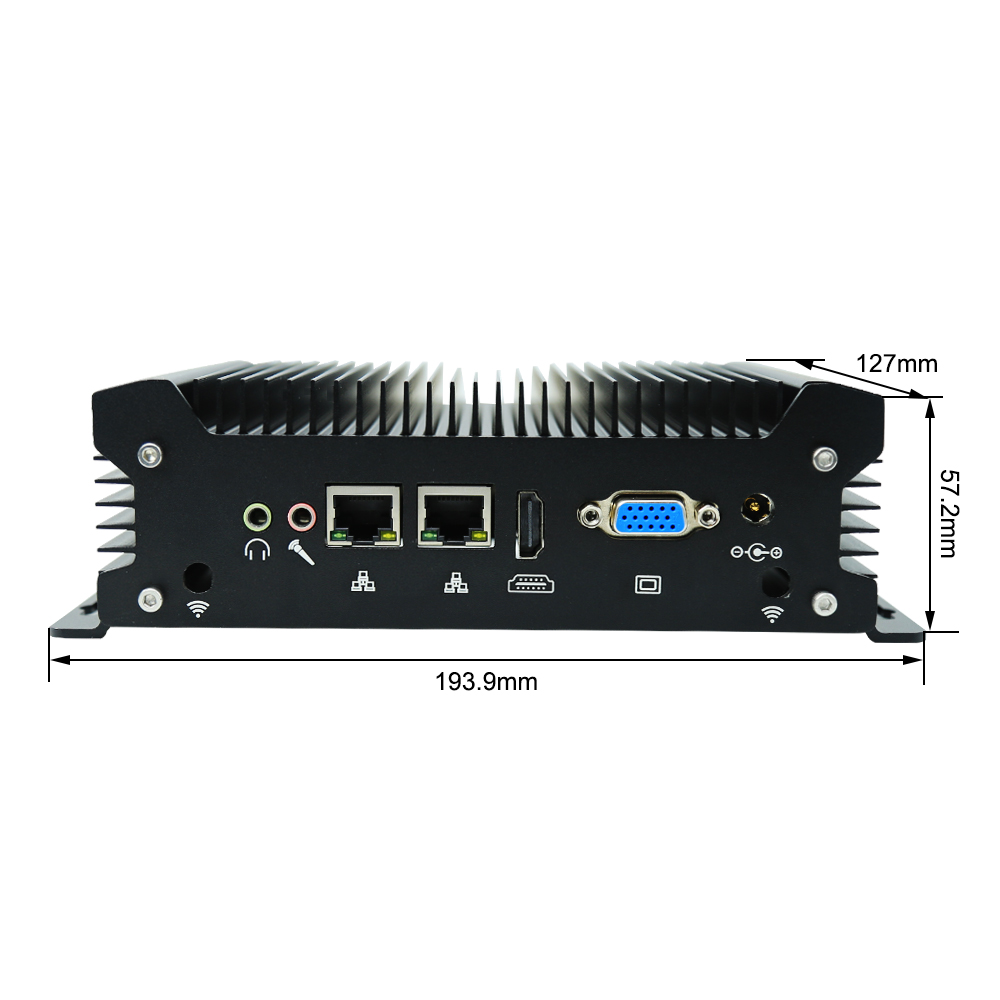

Size | 19.4*12.7*5.7cm |
Adaptor | DC 100-240V AC /50-60Hz 12V--5A |
OS | Windows&Liunx |
N.T | 1.5KG |
G.T | 2.0KG |
