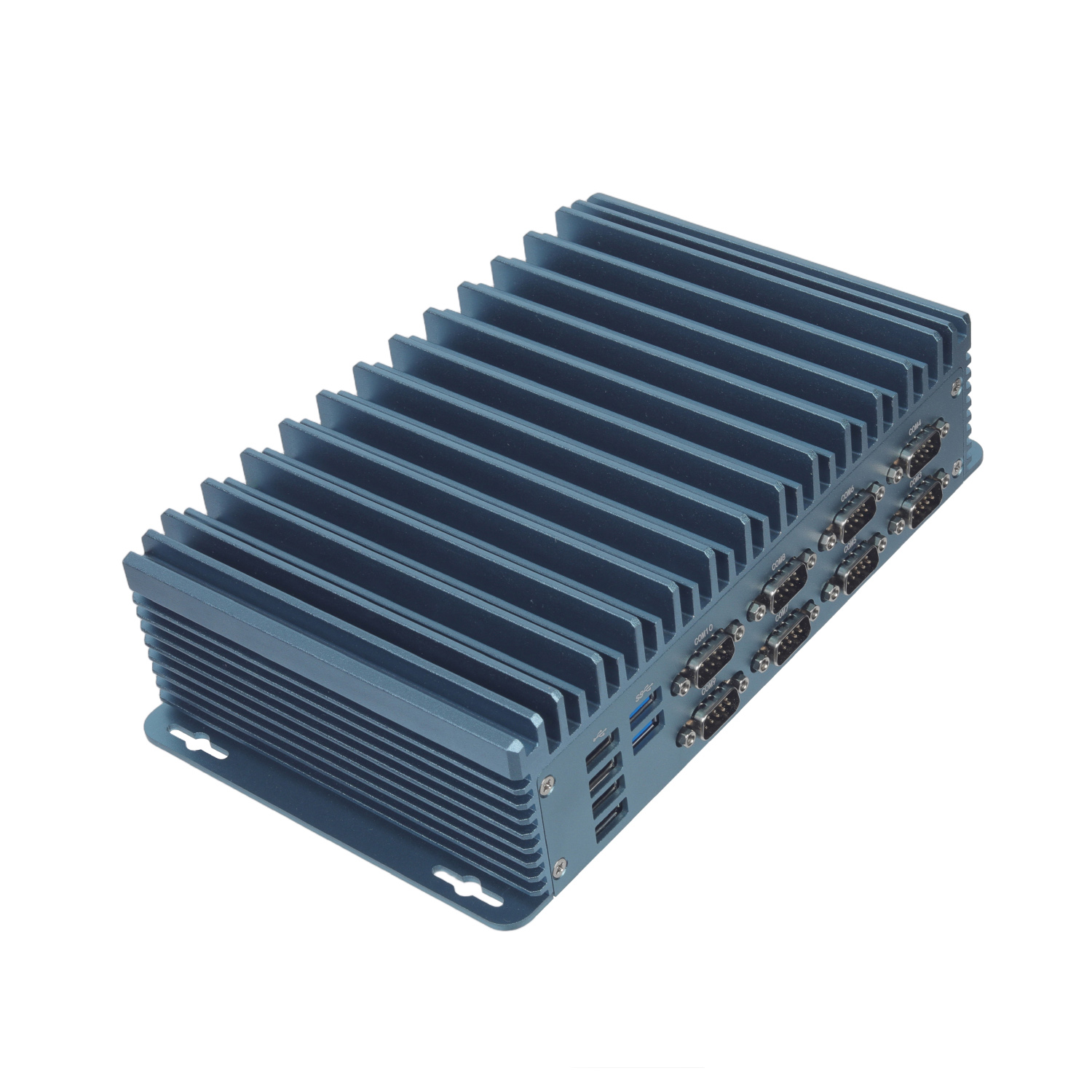

Full Aluminum Alloy shell, Exquisite production craft on outside design.
Fanless system without cooling fan for heat dissipation, work as long as 24 hours.

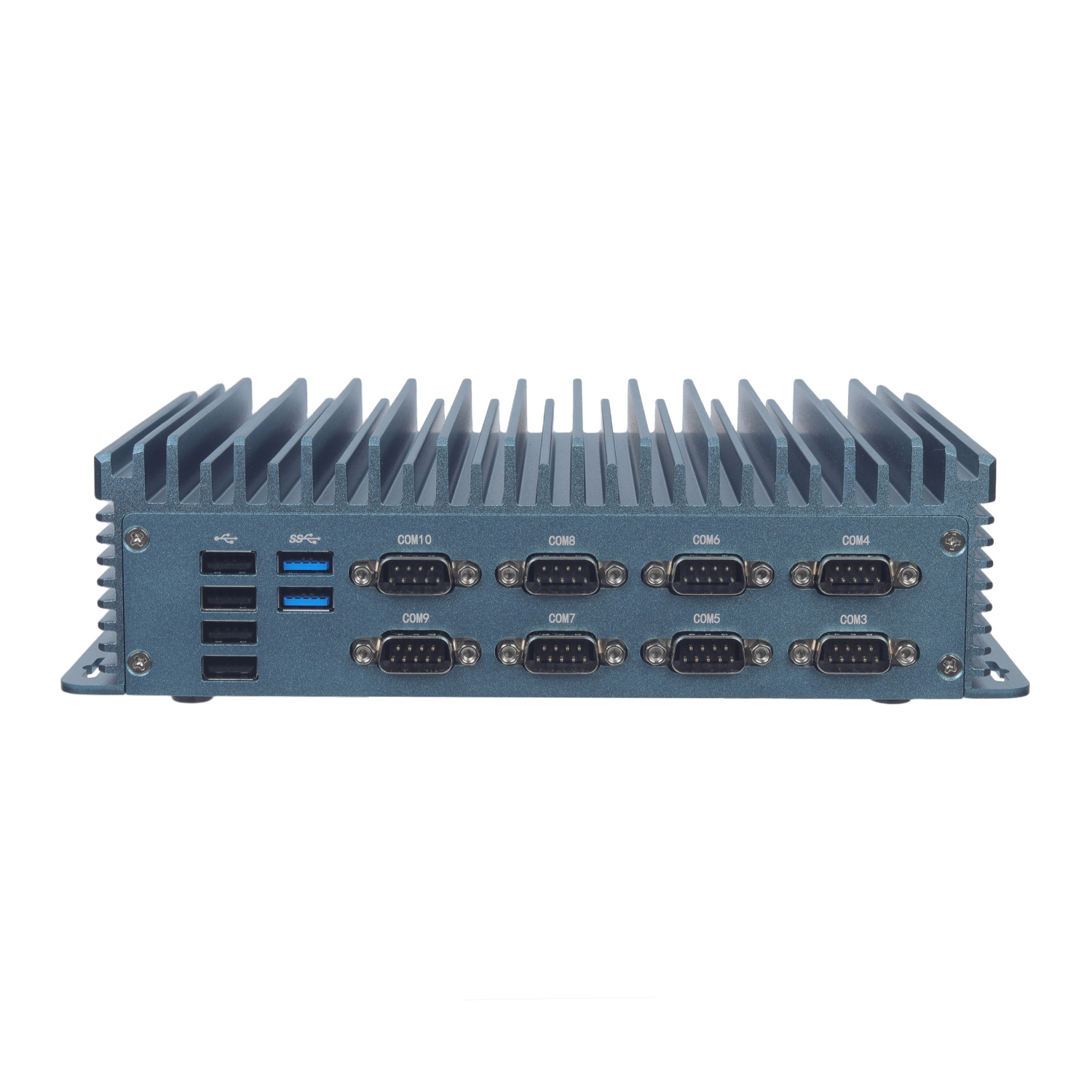

Dual Gigabit RJ45 LAN, 10*COM,embedded 2pcs SIM card slots for 3G/4G card .
Low consumption TDP only 10W, save much energy and eco-friendly.
Can install MSATA SSD+2.5” SATA HDD together.
Support VGA + HDMI dual display output synchronously, 4K HD player.
1*LPT_GPIO/25PIN ,1* LVDS,10 *USB ports.
Specs | |
CPU | Intel Celeron J1900 Processor 2.0GHZ,Max 2.42GHZ Quad core four threads |
RAM | 4G/8G DDR3L-1333MHZ (optional) |
HDD | 64G~2TB SSD /500G/1TB/2TB HDD |
Graphic card | Intel HD Graphics（688-854MHz） |
BOIS | AMI BIOS,ACPI supported |
LAN | 10/100/1000 adaptive |
Audio | ALC662 HD Audio, 6 channel sound |
Storage | M-SATA SSD&SATA HDD |
Display port | 1*HDMI,1*VGA |
Chipset | Bay trail |

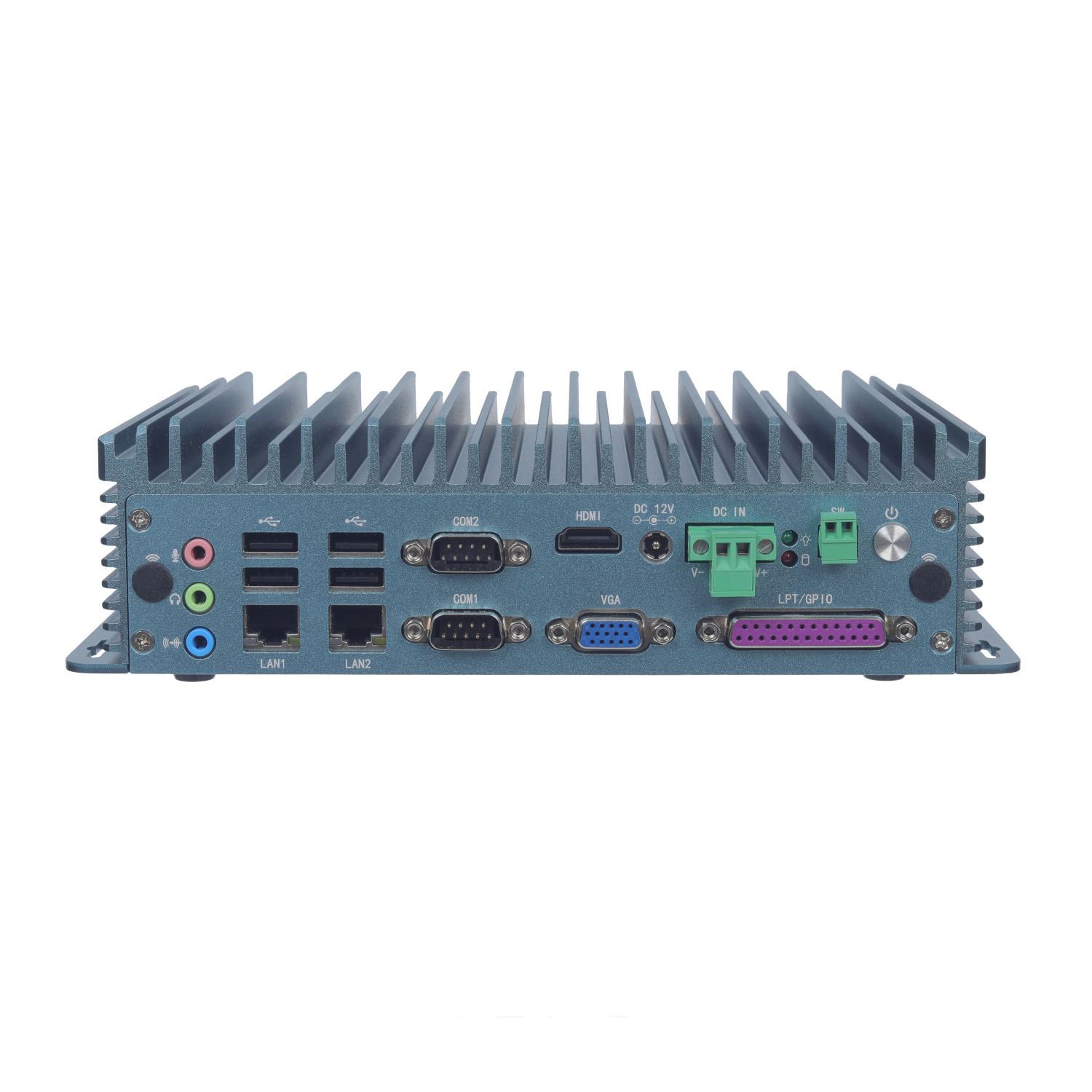

I/O | USB3.0*1 ,USB 2.0*9, 1*MIC,1*SPK,1*KB/MS,1*DC in, 2*RJ45,10*COM ports (COM1& COM2 support RS485) ,2*Sim card slots,1*LPT GPIO/25PIN ,1*Linein, 1*line _out. |
Wireless | Support 802.11B/G/N protocol WIFI+Bluetooth and 3G/4G Module |
Network | Onboard Intel i211 Gigabit Network Connection 10/100Mbps/1000Mbps BaseT LAN |
Size | 23.6*14.2*6.3cm |
Adaptor | DC 100-240V AC /50-60Hz 12V--5A |
OS | Windows&Liunx |
N.T | 1.8KG |
G.T | 2.4KG |
