Intel®Processor N-series N100 processor ( i3 -N305 optional ).
1*DDR5 SODIMM，4800MT/s，32GB.
2*HDMI+1*EDP.
2*USB3.2Gen2，4*USB2.0.
1*M.2_SSD(NVME/NGFF) ，1*M.2 WIFI，1*4G/WIFI.
2*COM（RS232/RS485），4*Intel i226 2.5G network card ，1*8 GPIO channels.
Specs | |
CPU | CPU: Onboard Intel®Processor N-series N100 4cores 4 threads ,max 3.4GHZ ,6MB Cache |
RAM | 1*DDR5SODIMM，4800MT/s，8G/16G/32GB (optional) |
HDD | 64G~2TB SSD/500G/1TB/2TB HDD |
Graphic card | Intel® UHD Graphics |
BOIS | AMI BIOS,ACPI supported |
LAN | 4*Intel i226 2.5G network card |
Audio | Intel High Definition Audio and USB Audio and HID |
Storage | 1*SATA III ,1*M.2_SSD (NVME/NGFF ) SSD&SATA HDD |
Display port | 2*HDMI ports,max support 4096 x 2160@60Hz |

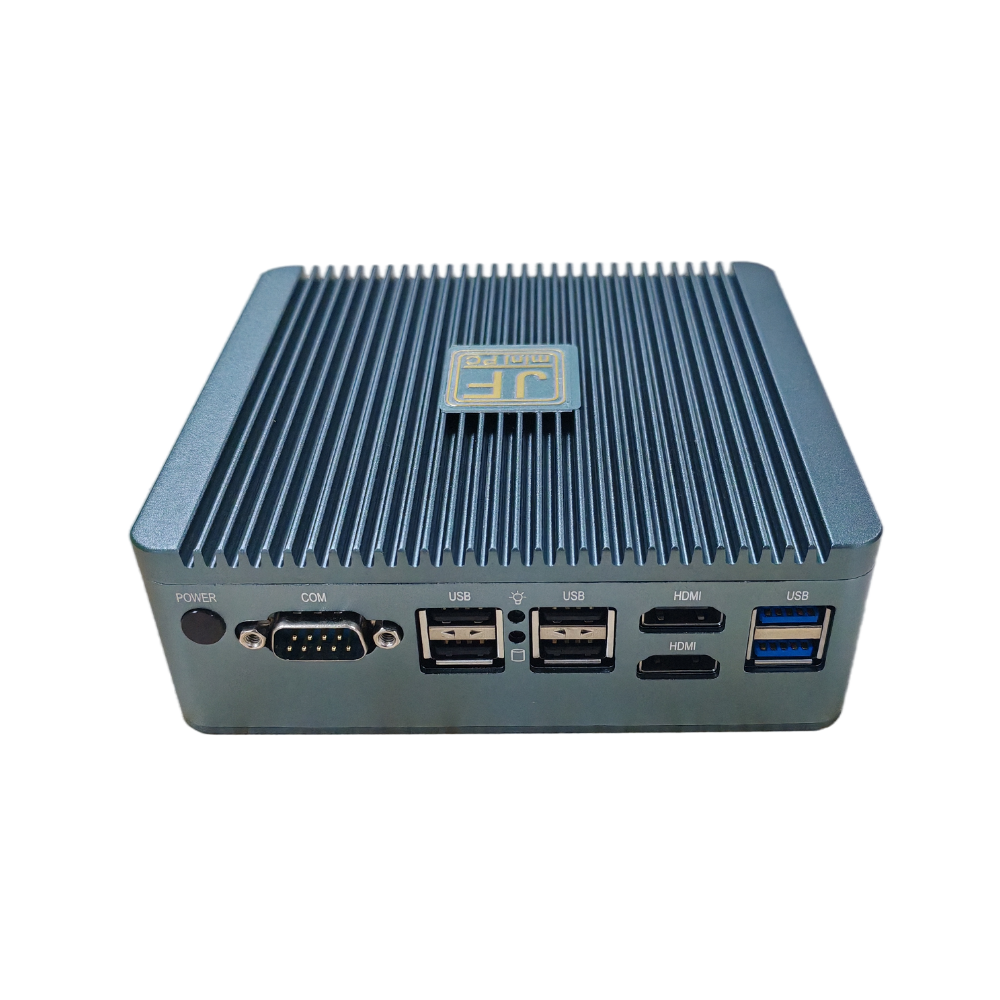

Front I/O | USB3.2 Gen2 2 ,USB 2.04, 2* HDMI ,1* COM2 ports (rs232/rs485) ,1*power button |

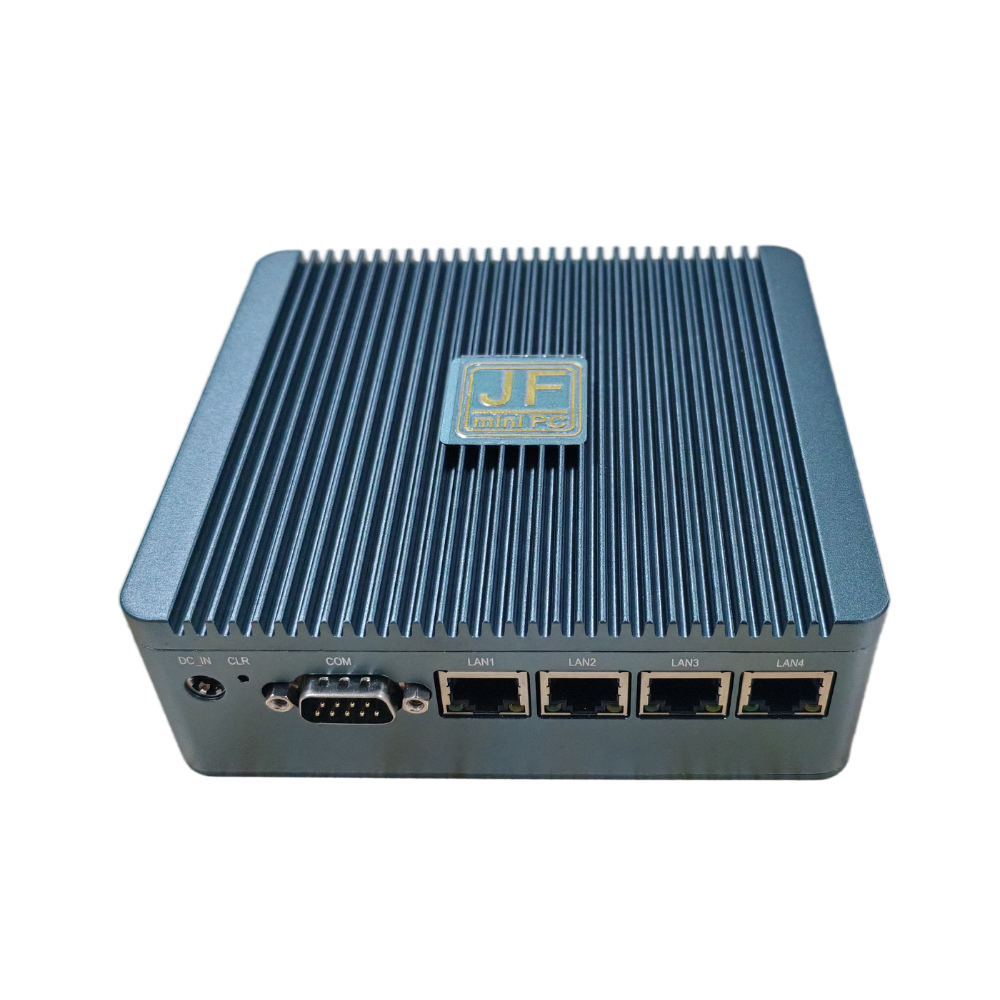

Back I/O | 1*COM 1(RS232) ,1*CLR_CMOS , 4*Intel i226 2.5G ,1*DC IN 12V |
Board I/O | 2**COM_2JP1/2 Jumping Hat ;1 GPIO pin (8 GPIO channels);1 F_PANEL pin;1 EDP pin;1 JP6 jump cap;1 JP3 jump cap;1 SATA socket;1 SATA_PWR socket;1 SYS-FAN socket |
Work temperature | -20℃~60℃ |
Humidity | 0%~95% relative humidity, no condensation |
Adaptor | DC 100-240V AC /50-60Hz 12V--3A |
OS | Windows&Linux |
Power supply | DC 12V/3A |
Size | 13.6*12.6*4.7cm |
