JFNK02-2162
JF
Processor | CPU | Rockchip RK3568 Cortex-A55 up to 2.0GHz |
Cores/Threads | 4/4 | |
Frequency | 2.0 GHz | |
Memory | Type | onboard |
Max. Capacity | 2GB (1G/2G/4G) DDR4 | |
Display | HDMI2.0 | 1x HDMI 2.0（MAX：3840 x 2160@60Hz） |
VGA | 1x VGA （Max：1920 x 1080@60Hz） | |
GPU | ARM Mali-G52 GPU | |
Storage | Type | Onboard 8G/16G/32G/64G eMMC |
M.2 | 1x M.2 2280 SATA SSD (support Expansion） | |
Ethernet | Controller | 1x RTL8111H 10/100/1000 |
WIFI | Onboard WIFI+BT (Optional ) | |
USB | I/O | 2x USB3.0 + 4x USB2.0 |

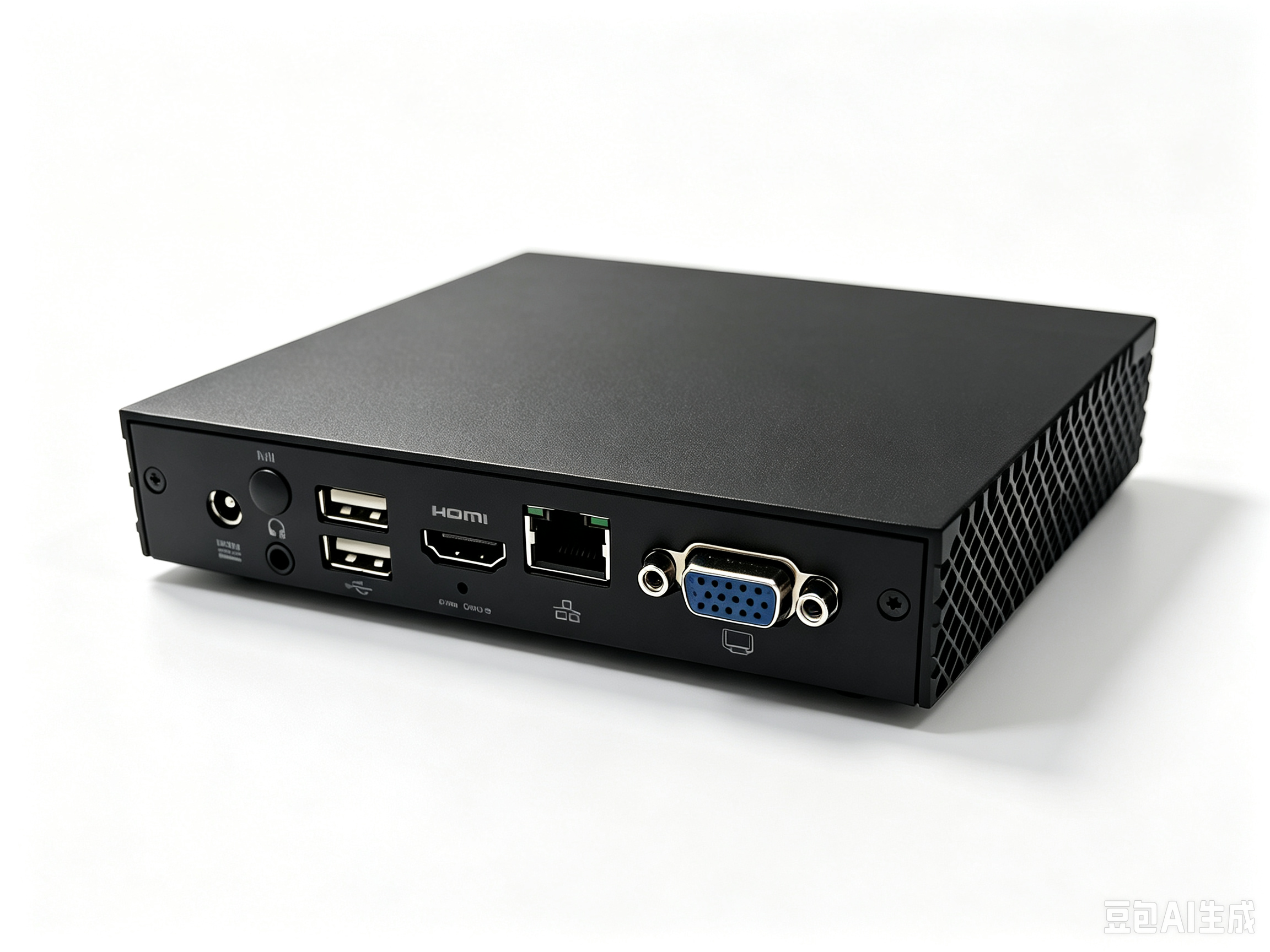

I/O | Rear Panel | 1x DC_IN ，12V |
1x HDMI 2.0 + 1x VGA ( Co LAY 1LAN) | ||

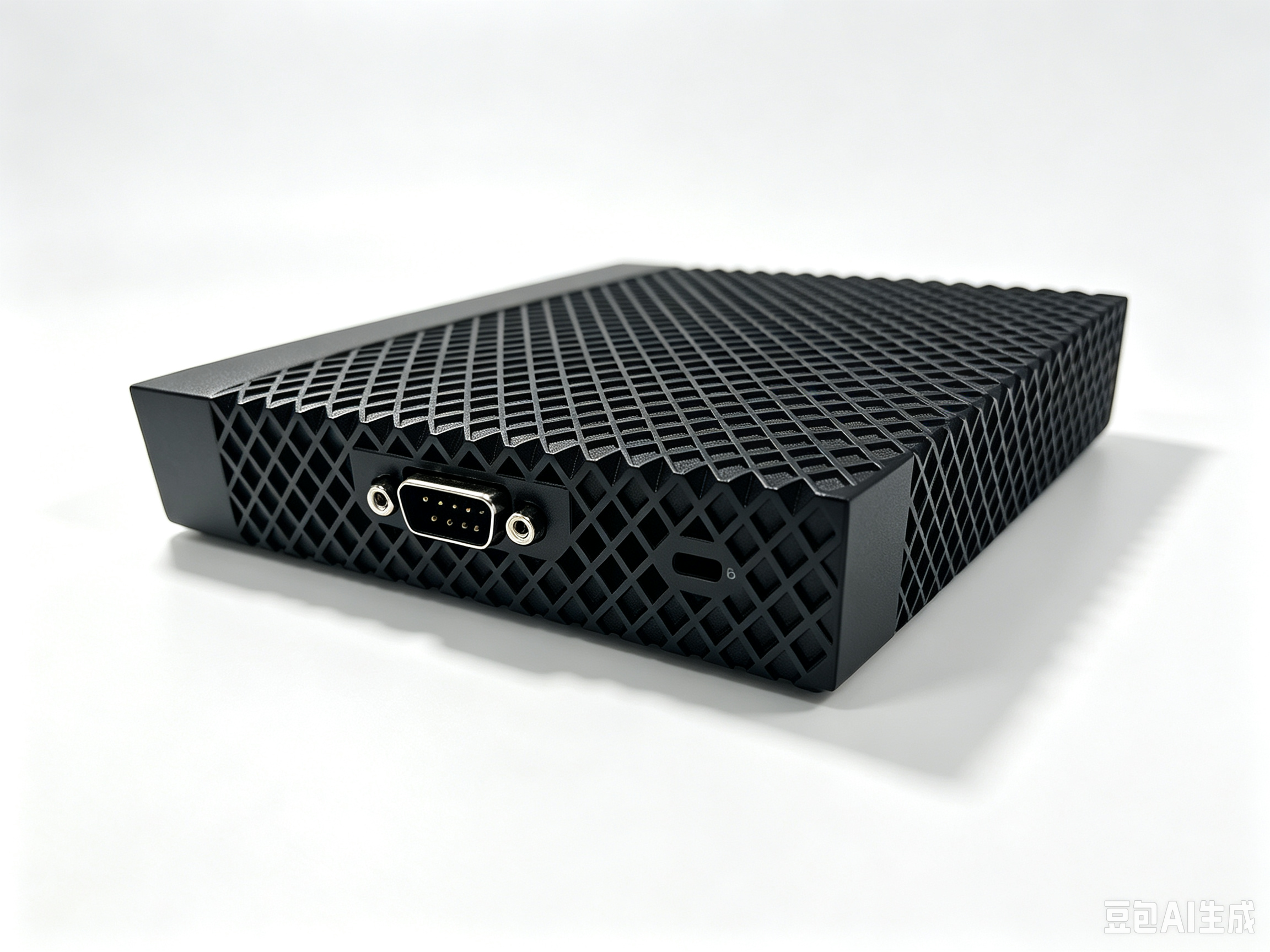

1x RS232 （Optional） | ||
2x USB2.0 | ||
1x RJ45 | ||
1x Reset | ||
1x WIFI ANNT | ||

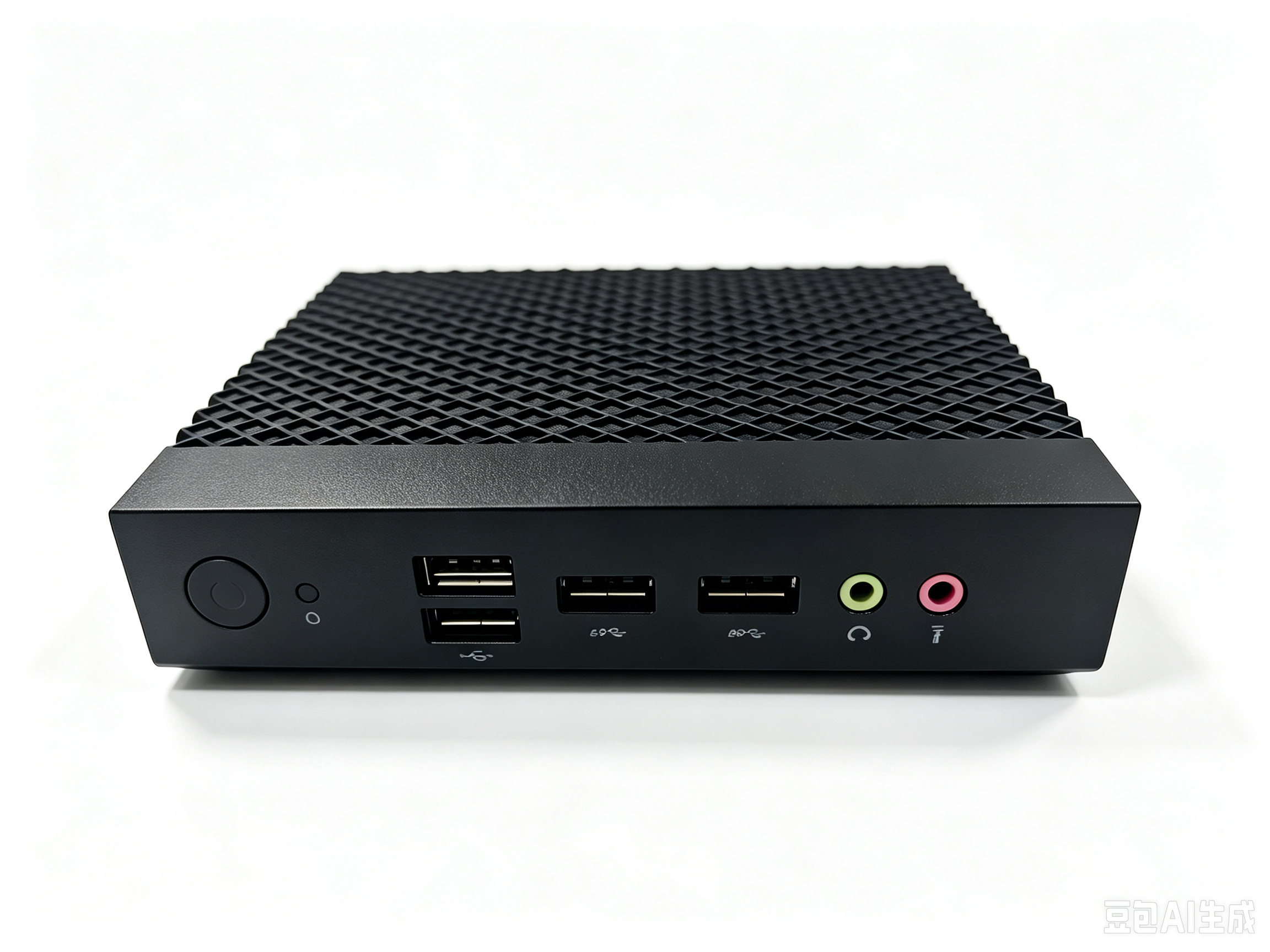

Front Panel | 1x Power Switch | |
2x USB 2.0 | ||
2x USB 3.0 | ||
1x Audio+ 1x Mic( 3.5mm) | ||
Functions | Auto Power On、Wake On LAN/PXE | |
OS | Linux(Debian10.0/Andriod11/UOS/ubuntu18.04) | |
Power | DC_IN 12V 2A 24W | |
Environment | Operating Temp | -5~45 ℃ |
Storage Temp | -20~80 ℃ | |
Dimension | Construction | Meta+plastic（black） |
LxWxH | 140 x 125 x 27mm | |
Cooling | Fan |
Model | CPU | RAM | EMMC | WIFI | Display | LAN | USB | COM |
JFNK02-2160 | RK3568 | 2G | 8G | NA | VGA+HDMI | 1 LAN | 6 USB | 1 |
JFNK02-2161 | RK3568 | 2G | 16G | NA | VGA+HDMI | 1 LAN | 6 USB | 1 |
JFNK02-2162 | RK3568 | 4G | 32G | NA | VGA+HDMI | 1 LAN | 6 USB | 1 |
