JFTCJ1900FX
JF
Hardware | ||
Processor | Intel(R) Celeron(R) CPU J1900 @ 2.0GHz，quad core | |
Operation system | WES7/WIN10/Linux | |
Graphic card | ||
Graphic card | Intel® HD Graphics | |
Resolution | 1920×1200，32position ，60Hz | |
Storage | ||
RAM | DDR3 2GB/4GB/8GB | |
SSD | mSATA 4GB/8GB/16GB/32GB/64GB/128GB | |
Sound card | ||
Sound card | HD multi-channel sound card | |
Network | ||
Ethernet | 10/100/1000M adaptive | |
Wifi | 802.11b/g/n（optional） | |

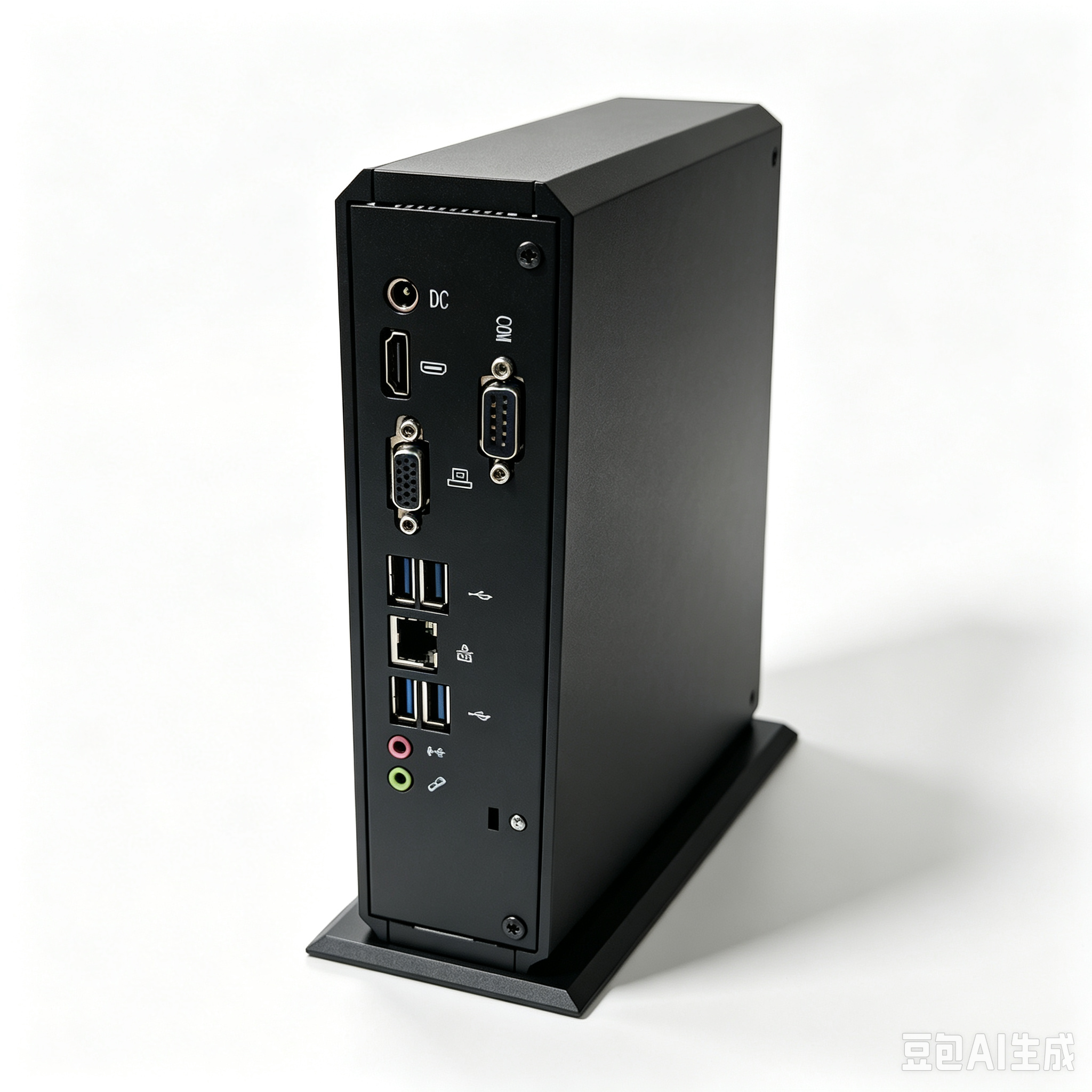

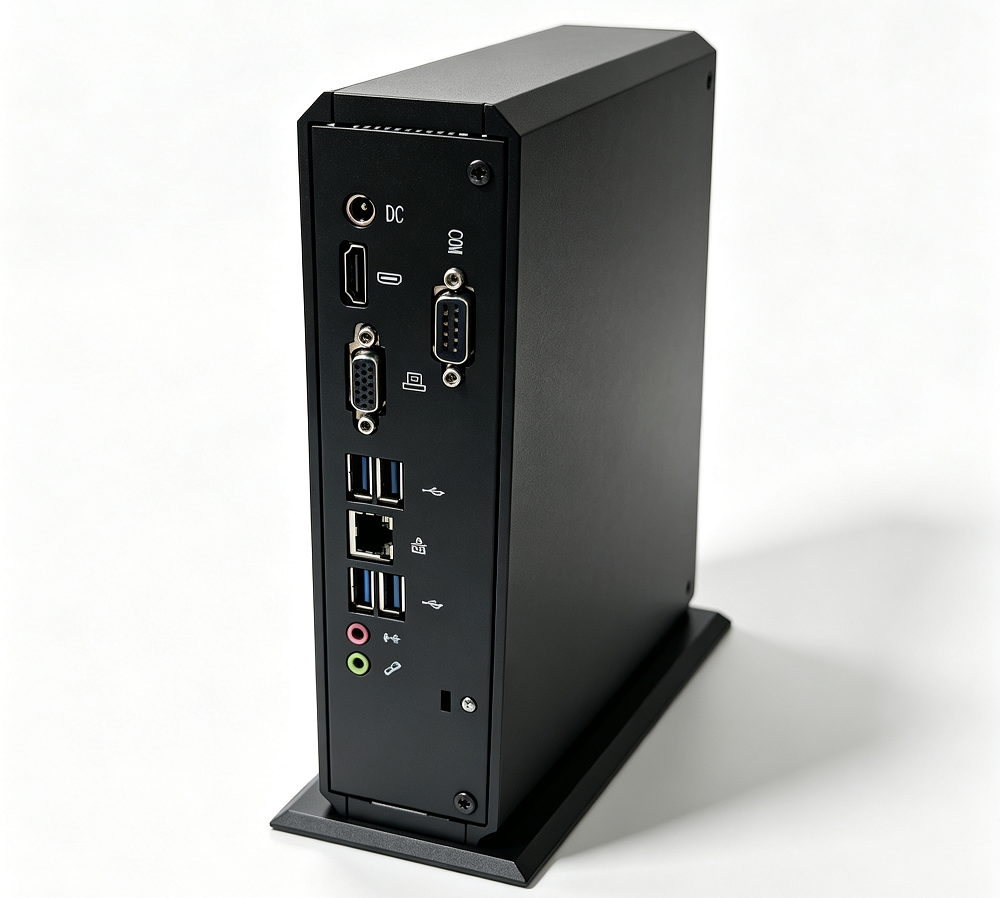

I/O ports | ||
Display port | 1*VGA + 1*HDMI | |
USB2.0 | 2pcs | |
RJ45 Port | 1pcs，Gigabit ethernet port with status indicator light | |
DC | 1pcs，Inner diameter 2.5mm,outer diameter 5.5mm | |
COM | 1pcs | |
Safety key | 1pcs | |
Front | ||
USB 2.0 | 4pcs USB （1*USB3.0 +3*USB2.0） | |
Power button | 1pcs | |
Audio input | 1pcs , MIC audio input port, diameter 3.5mm | |
Audio output | Dual channel audio output port, diameter 3.5mm, | |
Appearance | ||
host size | 170mm×127mm×37mm | |
Overall size | 181mm×127mm×37mm | |
N. W | Blow 1.0Kg | |
Power | ||
Input | 100-240 V AC/50-60Hz | |
Output | DC 12V/3A | |
Power Consumption | ||
TDP | 15W | |
Operating environment | ||
Cooling | Fanless | |
Voice | 0db | |
Temperature | Vertical 0-40 degrees Celsius | |
Humidity | 10%-85%，Non condensing | |
