JF12-I7
JF
Processor | CPU | Support Intel® 12、13th Gen Alder Lake-S CPU TDP≤65W |
chipset | H610 | |
Memory | Type | 2x SO-DIMM DDR4 3200/2933/2666/2400MHz 4G/8G/16G/32G |
Max | 64GB | |
display | GPU | Intel® HD Graphics 710/730/750 |
Rear output interface | 1x HDMI2.0（Max. 4096 x 2160@60Hz） 1x DP1.2++（Max. 4096 x 2160@60Hz)(Can share LAY HDMi interface） 1x VGA （Max.1920 x 1200 @60Hz）(Can share LAY DP interface） | |
Network | Control chip | LAN1： Intel RTL8111H 1G gigabit self adaptive network card LAN2： Intel i225/226 2.5G Gigabit (Played with USB) support network wake-up and PCIe boot |
USB ports | I/O | Rear：2x USB2.0+2x USB3.2+2x USB2.0（with LAN I225/I226 share lay） Front ：2x USB3.2 +1x USB Type-C |
Storage | SATA | 1x SATA3.0(2.5”HDD/SSD) |
M.2 | 1x M.2 2280，support SSD（Compatible with PCIe 4X signal and SATA signal） | |
Sound interface | Control chip | Realtel ALC897 |
Extende interface | M.2 | 1x M.2 2230，support WIFI/BT 1x M.2 3052/42，support 4G/5G（support M.2 2242 SSD) |

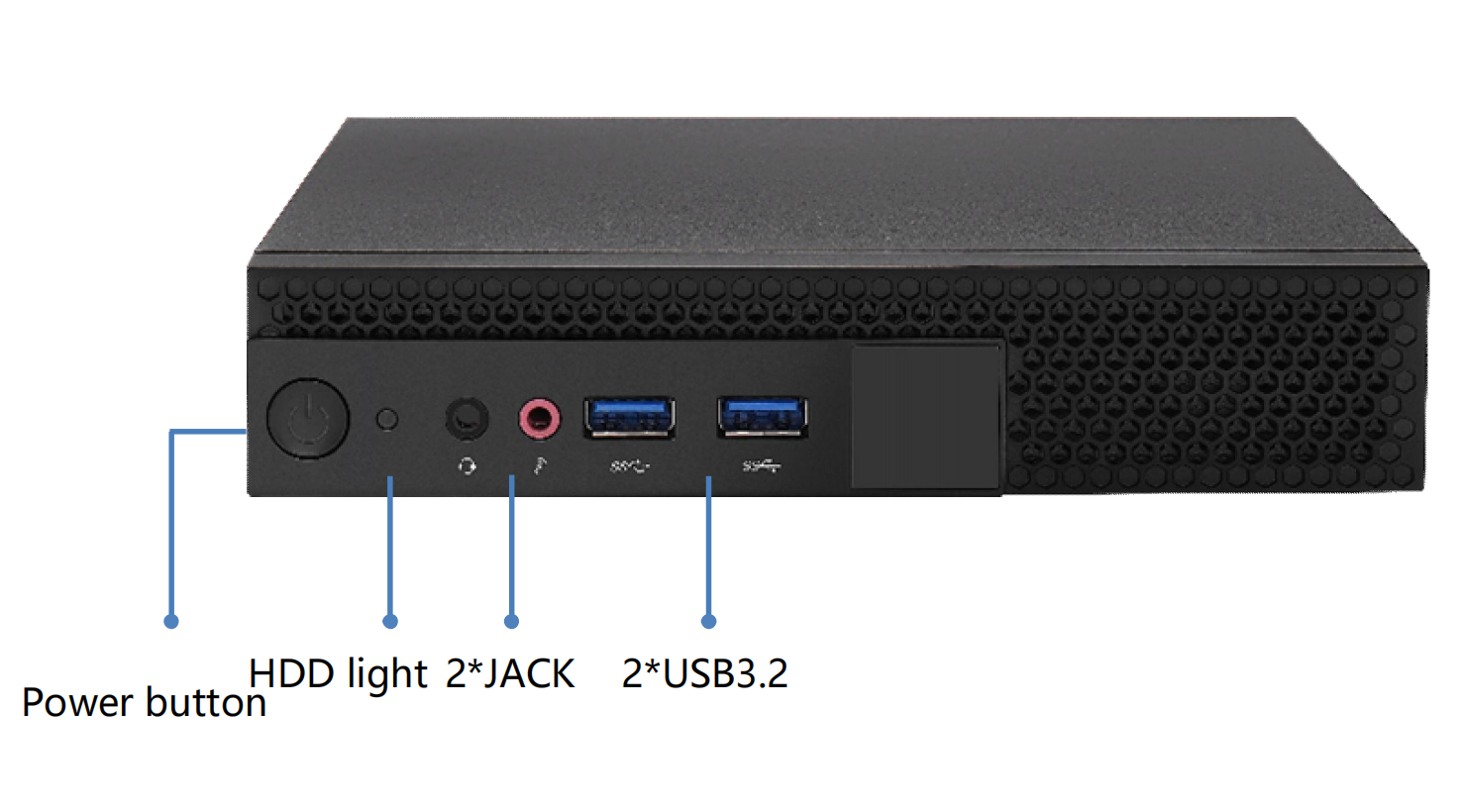

I/O interface | Front | 1x Switch button (including power indicator light ); 2x USB3.2 1x Audio+Mic (Audio supports 4-stage hearphone） |

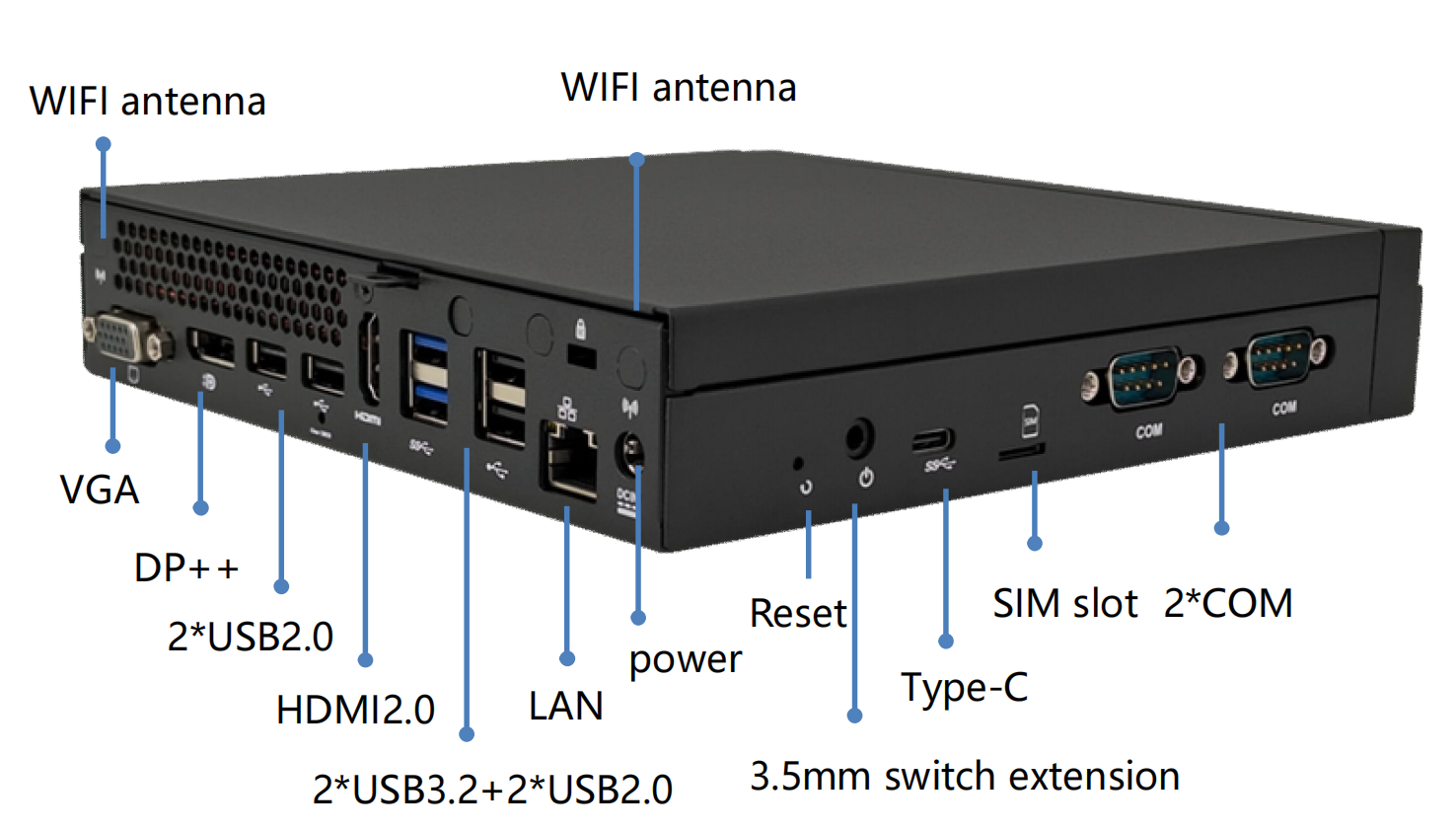

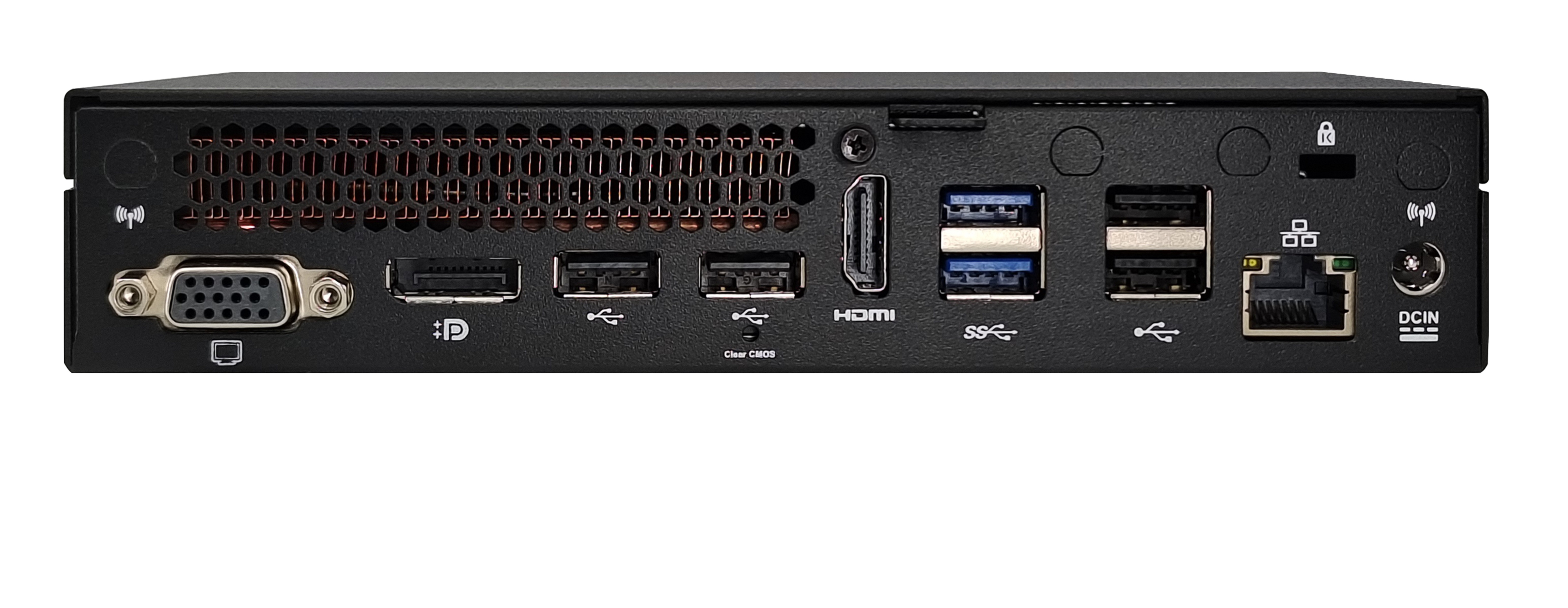

Rear | 1x DC_IN 12/19V power input 1x VGA+HDMI2.0+DP1.4 (Suppot three screes with the same display or different display） 2x USB3.2 2x USB2.0 2x USB2.0 ( Can Lay 1pcs LAN) 1x RJ45 ，supports 1000M 2xCOM (1*RS232+1*RS232(RS485 optional） 1x USB Type-C (2.0 signal） 1x 3.5mm power on/off external interface 1x Reset (System restart button ） 1x SIM slot（Support 4G/5G module） | |
Software functions | Watch Dog | support |
Wake-on-LAN | Support | |
Operation system | Windows10/11；Linux | |
Power supply | adapter | DC_IN 19V 90W |
Application Environment | Operating temperature | 0～40°C（Relative humidity 5% ~ 90%） |
Storage temperature | -20～85°C（Relative humidity 5% ~ 90%） | |
Physical properties | Materials | Metal+Plastic |
Installation ways | Vertical placement of the base; Back hanging fixation | |

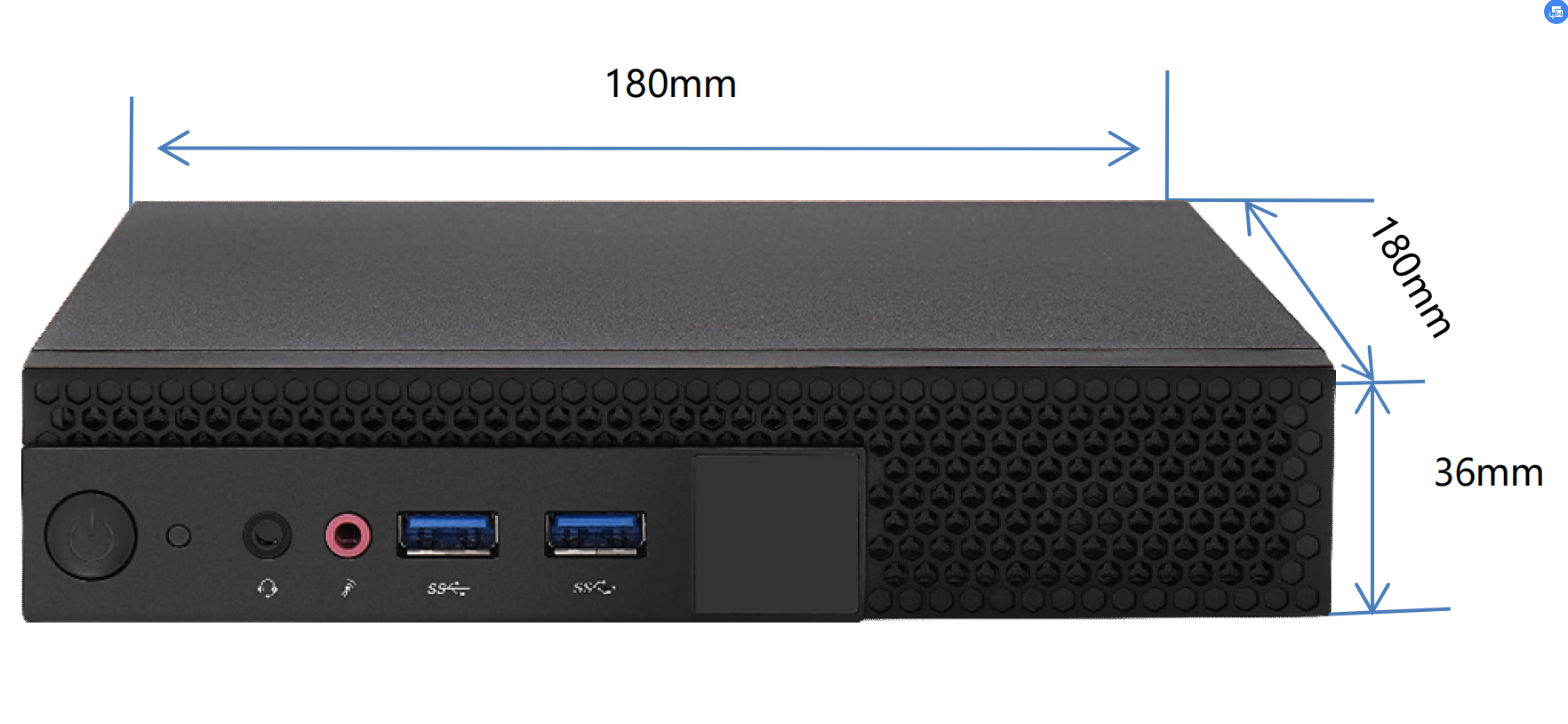

size | 180 x 180 x 36 mm | |
Fan | cooler | Copper tube&ball fan heat dissipation ,temperature control and speed regulation. |
Model | CPU | RAM | SSD | WIFI | Display | Net | USB | COM |
JF12-PT | G7400 | NA | NA | NA | VGA+HDMI+DP | 1 LAN | 8 USB+1Type-C | 2COM |
JF12-I3 | 12100 | NA | NA | NA | VGA+HDMI+DP | 1 LAN | 8 USB+1Type-C | 2COM |
JF12-I5 | 12400 | NA | NA | NA | VGA+HDMI+DP | 1 LAN | 8 USB+1Type-C | 2COM |
JF12-I7 | 12700 | NA | NA | NA | VGA+HDMI+DP | 1 LAN | 8 USB+1Type-C | 2COM |
