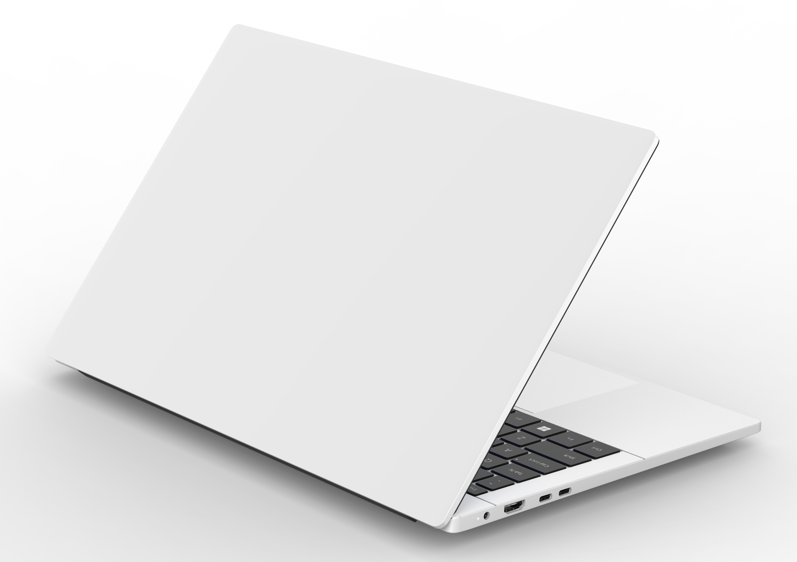

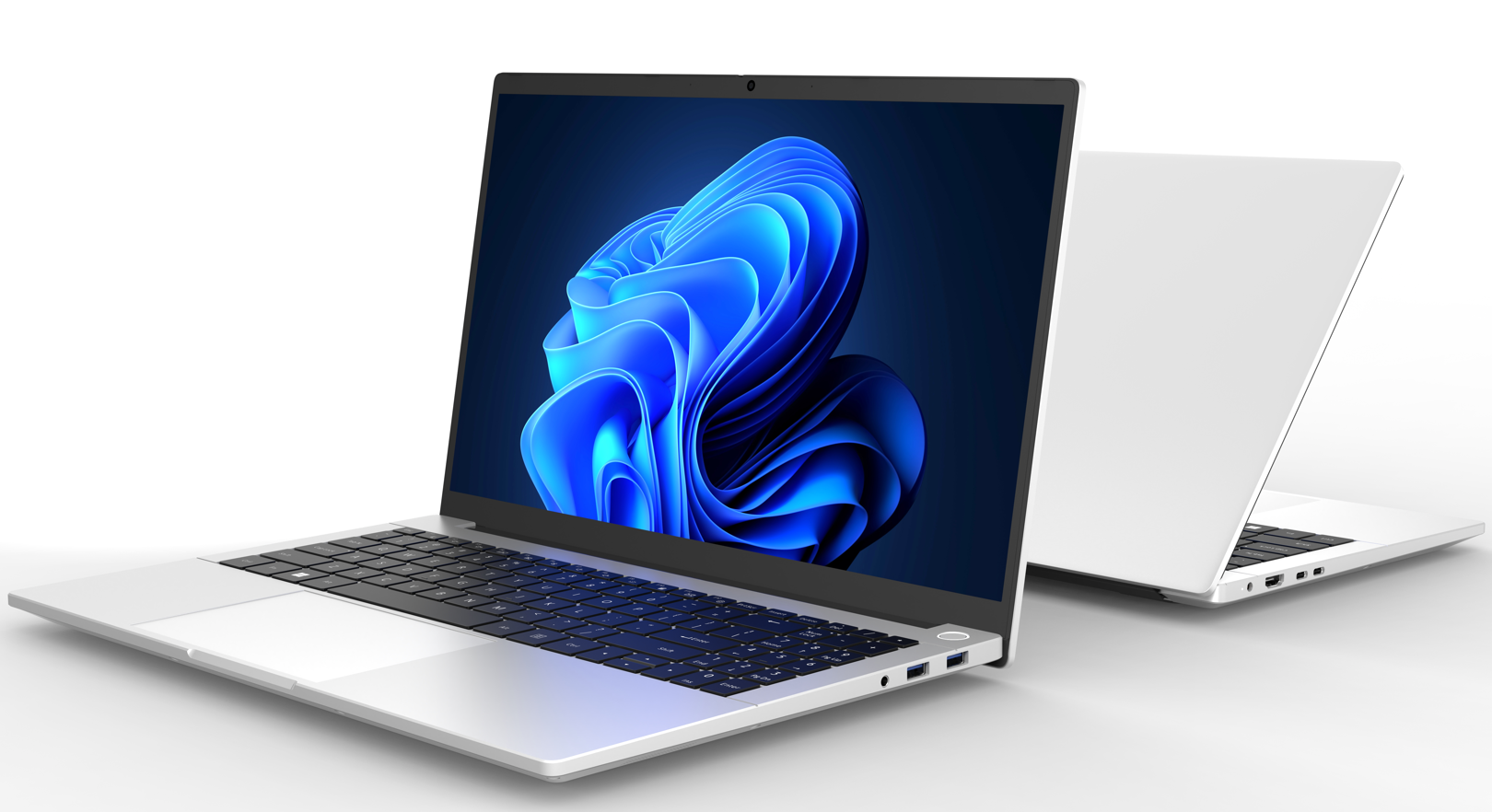

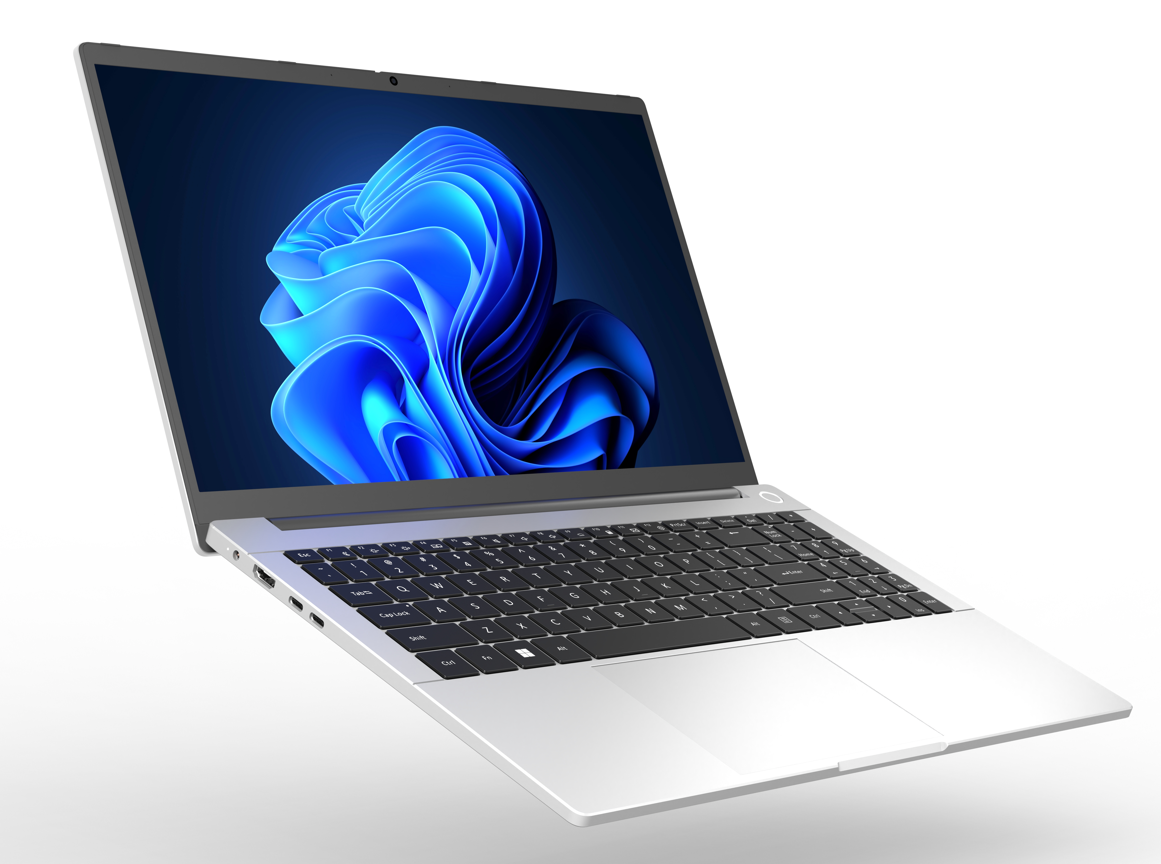

15.6inch AMD R9 5900HX mini Laptop

Product

Shell materials

A/D aluminum alloy+B PC+C plastic

Color

silver

Weight

AMD 5000 H series: 1.8KG±20g
AMD 5000 U series: 1.76KG±20g

Screen

screen size

15.6''

Screen resolution

15.6" FHD, 16:9,(slim bezel), 60Hz / 45%

Optional：15.6" FHD/QHD, 16:9,(slim bezel), 120Hz / 165Hz 100%

screen height

2.6~3.2mm

Biology

face recognition

N/A

Fingerprint recognition

N/A

Hardware

TDP:25W-45W

AMD Ryzen™ CPU

GPU

CPU cores

Threads

Max frequency

Basic frequency

Level 3 cache

R5 5600H

AMD Radeon™ Graphics

6

12

4.2 GHz

3.3 GHz

16MB

R7 5800H

AMD Radeon™ Graphics

8

16

4.4 GHz

3.2 GHz

16MB

R9 5900HX

AMD Radeon™ Graphics

8

16

4.6 GHz

3.3 GHz

16MB

AMD 5000 H series: Supports Fn+Q performance switching (Office mode: 35W, Balance mode: 45W, Performance mode: 55W)

TDP:15W-25W

R3 5400U

AMD Radeon™ Graphics

4

8

4.0 GHz

2.6 GHz

8MB

R5 5500U

AMD Radeon™ Graphics

6

12

4.0 GHz

2.1GHZ

8MB

R5 5600U

AMD Radeon™ Graphics

6

12

4.2 GHz

2.3 GHz

16MB

R5 5625U

AMD Radeon™ Graphics

6

12

4.3 GHz

2.3 GHz

16MB

R7 5700U

AMD Radeon™ Graphics

8

16

4.3 GHz

1.8 GHz

8MB

R7 5800U

AMD Radeon™ Graphics

8

16

4.4 GHz

1.9 GHz

16MB

R7 5825U

AMD Radeon™ Graphics

8

16

4.5 GHz

2.0 GHz

16MB

R7-7735HS

AMD Radeon™ 680M

8

16

4.75 GHz

3.2 GHz

16MB

R7-7840HS

AMD Radeon™ 780M

8

16

5.1 GHz

3.8 GHz

16MB

R7-8845HS

AMD Radeon™ 780M

8

16

5.1 GHz

3.8 GHz

16MB

Thermal module

AMD 5000 U seris:                   AMD 5000 H Seris:

RAM

Type

2* DDR4 SODIMM 3200MHz up to 32G/slot

SSD

Type

2* NVME M.2 2280 PCIE3 / Support SATA 3

Camera

Front

30W x1,MIC*1

Keyboard

Language

US/RU

Keyboard backlight

Default: Level 3 backlight support

Optional: No keyboard backlight

Touch pad

Type

Size: 128 x 84 mm, Maila: PC supports gesture operation

Voice

speaker

Build in two speakers, 1.5W/8Ω

MIC

Digital microphone support

Battery

Type

Lithium ion polymer

Capacity

3 strings of 50.5Wh,11.61V,4350mAh

LED indicator light

Power charging&battery indicator light

No charging
Power on: white
Sleep: Slow/steady breathing, flashing white
Shutdown: Off
Low battery level: flashing red
Charging: Red
Fully charged: green

I/O

Type-A

Default interface 1: USB Type A (USB2.0) @ x1 on the right side (optional; USB Type A (USB3.1 Gen1, 5GBps) @ right x1)
Interface 2: USB Type A (USB2.0) @ Right x1

Type-C

2*PCS

HDMI

HDMI 1.4 @left x1

earphone port

3.5mm Combo Audio @right x1

DC port

External: Ø 3.5mm, Internal: Ø 1.35mm @ Left x1

Safe

Type

TPM 2.0

Network

WIFI

WIFI type

M.2 2230

WIFI standard

Default：Wi-Fi 5 (802.11ac) 2.4GHz, 5GHz

Optional：Wi-Fi 6 (802.11ax) 2.4GHz, 5GHz, 6GHz

Bluetooth

version

Default：V4.2

Operation system

OS

Windows11/Linux

Stardard accessaries

Adapter

Stardard

AMD 5000 H series: Input 100-240V AC, 50/60Hz, Output 20V 5A, 100W
AMD 5000 U Series: Input 100-240V AC, 50/60Hz, Output 20V 3A, 60W
