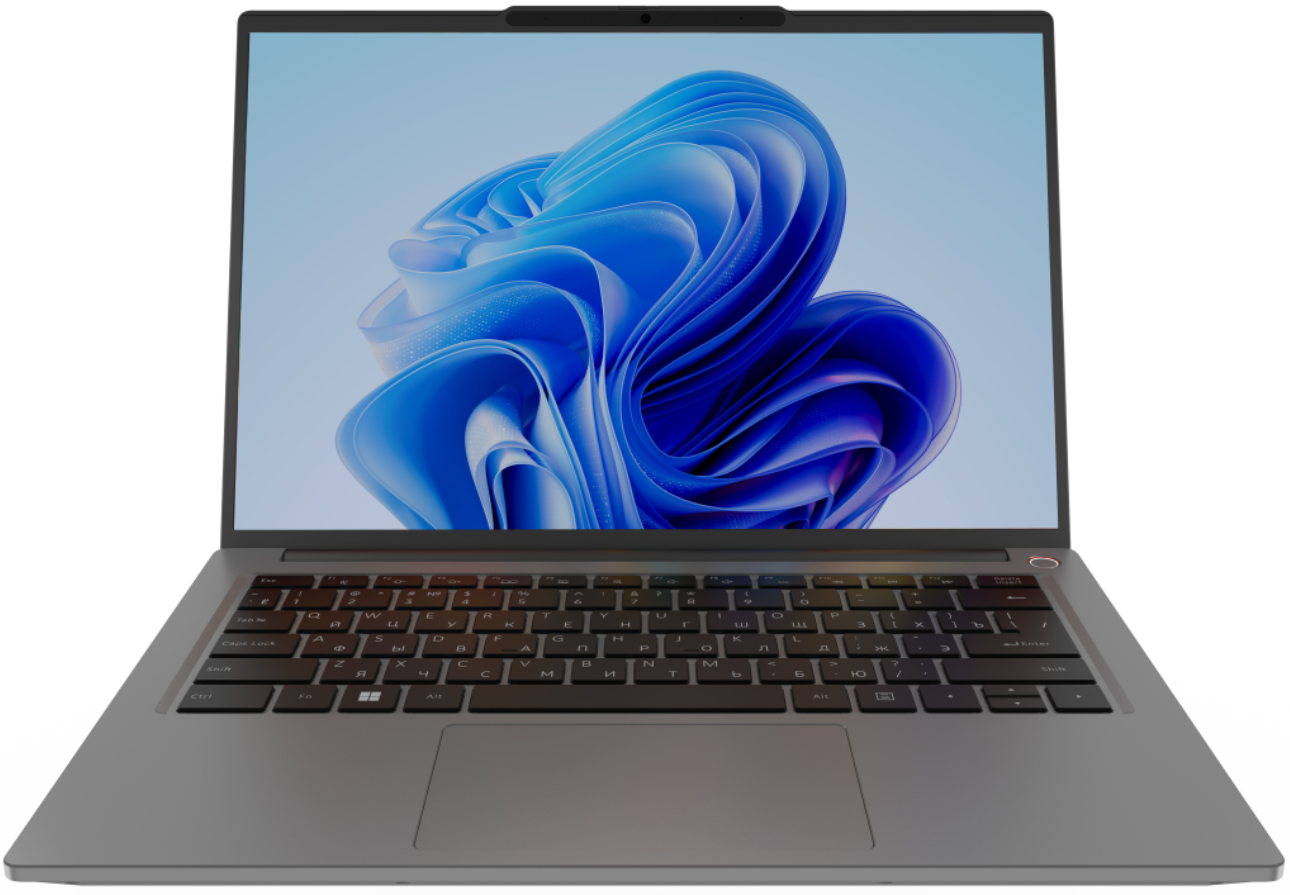

14inch AMD R5 7520H mini Laptop

Type

Details

Descriptions

Product Style

Model

JFUMPC140MG-R5 7520H

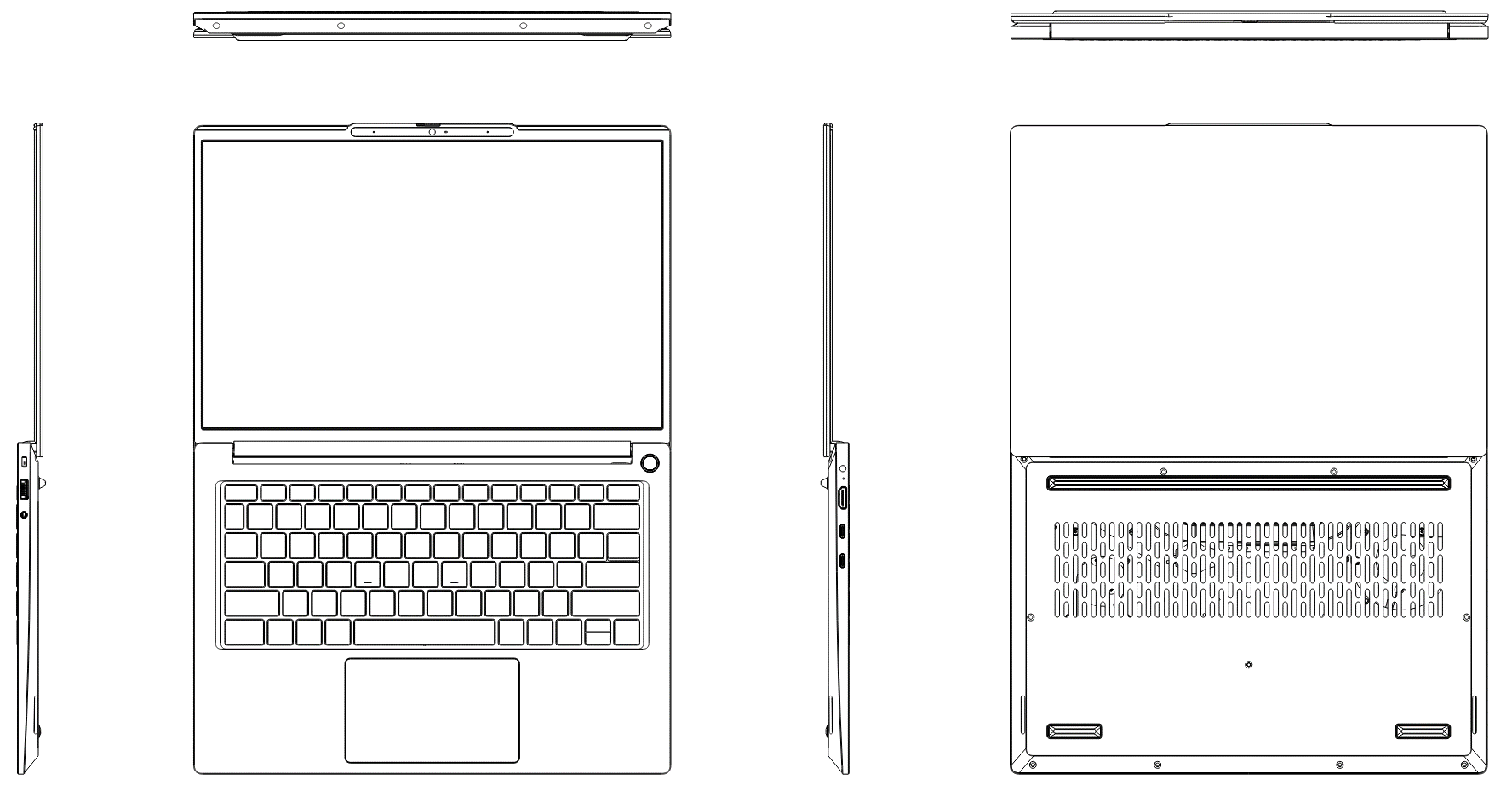

Dimensions

314mm x 219.55mm x 19.8mm

Shell Material

A aluminum alloyl + B/C/D Plastic

Product color

grey

Weight

1.5KG±20g

Display

Screen Size

14''

Screen Resolution

14" FHD/QHD, 16:10,(Narrow), 60HZ / 120Hz / 165Hz 100%

Panel thickness

2.4~3.2mm

Biometrics

Fingerprint

Not supported

Hardware

TDP:25W

AMD Ryzen™ CPU

GPU

CPU Cores

Threads

Max. Boost Clock

Base Clock

L3 Cache

AMD Ryzen™ 5 4600H

AMD Radeon™ Graphics

6

12

4.0GHz

3.0GHz

8MB

AMD Ryzen™ 5 5500H

AMD Radeon™ Graphics

4

8

4.2GHz

3.3GHz

8MB

AMD Ryzen™ 5 5600H

AMD Radeon™ Graphics

6

12

4.2GHz

3.3GHz

16MB

AMD Ryzen™ 5 7520H

AMD Radeon™ Graphics

4

8

4.2GHz

3.3GHz

8MB

AMD Ryzen™ 7 4800H

AMD Radeon™ Graphics

8

16

4.2GHz

2.9GHz

8MB

AMD Ryzen™ 7 4800HS

AMD Radeon™ Graphics

8

16

4.2GHz

2.9GHz

8MB

AMD Ryzen™ 7 5800H

AMD Radeon™ Graphics

8

16

4.4GHz

3.2GHz

16MB

AMD Ryzen™ 9 4900H

AMD Radeon™ Graphics

8

16

4.4GHz

3.3GHz

8MB

AMD Ryzen™ 9 4900HS

AMD Radeon™ Graphics

8

16

4.3GHz

3.0GHz

8MB

AMD Ryzen™ 9 5900HX

AMD Radeon™ Graphics

8

16

4.6GHz

3.3GHz

16MB

AMD Ryzen™ 9 5980HX

AMD Radeon™ Graphics

8

16

4.8GHz

3.3GHz

16MB

TDP:15W

AMD Ryzen™ 3 4300U

AMD Radeon™ Graphics

4

4

3.7GHz

2.7GHz

4MB

AMD Ryzen™ 3 5300U

AMD Radeon™ Graphics

4

8

3.8GHz

2.6GHz

4MB

AMD Ryzen™ 3 5400U

AMD Radeon™ Graphics

4

8

4.0GHz

2.6GHz

8MB

AMD Ryzen™ 3 5425U

AMD Radeon™ Graphics

4

8

4.1GHz

2.7GHz

8MB

AMD Ryzen™ 3 7330U

AMD Radeon™ Graphics

4

8

4.3GHz

2.3GHz

8MB

AMD Ryzen™ 5 4500U

AMD Radeon™ Graphics

6

6

4.0GHz

2.3GHz

8MB

AMD Ryzen™ 5 4600U

AMD Radeon™ Graphics

6

12

4.0GHz

2.1GHz

8MB

AMD Ryzen™ 5 5500U

AMD Radeon™ Graphics

6

12

4.0GHz

2.1GHz

8MB

AMD Ryzen™ 5 5560U

AMD Radeon™ Graphics

6

12

4.0GHz

2.3GHz

8MB

AMD Ryzen™ 5 5625U

AMD Radeon™ Graphics

6

12

4.3GHz

2.3GHz

16MB

AMD Ryzen™ 5 7430U

AMD Radeon™ Graphics

6

12

4.3GHz

2.3GHz

16MB

AMD Ryzen™ 5 7530U

AMD Radeon™ Graphics

6

12

4.5GHz

2.0GHz

16MB

AMD Ryzen™ 7 4700U

AMD Radeon™ Graphics

8

8

4.1GHz

2.0GHz

8MB

AMD Ryzen™ 7 4800U

AMD Radeon™ Graphics

8

16

4.2GHz

1.8GHz

8MB

AMD Ryzen™ 7 5700U

AMD Radeon™ Graphics

8

16

4.3GHz

1.8GHz

8MB

AMD Ryzen™ 7 5800U

AMD Radeon™ Graphics

8

16

4.4GHz

1.9GHz

16MB

AMD Ryzen™ 7 5825U

AMD Radeon™ Graphics

8

16

4.5GHz

2.0GHz

16MB

AMD Ryzen™ 7 7730U

AMD Radeon™ Graphics

8

16

4.5GHz

2.0GHz

16MB

AMD Ryzen™ 5 5600U

AMD Radeon™ Graphics

6

12

4.2GHz

2.3GHz

16MB

Memory

Type

2* DDR4 SODIMM 3200MHz up to 32G/slot

Storage

Type

2* NVME M.2 2280 PCIE3 / Support SATA 3

Camera

Front

HD webcam with D-MIC*1, 0.3MP(30W) / 1MP(100W) / 2MP(200W)

Keyboard

Keyboard Language

US

Keyboard Backlit

Level 3 backlight support

Touch Pad

Type

Outline: 114 x 68 mm, Mylar: PC+Painting

Audio

Speaker

Build-in 2 speakers, 2W/each 4Ω

Microphone

Digitial Microphone support

Battery

Cell

Lithium-ion polymer

Capacity

3 cells 60Wh,11.61V,5151mAh

LEDs indicator

Power Charging& Battery indicator

No charging
Power ON: White
Suspend: Whie breath Slow / Smooth, Blinking White
Power Off: OFF
Battery Low: Red flash
Charging: Red
Full Charge: Green

IO Port

MB IO

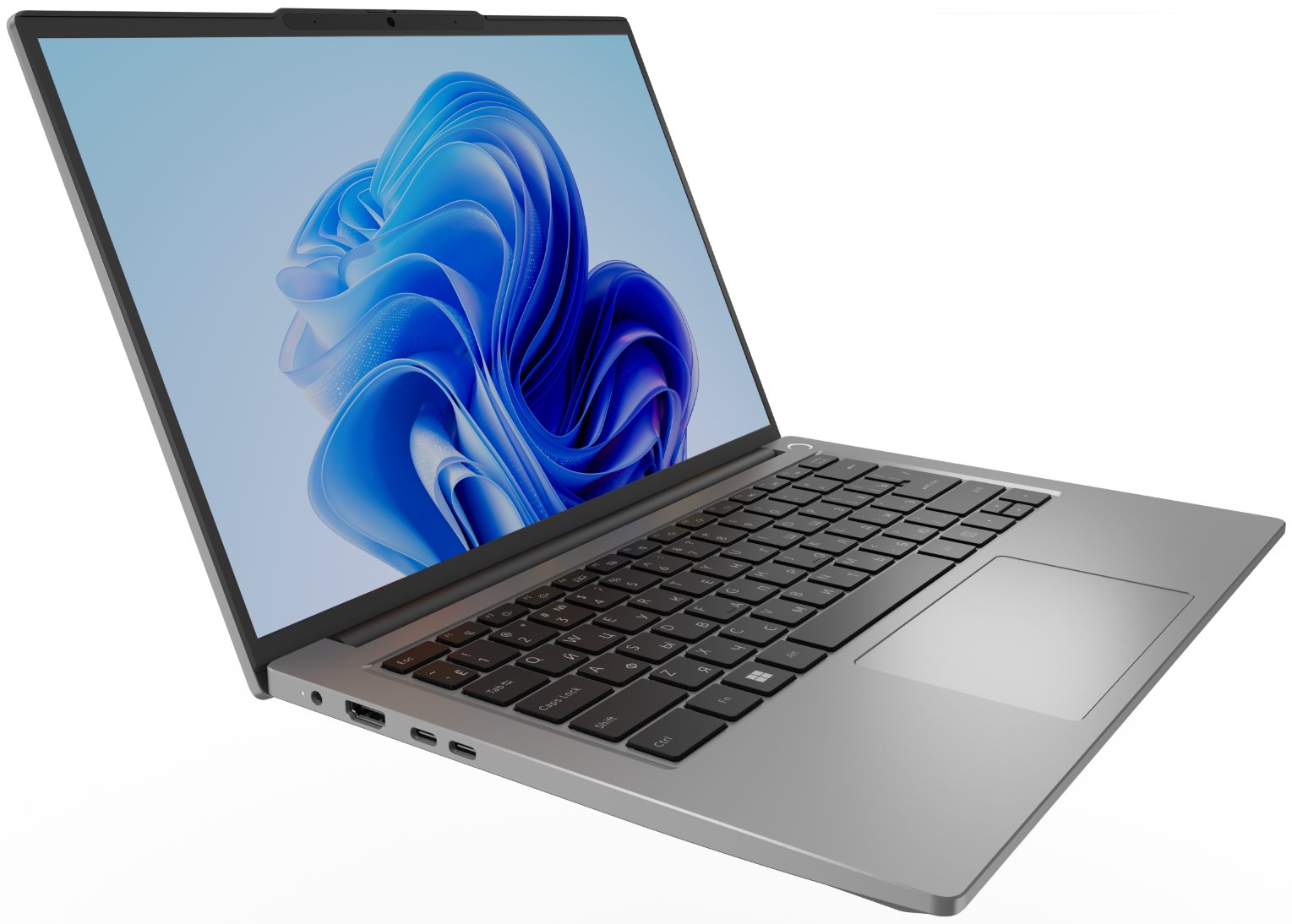

Left IO

Port1: USB Type C (USB2.0)(Date Transfer only) @Left side x1
Port2: USB Type C (USB3.2 Gen1,5GBps)(PD3.0/DP1.4/Date Transfer) @Left side x1
Port3: HDMI 1.4 @Left side x1
Port4: DC Jack Outside:Ø3.5mm,Inside:Ø1.35mm @Left side x1

DB IO

Default DB

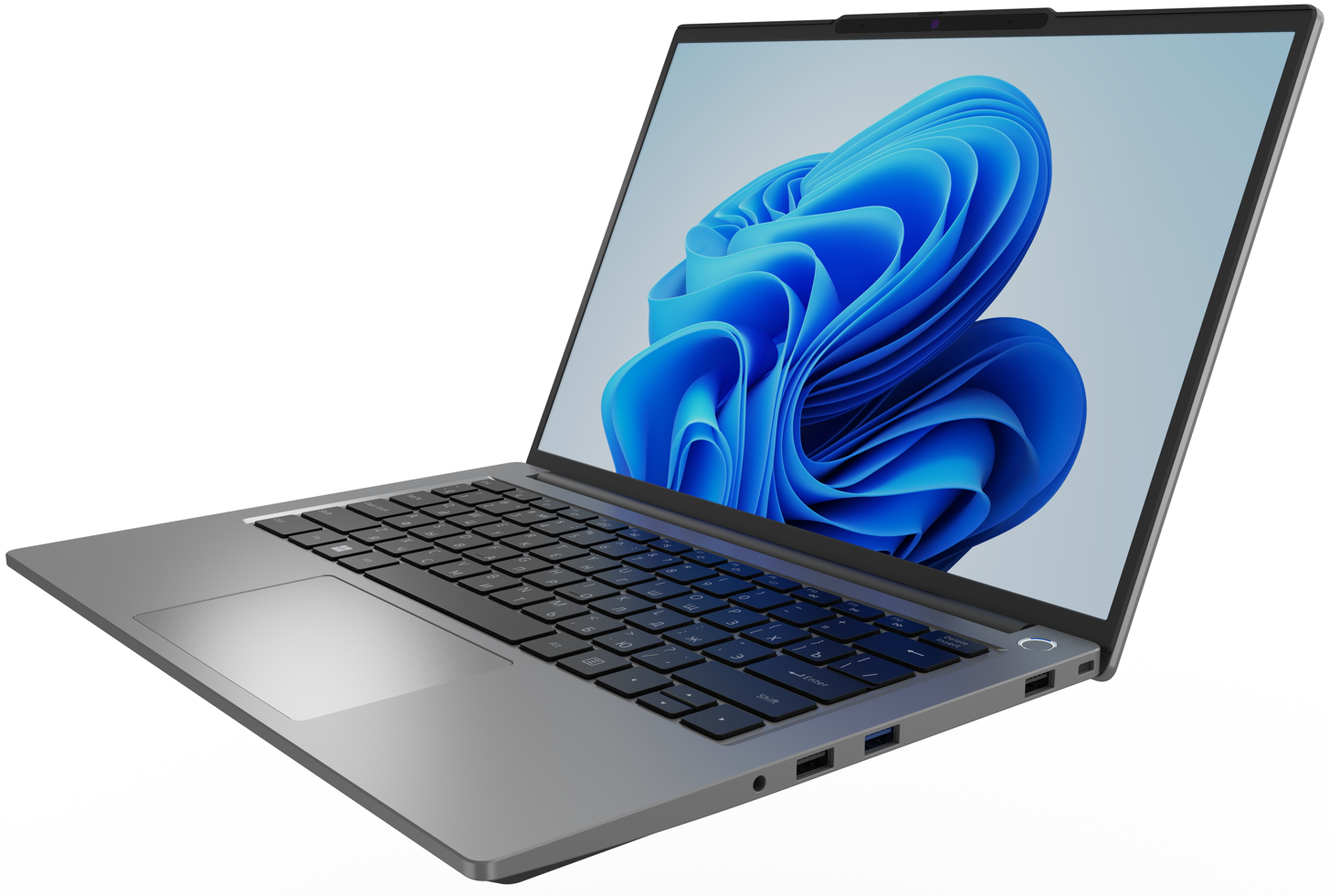

USB IO

Port1: USB Type A (USB2.0) @Right side x1
Port2: USB Type A (USB3.1 Gen1,5GBps) @Right side x1
Port3: USB Type A (USB2.0) @Right side x1
Port4: 3.5mm Combo Audio @Right side x1

Optional DB

RJ45 IO

Port1: USB Type A (USB2.0) @Right side x1
Port2: RJ45 1Gbps @Right side x1
Port3: USB Type A (USB2.0) @Right side x1
Port4: 3.5mm Combo Audio @Right side x1

Anti-theft lock

Kensington lock,Physical lock connector @Right side x1

Security

Type

fTPM 2.0

Network Connections

WIFI

WIFI model

M.2 2230

WIFI Standard

Default：Wi-Fi 5 (802.11ac) 2.4GHz, 5GHz

Optional：Wi-Fi 6 (802.11ax) 2.4GHz, 5GHz, 6GHz

Bluetooth

Version

TBD

OS

Operating System

Windows11/Linux

Standard Accessories

Power adapter

Standard Configuration

input 100~240V AC, 50/60Hz Universal, 20V*3.25A, 65W
